7

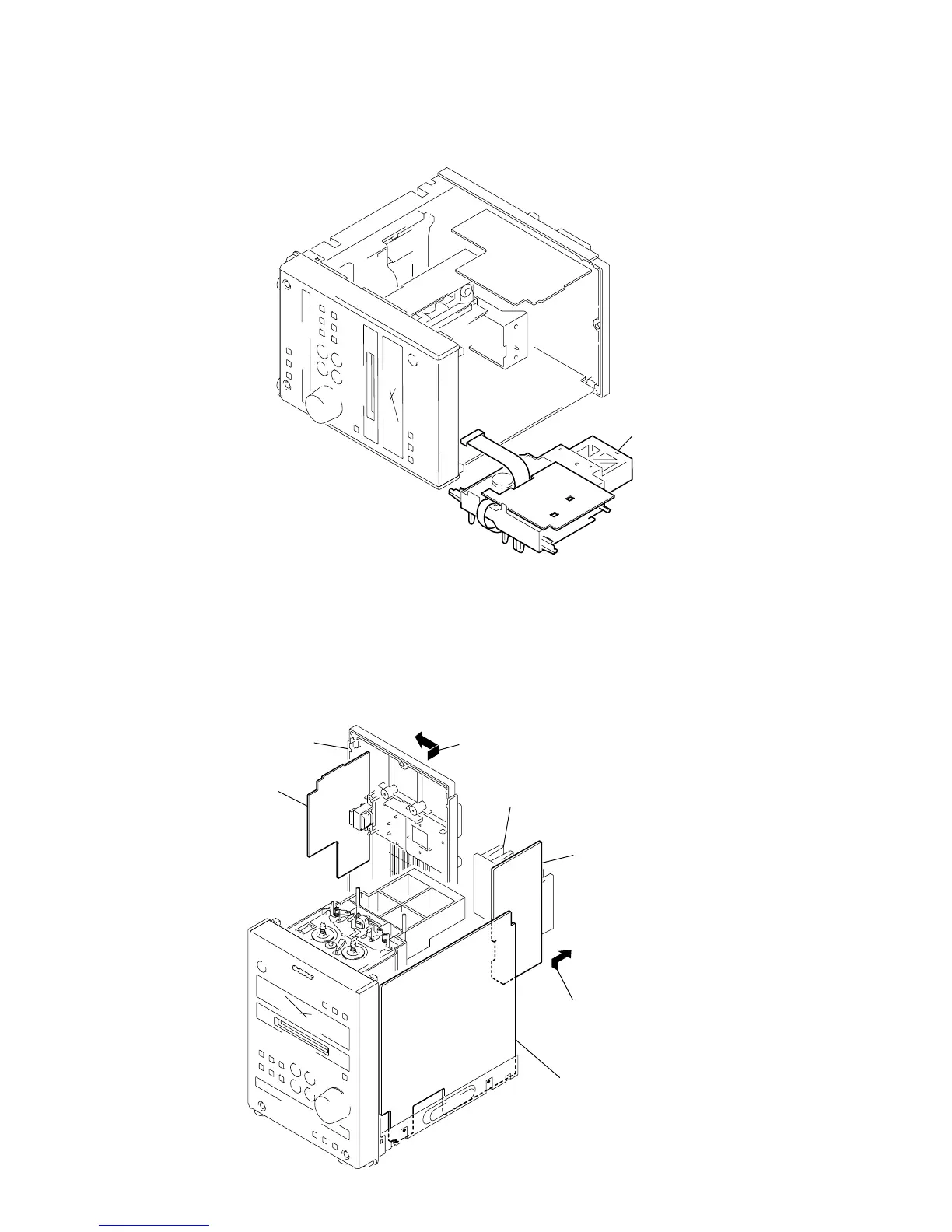

SERVICE POSITION OF THE POWER BOARD
SERVICE POSITION OF THE CASSETTE MECHANISM DECK
Cassette mechanism dec
k
1 Remove the TRANS board together with back panel
(referring to [MAIN Board] ) and move it in
the direction of the arrow.
2 Remove the AMP board together with
heat sink (referring to [POWER TRANSFORMER,
AMP Board], exploded views) and move it in the
direction of the arrow.
Back panel
TRANS board
MAIN board
Heat sink
AMP board
