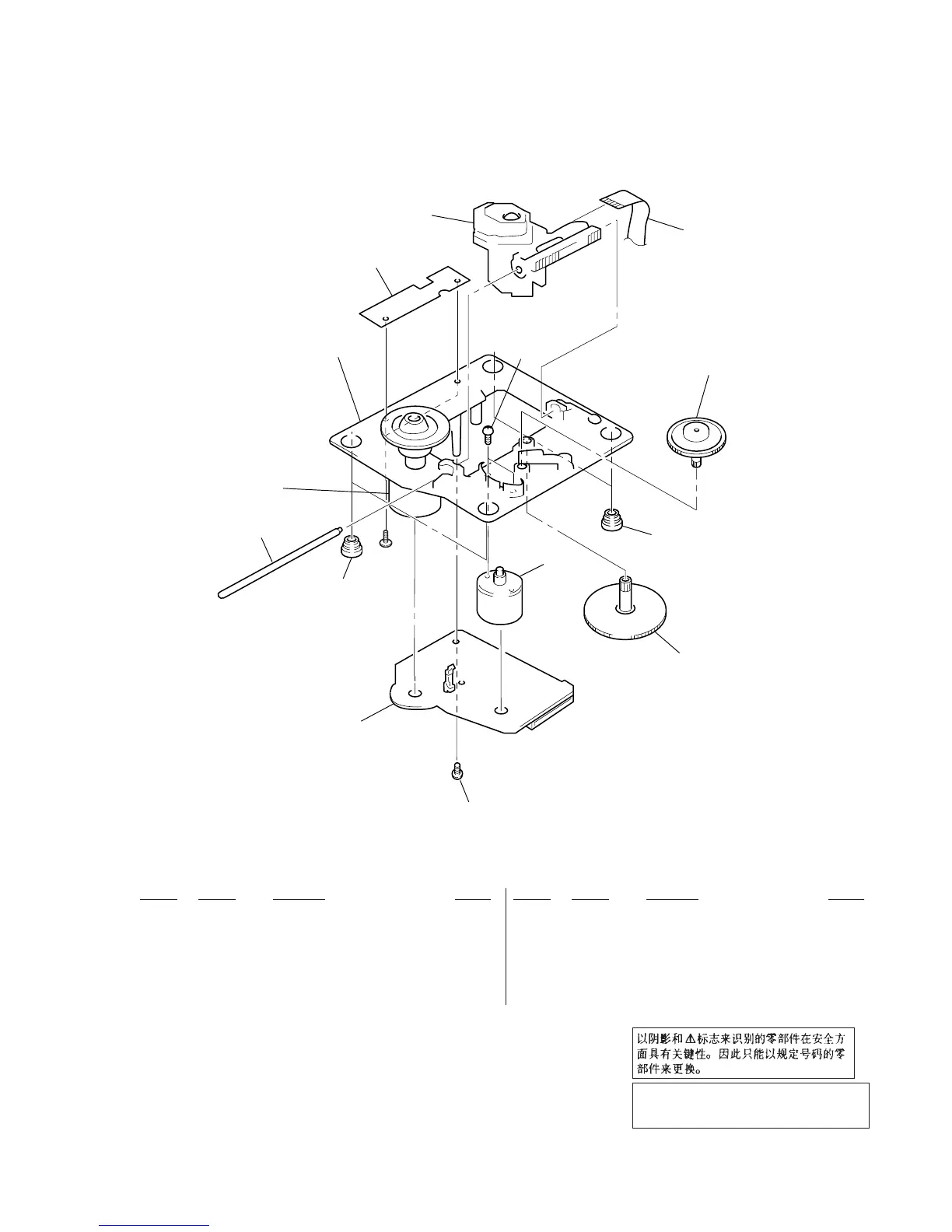

7-7. CD MECHANISM DECK SECTION-2 (BU-5SBD32)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
The components identified by mark ! or dotted
line with mark ! are critical for safety.
Replace only with part number specified.
305
306
307
304
M102
#10
308
301
302
304
M101
(including
z C)
303
z C
not supplied
#7
301 4-951-620-01 SCREW (2.6X8), +BVTP
* 302 A-4724-375-A BD (CD) BOARD, COMPLETE
303 4-917-565-01 SHAFT, SLED
304 4-951-940-01 INSULATOR (BU)
! 305 8-848-379-31 OPTICAL PICK-UP KSS-213BA/F-NP
306 1-769-069-11 WIRE (FLAT TYPE) (16 CORE)
307 4-917-567-01 GEAR (M)
308 4-917-564-01 GEAR (P), FLATNESS
M101 X-4917-523-3 BASE (OUTSART) ASSY (SPINDLE)
M102 A-4917-504-1 MOTOR ASSY (SLED)
