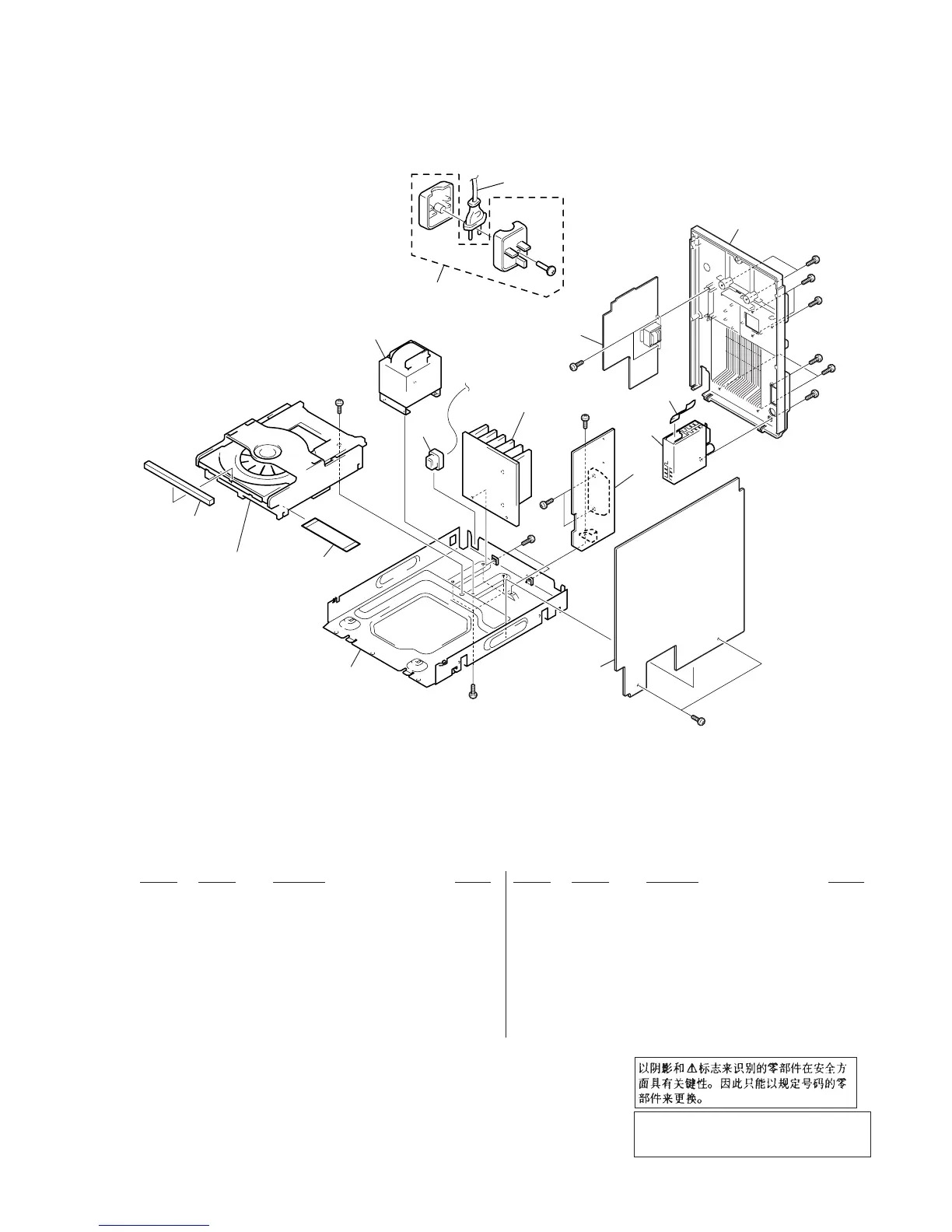

7-3. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
not supplied
T901
#9
#3
#9
#1
#9
#9
#2
#1
#1
#1
#1
#1
#1
CDM55A-5SBD32
101
102
104
105
106
107
109
108
110
111
112
HK, UK
101 4-224-112-01 LID(CD) (SILVER)
101 4-224-112-11 LID(CD) (METALLIC)
101 4-224-112-21 LID(CD) (WHITE)
102 1-791-695-11 WIRE (FLAT TYPE) (19 CORE)
104 3-703-244-00 BUSHING (2104), CORD
0 105 1-575-651-11 CORD, POWER
106 A-4426-951-A AMPBOARD, COMPLETE
107 A-4428-956-A MAIN BOARD, COMPLETE (HK)
107 A-4473-393-A MAIN BOARD, COMPLETE (EXCEPT HK)
108 A-4428-957-A TRANS BOARD, COMPLETE (HK)
108 A-4473-394-A TRANS BOARD, COMPLETE (EXCEPT HK)
109 1-791-694-11 WIRE (FLAT TYPE) (15 CORE)
110 1-693-473-21 TUNER
111 4-224-108-01 COVER, BACK (EXCEPT HK)
111 4-224-108-11 COVER, BACK (HK)
112 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK,UK)
0 T901 1-435-447-11 TRANSFORMER, POWER (HK,CH)
0 T901 1-435-555-11 TRANSFORMER, POWER (EXCEPT HK,CH)
