HCD-J3MD
6767

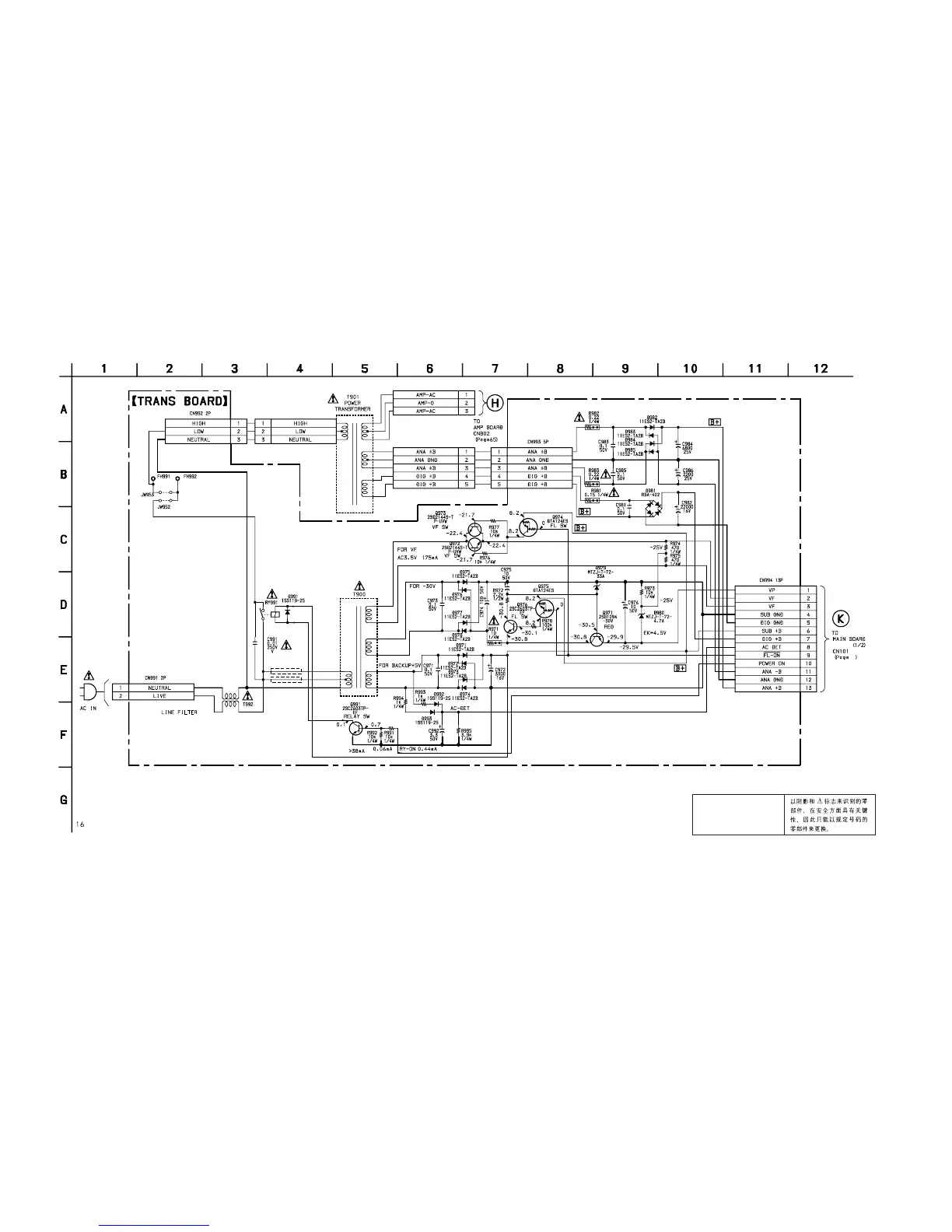

6-20. Schematic Diagram – POWER Section –
55
EXCEPT HK MODEL
HK MODEL
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
