Sony HCD-J3MD - Printed Wiring Board - AMP Section

HCD-J3MD
6060

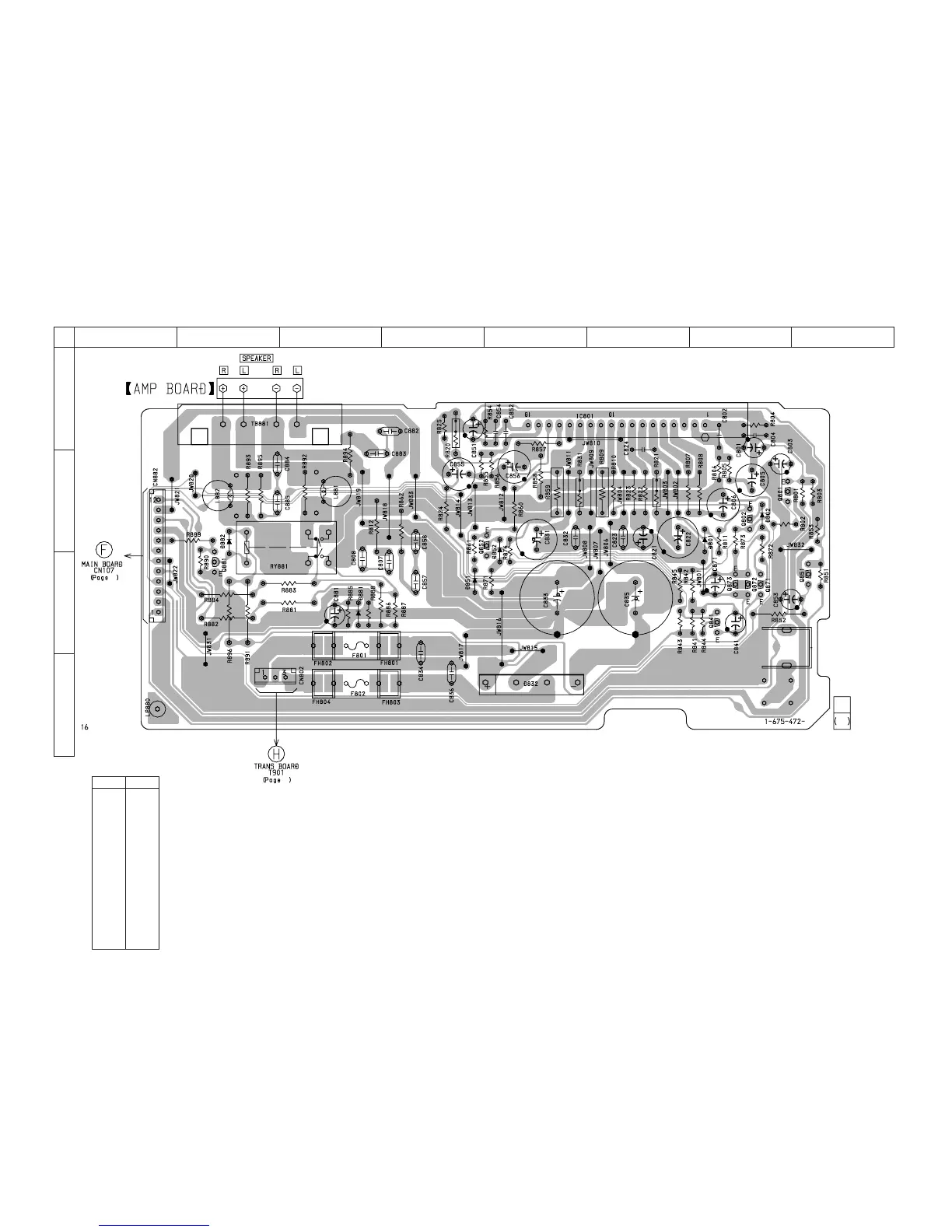

6-13. Printed Wiring Board – AMP Section –
• See page 49 for Circuit Boards Location.
66
57
14
14
12
A
B
C
D
345678
Ref. No. Location
D801 B-7
D802 B-7
D832 D-5
D851 C-4
D852 B-5
D881 C-3
D882 B-2
IC801 A-5
Q801 B-7
Q802 B-7
Q841 C-7
Q851 C-8
Q852 B-5
Q871 C-7
Q872 C-7
Q873 C-7
Q881 C-2
• Semiconductor
Location
