Sony HCD-J3MD - Base Unit (MBU-5 A) and BD (MD) Board; Over Write Head; Optical Pick-Up of MD (KMS-260 B;J1 N)

27

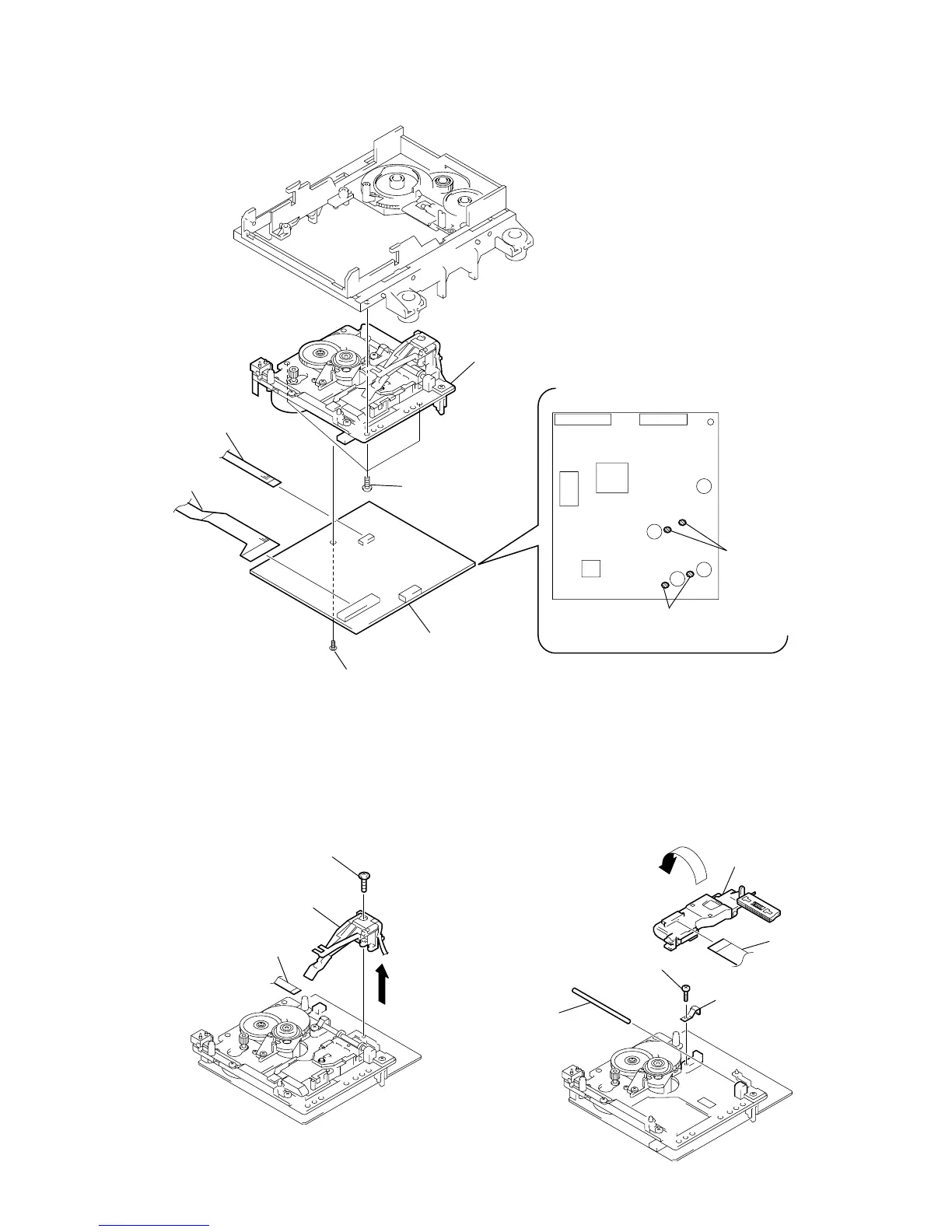

3-14. BASE UNIT (MBU-5A) and BD (MD) BOARD
2 Base unit (MBU-5A)
1 Three screws
(BTP 2.6x6)
5 Screw
(M 1.7x4)
8 BD (MD) board
6 Flexible board
7 Flexible board
CN104
CN101
CN110
Spindle motor
3 Remove the two solders.
Read wire's color
Red : +
Black :
-
4 Remove the two solders.
Sled motor
-
+
3-15. OVER WRITE HEAD
1 Flexible board
2 Screw (P 1.7x6)
3 Over write head
(HR901)
3-16. OPTICAL PICK-UP OF MD (KMS-260B/J1N)
1 Screw (B 2x8)
3 Main shaft
2 Leaf spring (SHAFT)
4 Flexible board
5 Optical pick-up (for MD)
Note:
Turn the optical pick-up
inside out, and pull out
the flexible board.
