Sony HCD-J3MD - CD Mechanism Deck; Tray, Gear and Cam

24

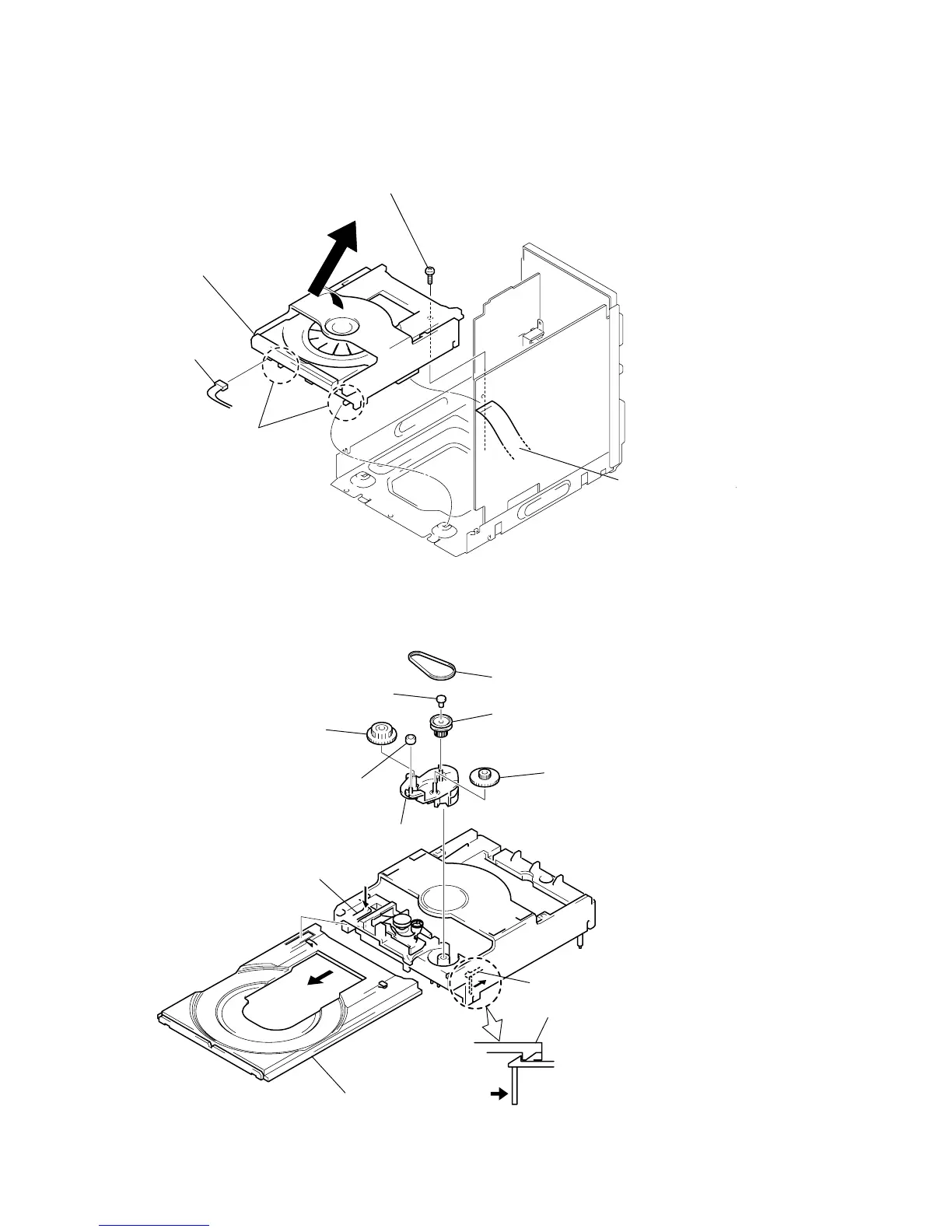

3-8. TRAY, GEAR AND CAM
4 Belt (CDM55)
6 Pulley (LDG)
9 Gear (A)
8 Gear (B)
7 Roller
2 Push the claw in tne
direction of arrow C.
0 Cam (CDM55)
3 Pull out the tray.
5 Bushing
C
A
B
B
Release
1 Pull out the tray in the arrow direction A,
and release the lock while pressing
this claw in the arrow direction B.
3-7. CD MECHANISM DECK
1 Screw
(+ BVTT 3
× 6)
2 Flat cable (25 cor
e)
3 Connector (6P)
4 CD mechanism deck
(Two claws)
