Sony HCD-J3MD - Schematic Diagram - BD (MD) Section (1;2)

HCD-J3MD
5353

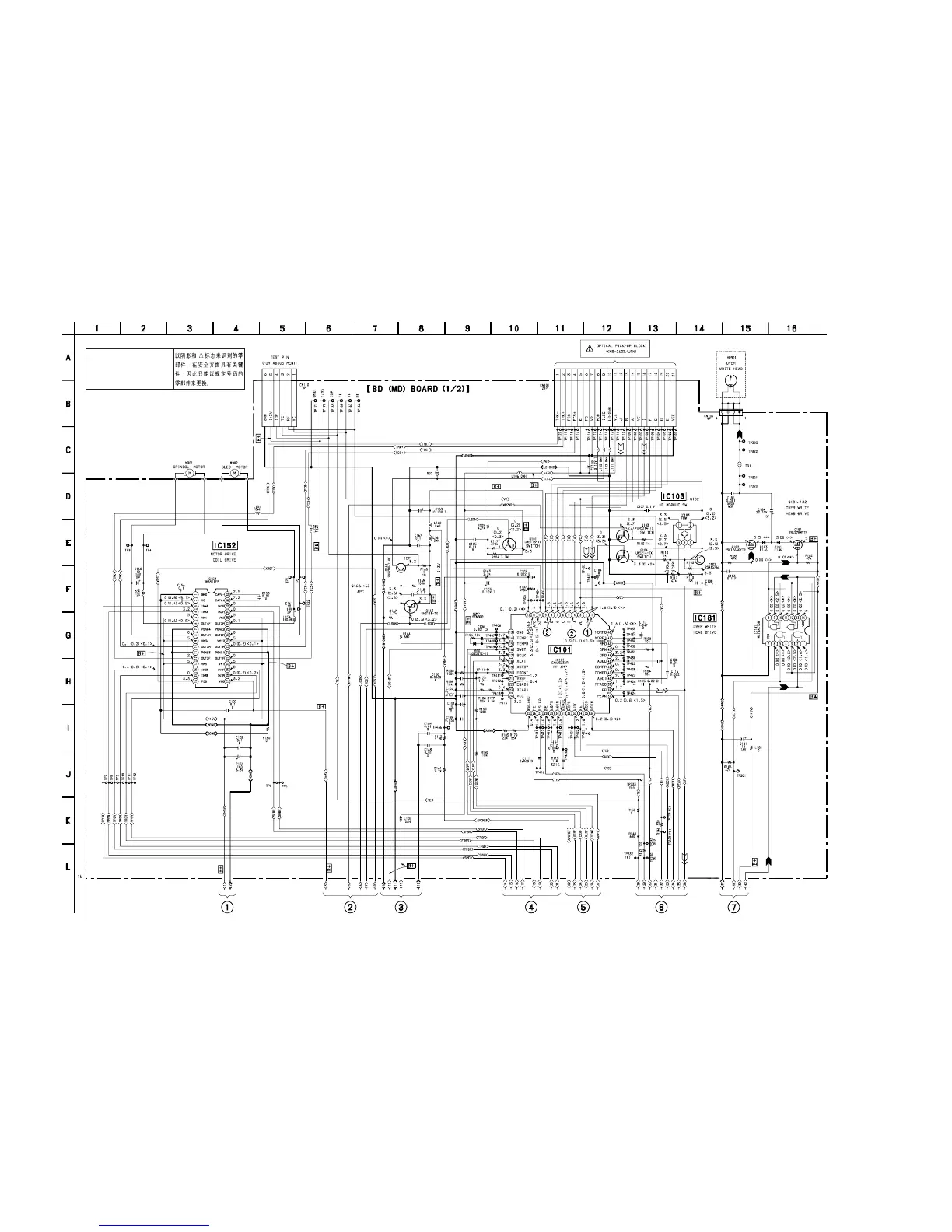

6-6. Schematic Diagram – BD (MD) Section (1/2) –
• See page 49 for Waveforms. • See page 69 for IC Block Diagrams. • See page 74 for IC Pin Functions.
(Page 54)
(Page 54)
(Page 54)
(Page 54)
(Page 54) (Page 54)
(Page 54)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
