HCD-M90

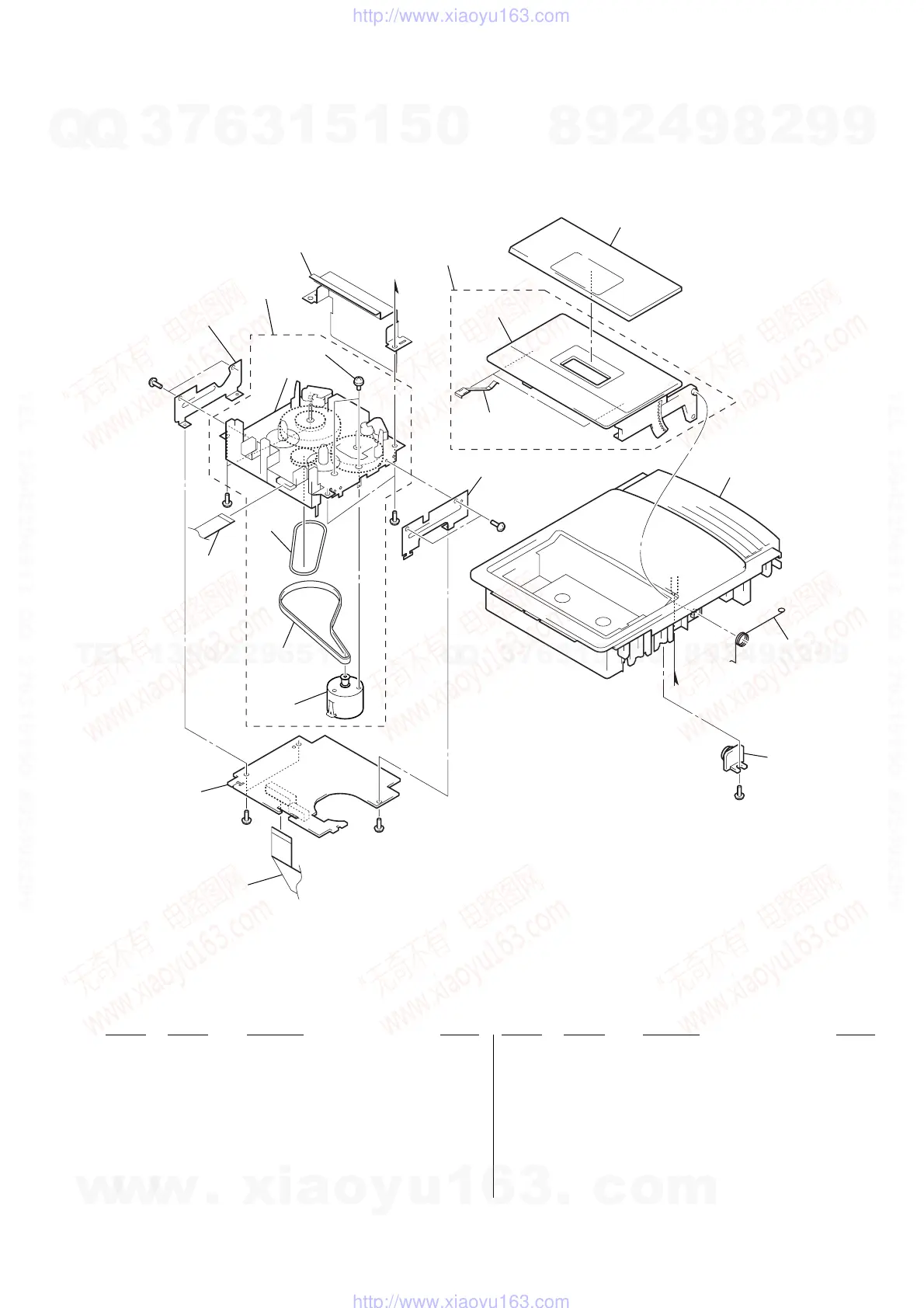

7-3. TOP PANEL SECTION
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 A-4729-461-A TC BOARD, COMPLETE
102 1-796-353-21 DECK, MECHANICAL (TAPE)
103 X-4954-501-1 HOLDER ASSY, CASSETTE
(US, CND, AEP, UK, CH)
103 X-4954-502-1 HOLDER ASSY, CASSETTE (SP, AUS)
104 4-234-557-01 SPRING (TAPE)
105 4-238-683-03 WINDOW (CASSETTE) (US, CND, AEP, UK, CH)
105 4-238-683-11 WINDOW (CASSETTE) (SP, AUS)
106 X-4954-499-1 PANEL SUB ASSY (TOP) (AEP, UK, CH)
106 X-4954-500-1 PANEL SUB ASSY (TOP) (SP, AUS)
106 X-4954-824-3 PANEL SUB ASSY (TOP) (US, CND)
108 3-926-926-01 GEAR, DAMPER
109 1-773-048-11 WIRE (FLAT TYPE) (17 CORE)
110 1-824-335-11 WIRE (FLAT TYPE) (EEC) (8 CORE)
111 4-241-659-01 BELT
112 4-241-718-01 BELT (FLAT)
#2 7-685-861-01 SCREW +BVTT 2.6X5 (S)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
109
#2
#2
#2
#2
#3
#3
#3
101
110
111
112
102
103
106
108
104
105
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplied
not supplie
