Sony HCD-M90 - Panel Disassembly Procedures; Side and Top Panel Removal

HCD-M90
11
Note: Follow the disassembly procedure in the numerical order given.

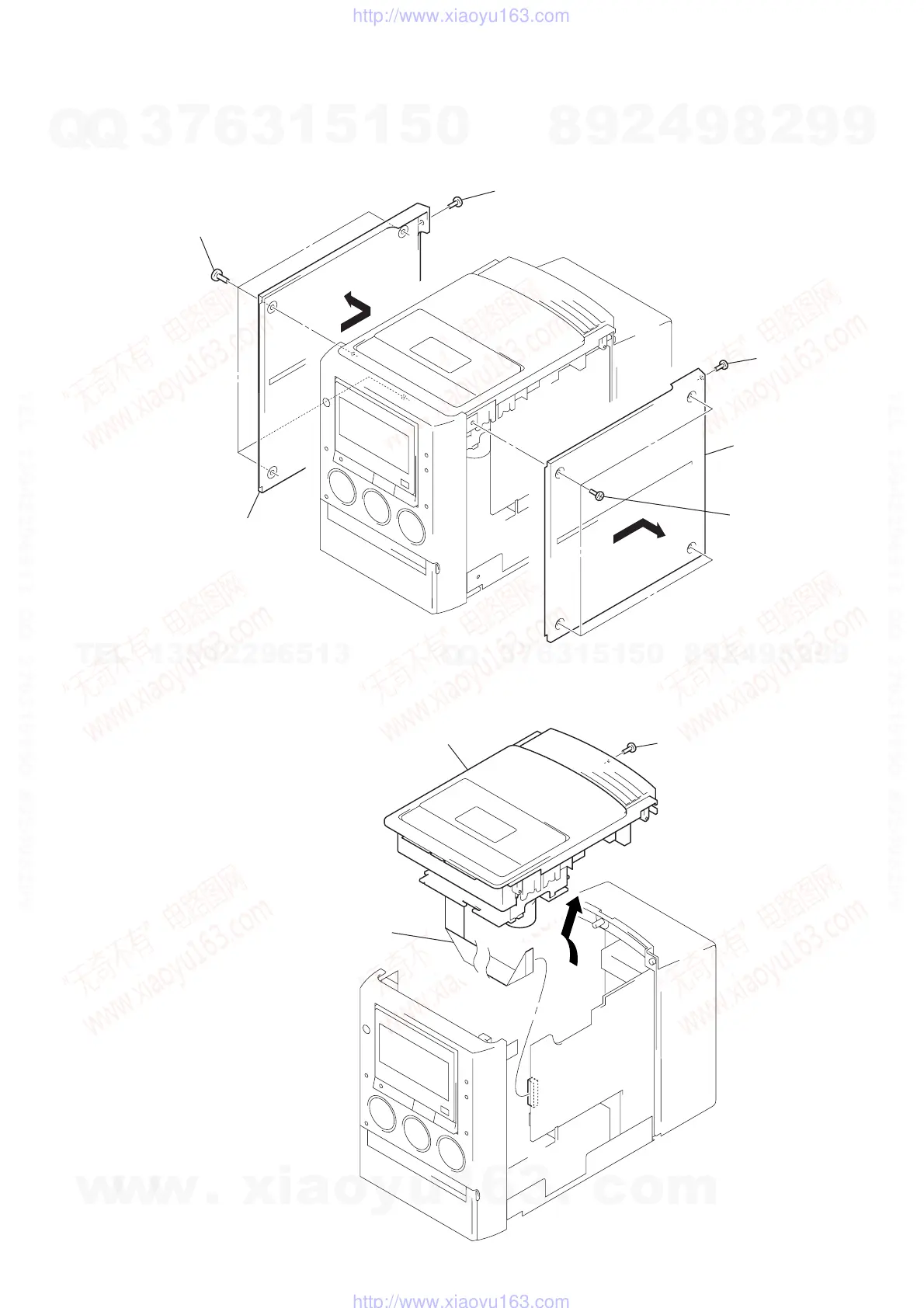

3-2. SIDE PANEL (L), SIDE PANEL (R)
3-3. TOP PANEL SECTION
1 four screws
(BTP3
× 10)
2
3 side panel (L)
1 screw
(BTP3
× 10)
4 screw
(BTP3
× 10)
4 four screws
(BTP3
× 10)
5
6 side panel (R)
3 wire (flat type) (17 core)
(CN301)
4 top panel section
1 screw
(BTP3 × 10
)
2
