HCD-M90
16

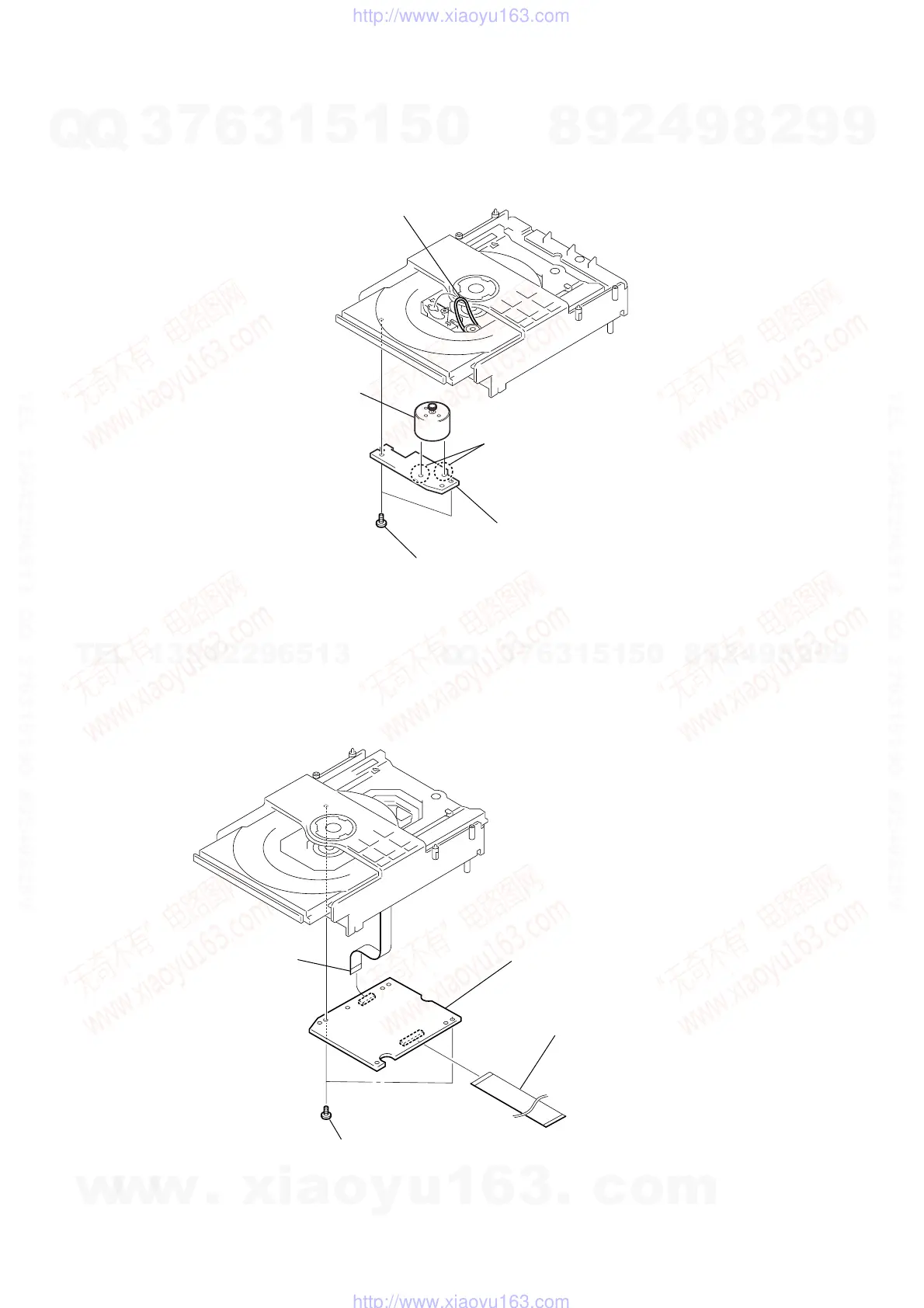

3-12. LOADING BOARD, MOTOR (LD) ASSY (M901)
3-13. RF-240 BOARD
2
two screws
(BTP 2.6
×
6)
5
loading board
3
Remove the two soldes
of motor (LD) assy (M901) .
4
motor (LD) assy (M901)
1
Remove the belt (CDM55).
3
two screws
(BTP 2.6
×
6)
4
RF-240 board
1
flexible flat cable (25 core
(CN002)
2
flexible flat cable (26P)
(CN001)
