HCD-M90

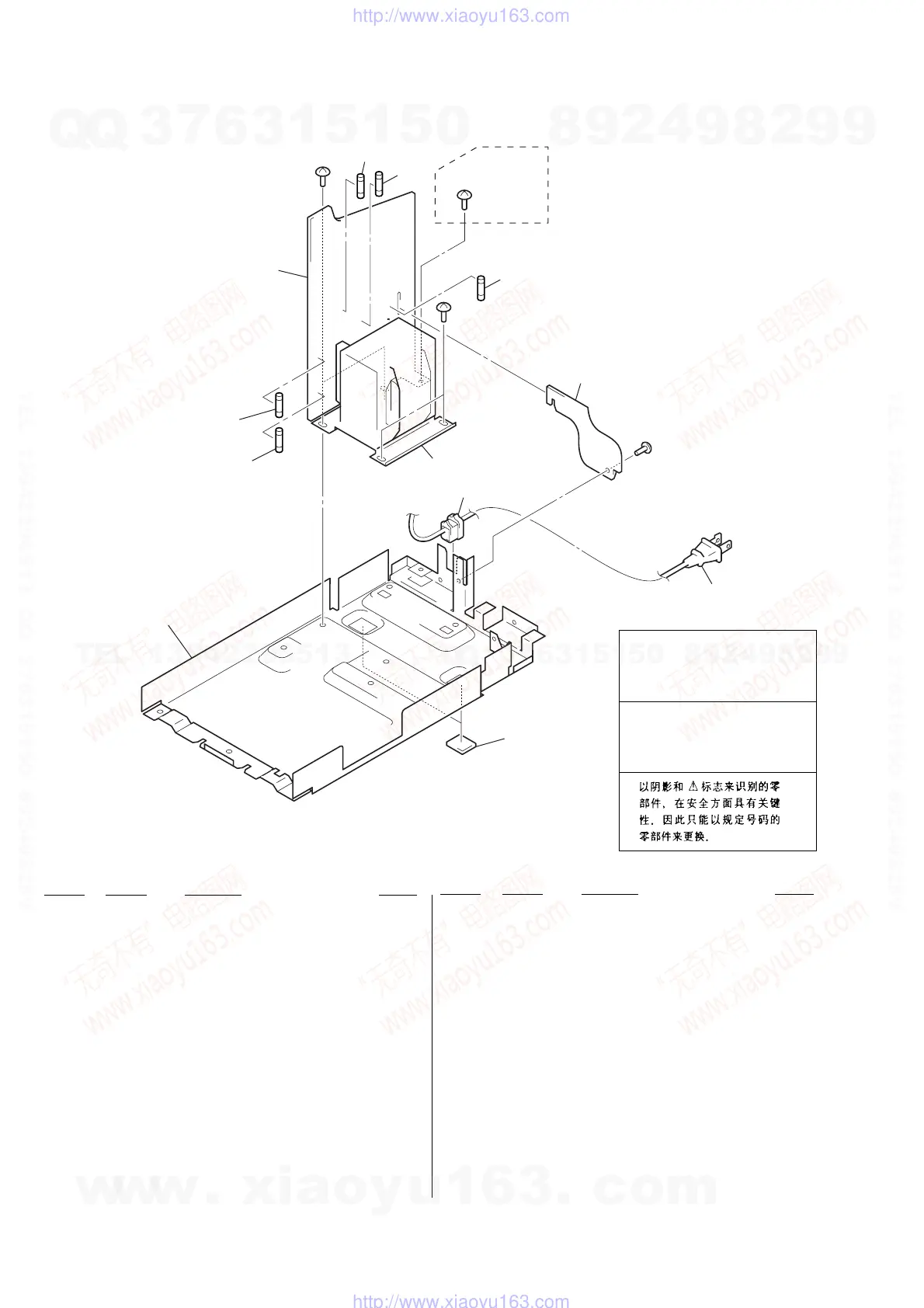

7-6. CHASSIS SECTION-3
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
251 A-4729-473-A POWER BOARD, COMPLETE (AEP, UK, AUS)
251 A-4729-474-A POWER BOARD, COMPLETE (US, CND)
251 A-4729-475-A POWER BOARD, COMPLETE (SP)
251 A-4730-566-A POWER BOARD, COMPLETE (CH)
* 253 3-703-244-00 BUSHING (2104), CORD (CH)
253 4-217-350-11 STOPPER, CORD (EXCEPT CH)
254 4-232-478-01 FOOT
0255 1-696-169-11 CORD, POWER (AEP, UK, SP)
0255 1-696-848-42 CORD, POWER (AUS)
0255 1-782-464-21 CORD, POWER (CH)
0255 1-783-531-72 CORD, POWER (US, CND)
0F901 1-533-467-11 FUSE, GLASS TUBE (DIA. 5) (T1.6AL/250V)
(SP)
0F903 1-533-450-11 FUSE, GLASS TUBE (DIA. 5) (2.5A/125V)
(US, CND)
0F903 1-533-469-11 FUSE, GLASS TUBE (DIA. 5) (T2.5AL/250V)
(AEP, UK, SP, AUS, CH)
0F904 1-533-450-11 FUSE, GLASS TUBE (DIA. 5) (2.5A/125V)
(US, CND)
0F904 1-533-469-11 FUSE, GLASS TUBE (DIA. 5) (T2.5AL/250V)
(AEP, UK, SP, AUS, CH)
0F906 1-533-450-11 FUSE, GLASS TUBE (DIA. 5) (2.5A/125V)
(US, CND)
0F906 1-533-469-11 FUSE, GLASS TUBE (DIA. 5) (T2.5AL/250V)
(AEP, UK, SP, AUS, CH)
0F907 1-533-450-11 FUSE, GLASS TUBE (DIA. 5) (2.5A/125V)
(US, CND)
0F907 1-533-469-11 FUSE, GLASS TUBE (DIA. 5) (T2.5AL/250V)
(AEP, UK, SP, AUS, CH)
0T902 1-437-853-11 TRANSFORMER, POWER (AEP, UK, AUS, CH)
0T902 1-437-854-11 TRANSFORMER, POWER (US, CND)
0T902 1-437-855-11 TRANSFORMER, POWER (SP)
#5 7-685-659-14 SCREW +BVTP 4X8 TYPE2 N-S
#6 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
not supplied
not supplied
F904
F903
F907
#5
#5
#6
#6
F906
F901
T902
253
US, CND
255
254
251
Ver 1.3
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by mark
0 or dotted line with mark 0 are
critical for safety.
Replace only with part number
specified.
