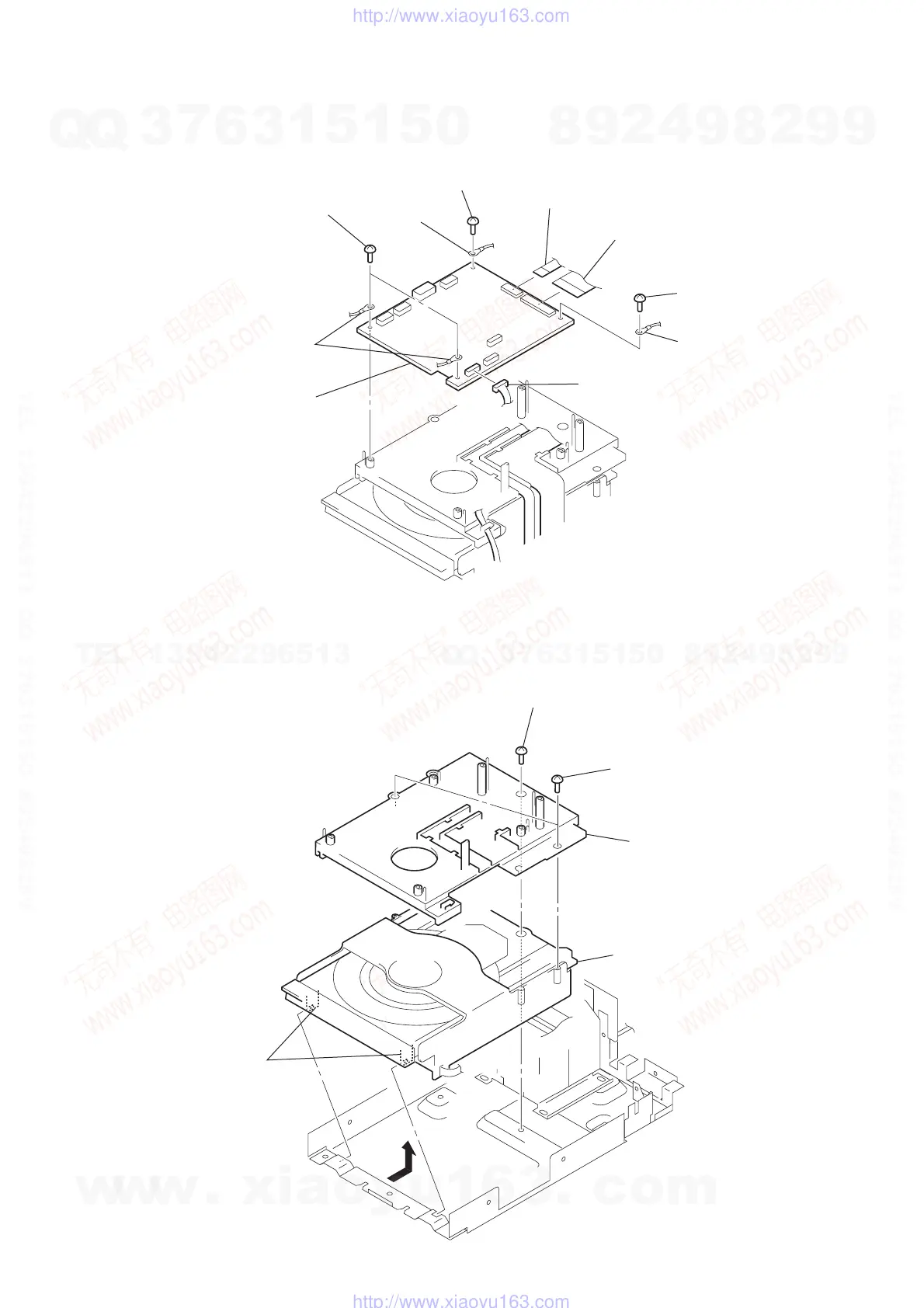

3-10. DVD BOARD
3-11. MECHANISM DECK (CDM55D-DVBU8B)
2 connector
(CN402)
4 terminal
4 terminal
5 DVD board
4 two terminals
3 screw
(DIA. 2.6 × 8
)
3 screw
(DIA. 2.6
× 8)
3 two screws
(DIA. 2.6 × 8)
1 flexible flat cable 25P
(CN010)
1 flexible flat cable (9 core)
(CN009)
3 screw
(BVTP3
× 8)
1 two screws
(DIA. 2.6 × 8)
2 bracket (MPEG)
4 Remove the mechanism dec
k
in the direction of the arrow.
3 two claws
