102
HCD-M90

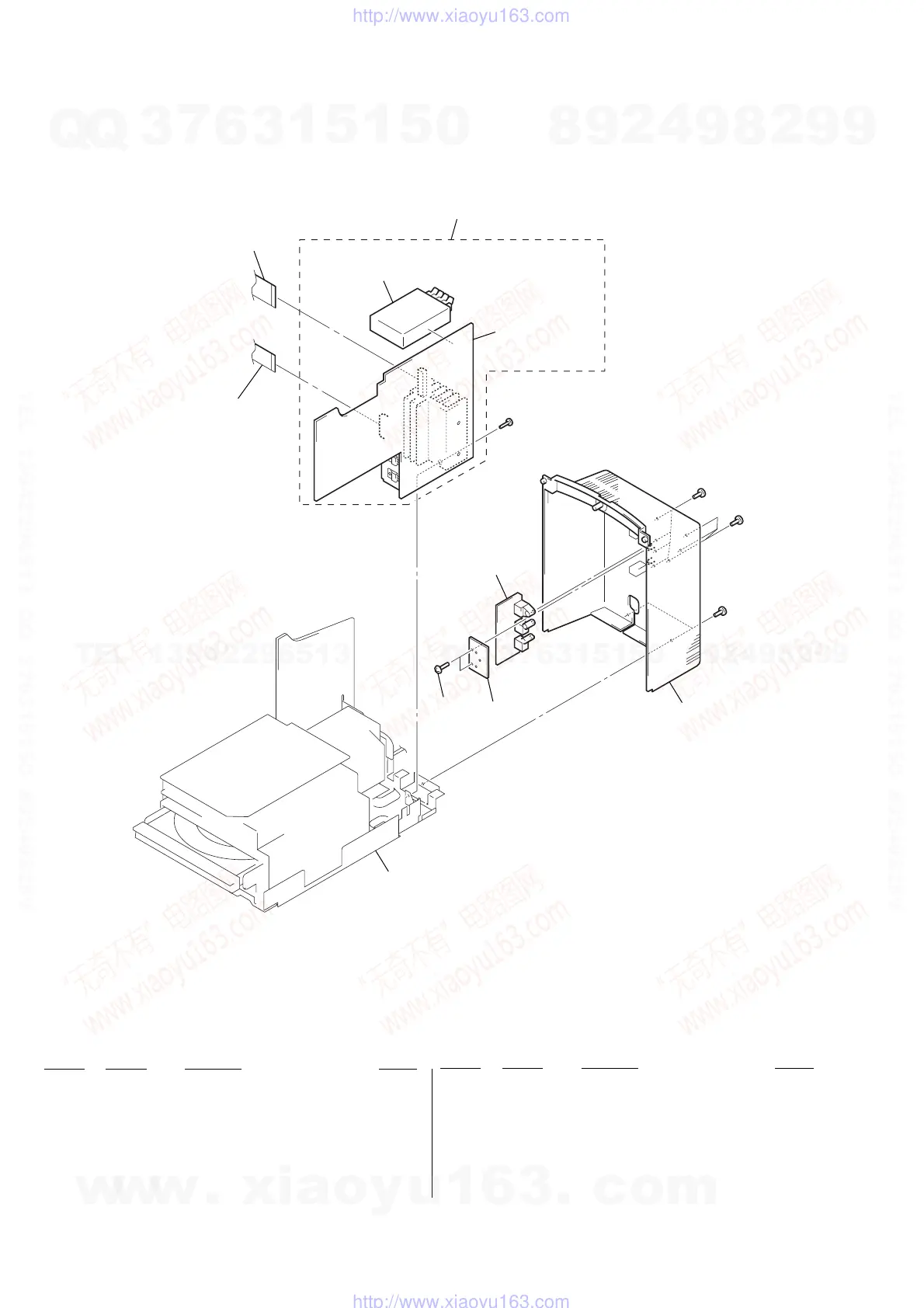

7-4. CHASSIS SECTION-1
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
151 1-773-042-11 WIRE (FLAT TYPE) (17 CORE)
152 1-773-219-11 WIRE (FLAT TYPE) (25 CORE)
153 A-4729-477-A MAIN BOARD, COMPLETE (AEP, UK)
153 A-4729-478-A MAIN BOARD, COMPLETE (US, CND)
153 A-4729-479-A MAIN BOARD, COMPLETE (AUS)
153 A-4729-480-A MAIN BOARD, COMPLETE (SP)
153 A-4730-567-A MAIN BOARD, COMPLETE (CH)
156 4-931-757-31 SCREW (DIA. 2.6X8) (IT3B), TAPPING
TU1 A-4303-953-A TUNER UNIT (TCB-023//K (CE))
(AEP, UK, AUS, CH)
TU1 A-4728-019-A TUNER UNIT (TCB-023//K (UC)) (US, CND, SP)
#1 7-685-547-14 SCREW +BTP 3X10 TYPE2 N-S
#4 7-685-548-19 SCREW +BTP 3X12 TYPE2 N-S
#6 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
156
151
152
153
TU1
main board
#4
#6
#
#6
not supplied
not supplied
not supplied
chassis section-2
Ver 1.3
