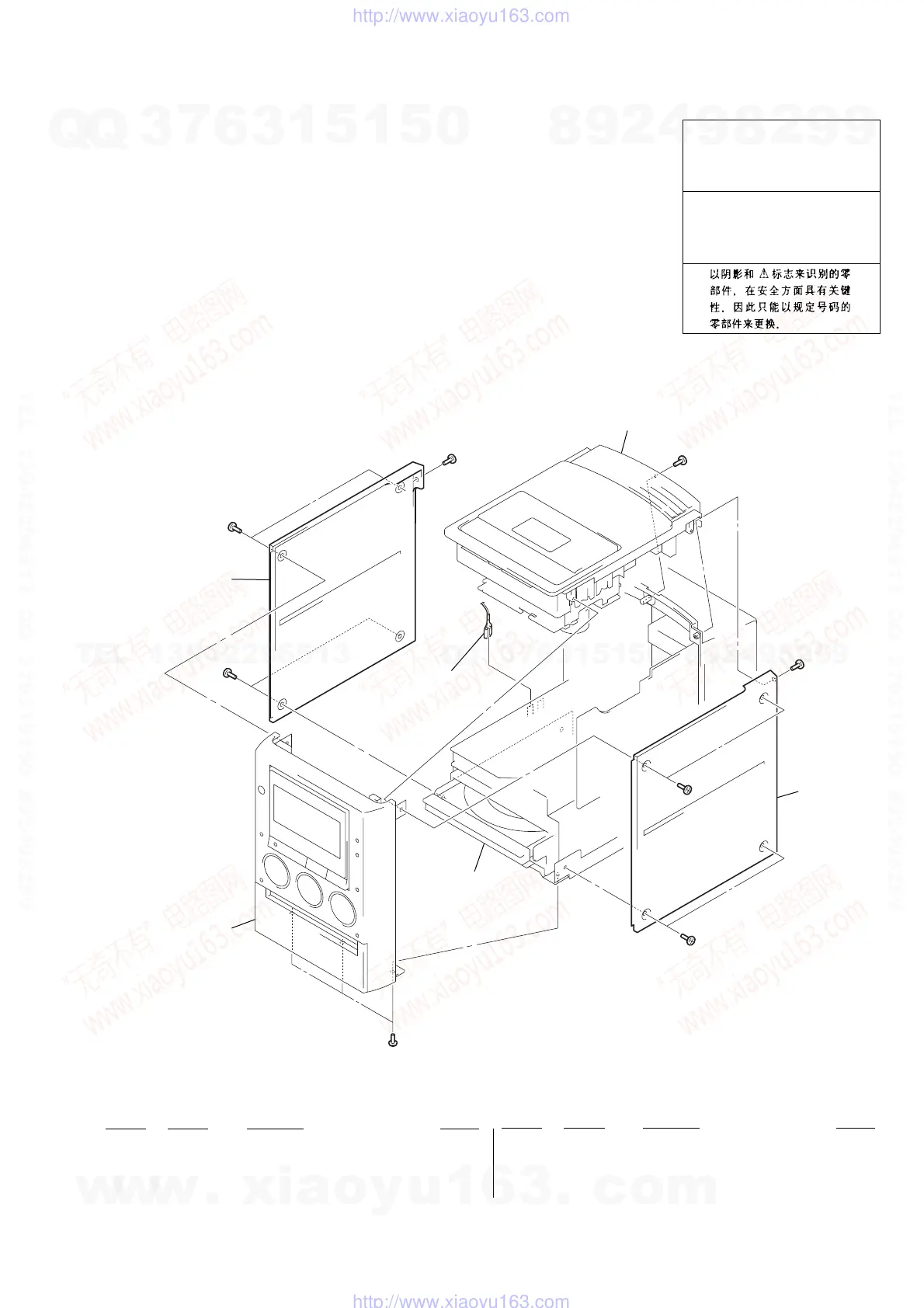

7-1. PANEL (SIDE) SECTION
SECTION 7
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• Accessories are given in the last of the elec-
trical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
•Abbreviation
AUS : Australian model
CH : Chinese model
CND : Canadian model
SP : Singapore model
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-238-706-01 PANEL (SIDE) (L) (AEP, UK, CH)
1 4-238-706-11 PANEL (SIDE) (L) (SP, AUS)
1 4-238-706-53 PANEL (SIDE) (L) (US, CND)
3 4-238-707-01 PANEL (R), SIDE (AEP, UK, CH)
3 4-238-707-11 PANEL (R), SIDE (SP, AUS)
3 4-238-707-53 PANEL (R), SIDE (US, CND)
#1 7-685-547-14 SCREW +BTP 3X10 TYPE2 N-S
#6 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S
1
#1
#1
#1
#1
#1
#1
#1
#6
chassis (lower) section
not supplied
front panel section
3
top panel section
Ver 1.3
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
