Sony HCD-M90 - Printed Wiring Board - DVD Board (Side B); DVD Board (Side B) Component Layout

HCD-M90
4141

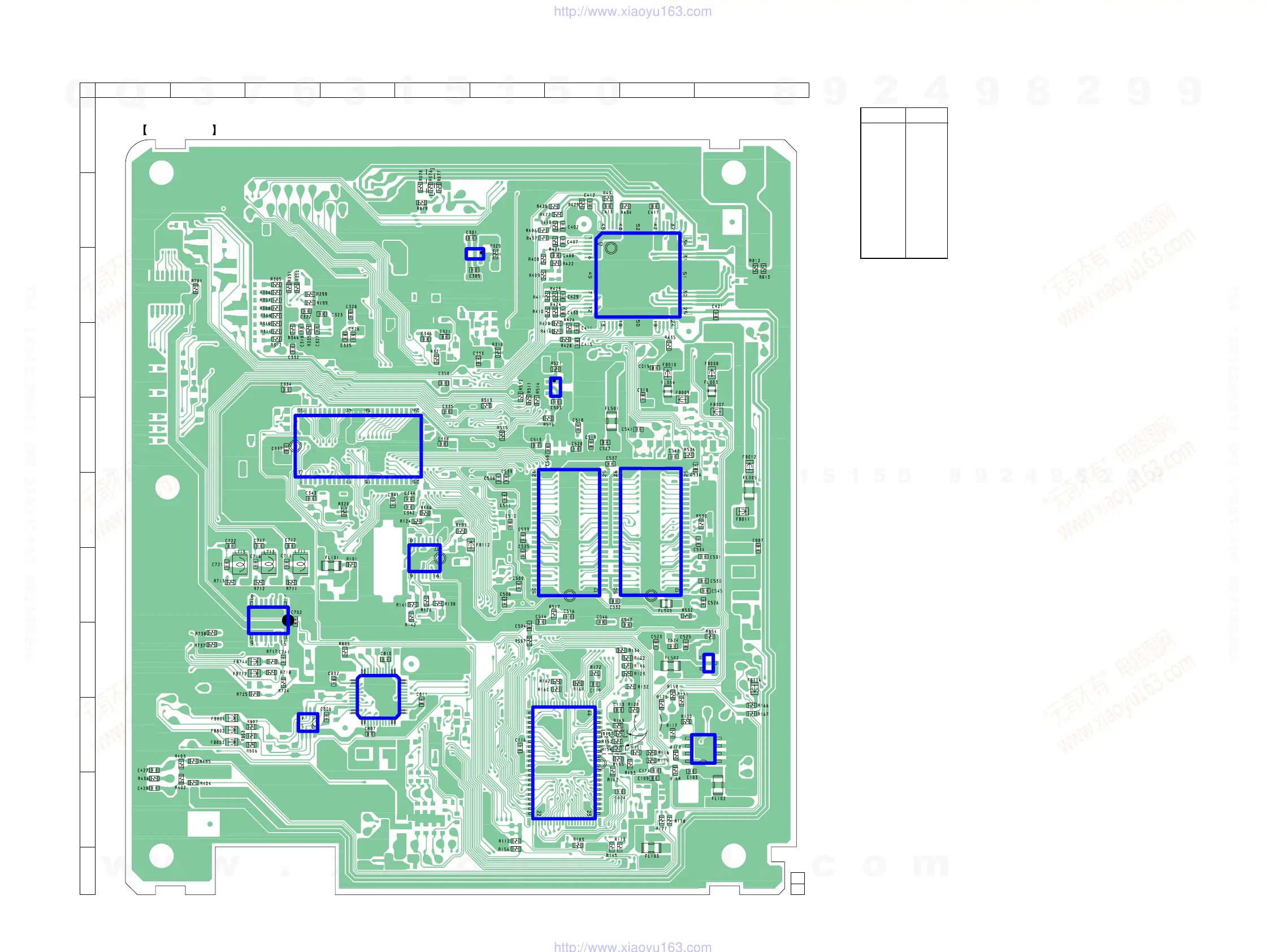

6-13. PRINTED WIRING BOARD – DVD Board (Side B) (Suffix-21) – • See page 35 for Circuit Boards Location. • Refer to servicing notes (page 8) for discrimination of TYPE A/B.
IC303
IC102
IC701
IC802
IC801
IC108
IC101
IC501
IC504IC505
IC502
IC401
IC301
1
12
13 24
25
36
48 37
1
4
8
5
1
2
3
1
3
5
4
13
54
DVD BOARD
(SIDE B)
1-684-516-
21
(21)
AEP, UK,
SP, AUS
1 2 3 4 5 6 7 8 9
A
B
C
D
E
F
G
H
I
J
K
(TYPE B)
• Semiconductor
Location
Ref. No. Location
IC101 I-9
IC102 G-5
IC108 I-7
IC301 C-6
IC303 E-4
IC401 C-8
IC501 H-9
IC502 D-7
IC504 F-8
IC505 F-7
IC701 G-3
IC801 H-4
IC802 I-3
Ver 1.3
