103
HCD-M90

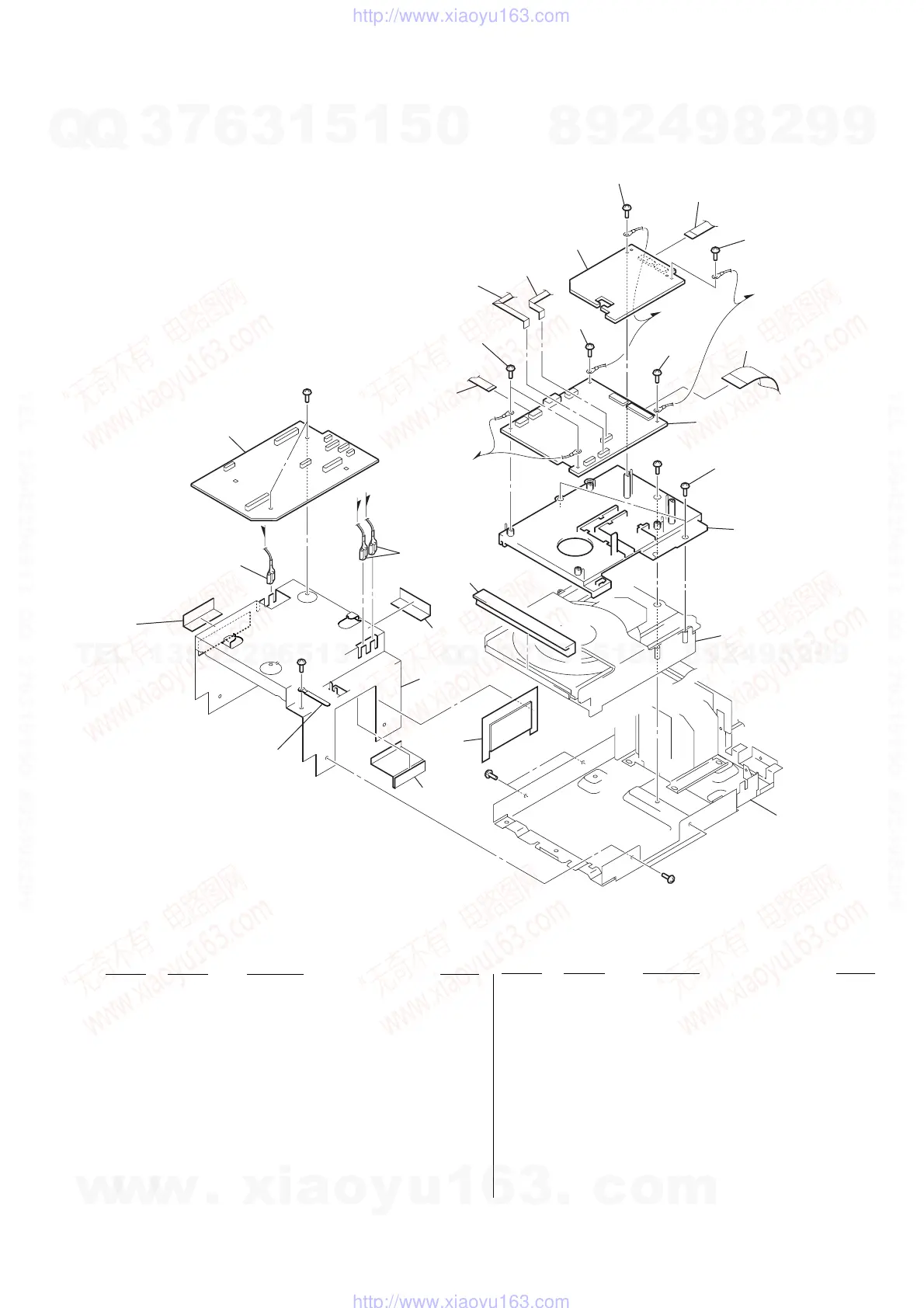

7-5. CHASSIS SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
201 4-243-546-01 SHEET (CASE), SHIELD
202 A-4729-454-A CONTROL BOARD, COMPLETE (AEP, UK)
202 A-4729-455-A CONTROL BOARD, COMPLETE (US, CND)
202 A-4729-456-A CONTROL BOARD, COMPLETE (SP, AUS)
202 A-4730-560-A CONTROL BOARD, COMPLETE (CH)
203 X-4954-647-1 LID ASSY, CD (US, CND, AEP, UK, CH)
203 X-4954-821-1 LID ASSY, CD (SP, AUS)
204 1-824-375-11 WIRE (FLAT TYPE) (FFC) (10 CORE)
205 4-931-757-31 SCREW (DIA. 2.6X8) (IT3B), TAPPING
206 1-824-590-11 WIRE (FLAT TYPE) (FFC) (5 CORE)
207 1-824-591-11 WIRE (FLAT TYPE) (FFC) (6 CORE)
208 A-4729-472-A DAC BOARD, COMPLETE (EXCEPT CH)
208 A-4730-565-A DAC BOARD, COMPLETE (CH)
209 1-824-592-11 WIRE (FLAT TYPE) (FFC) (13 CORE)
210 A-4729-462-A DVD BOARD, COMPLETE (AEP)
210 A-4729-463-A DVD BOARD, COMPLETE (UK)
210 A-4729-464-A DVD BOARD, COMPLETE (US, CND)
210 A-4729-465-A DVD BOARD, COMPLETE (AUS)
210 A-4729-466-A DVD BOARD, COMPLETE (SP)
210 A-4730-563-A DVD BOARD, COMPLETE (CH)
211 3-228-738-01 SHEET (D)
212 1-824-378-11 WIRE (FLAT TYPE) (FFC) (25 CORE)
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#7 7-685-545-14 SCREW +BTP 3X6 TYPE2 N-S
#3
#7
#3
#3
#3
not
supplied
C
C
A
A
B
B
202
211
201
211
211
203
205
205
205
205
208
207
206
209
205
205
204
210
212
not supplied
not supplied
not supplied
not supplied
chassis section-3
CDM55D-DVBU8
Ver 1.3
