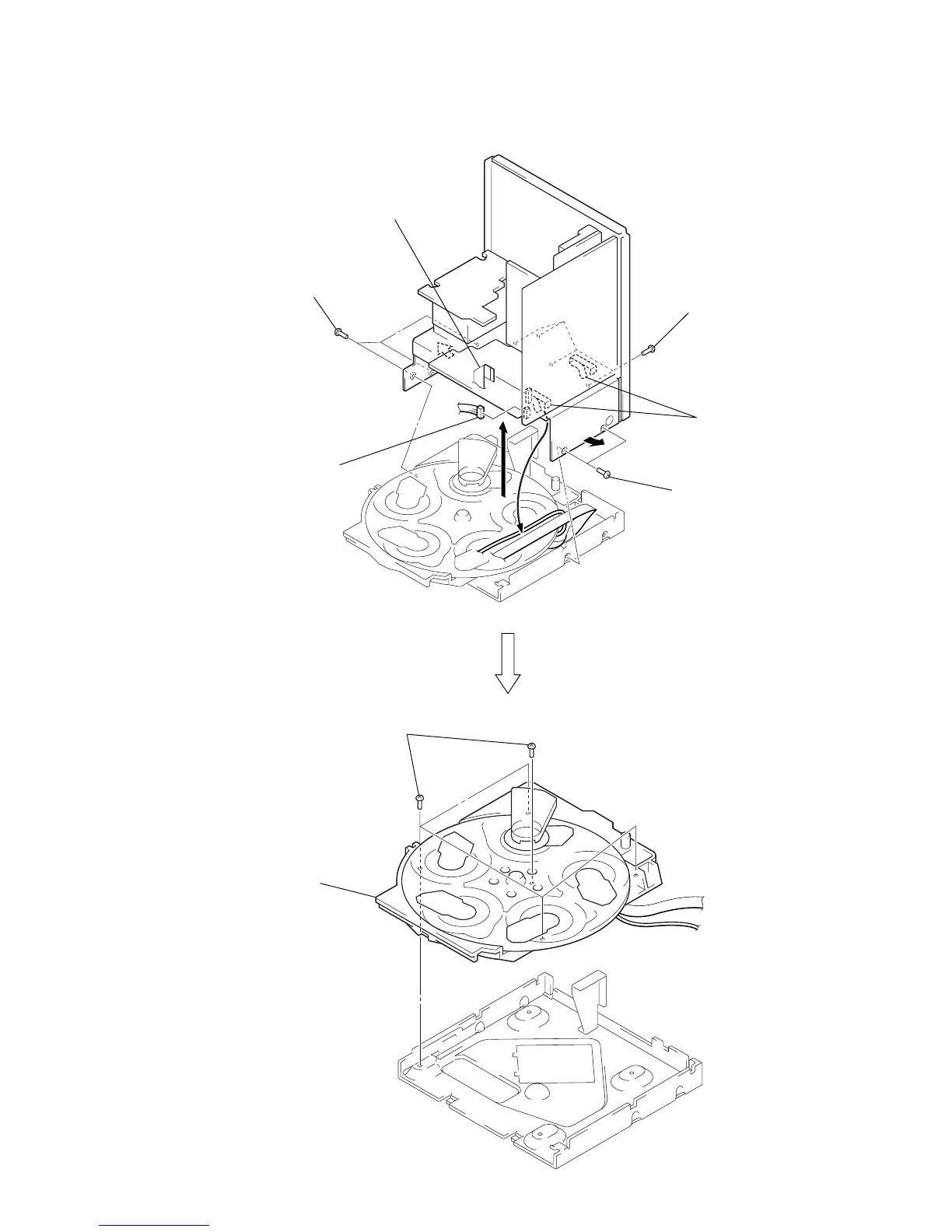

3-7. CD MECHANISM DECK (CDM37M-5BD32L)
2
connector
(CN412)
4
three screws
(BVTP3
×
8)
5
6
5
1
wire (flat type)
(19 core) (CN411)
3
four screws
(BVTP3
×
8)
4
two screws
(BVTP3
×
8)
7
Open the cable clamp.
9
CD mechanism deck
(CDM37M-5BD32)
8
five screws
(BVTP3
×
8)
