Sony HCD-XG500 - Bookshelf System User Manual

61
HCD-XG60/XG500

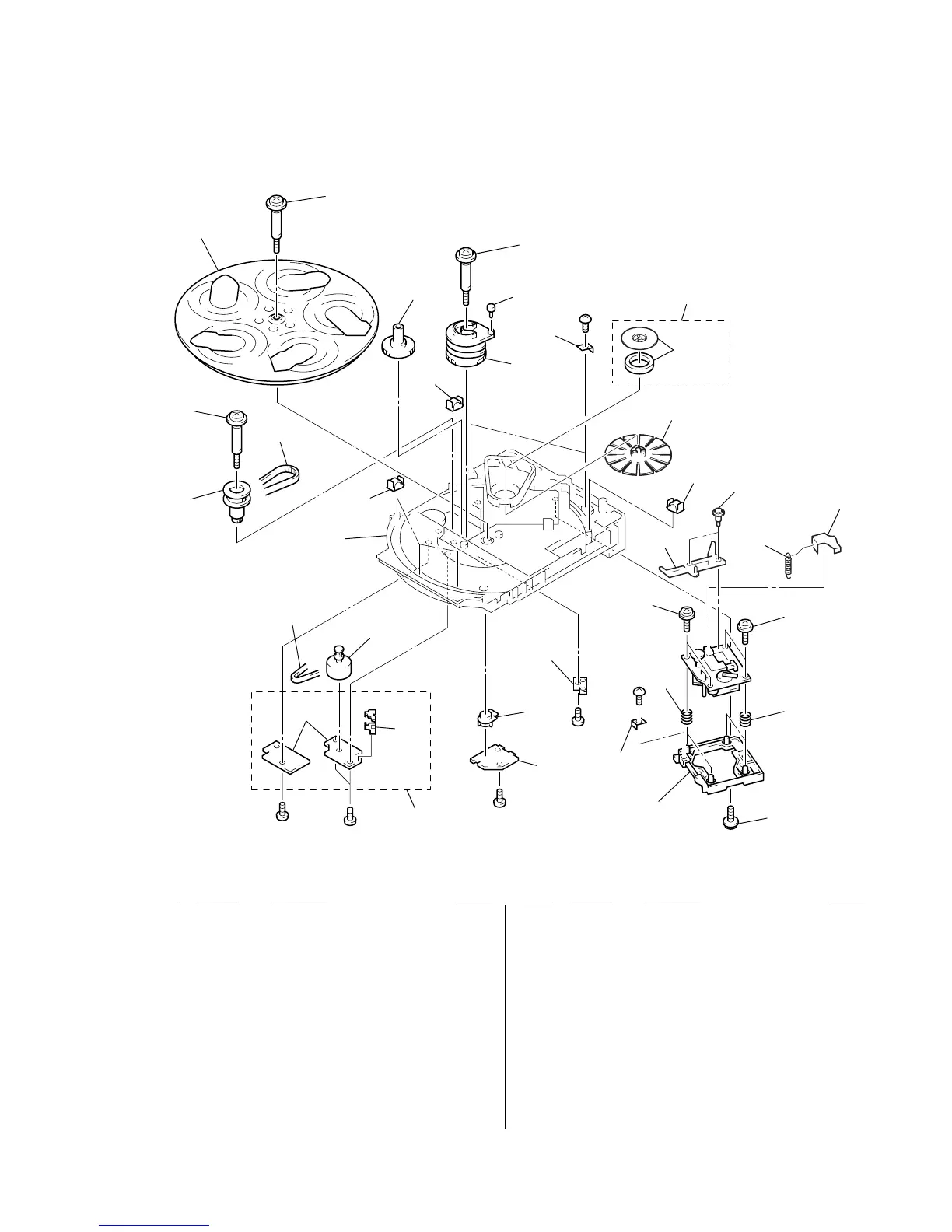

8-7. CD MECHANISM DECK SECTION
(CDM37M-5BD32L)
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
* 514 A-4673-765-A CD MOTOR BOARD, COMPLETE
515 4-978-426-01 INDICATOR (NO.)
* 516 1-659-059-13 LED BOARD
* 517 1-659-058-13 TABLE SENSOR BOARD
518 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
519 4-958-593-01 SPRING (BU), COMPRESSION
* 520 4-978-419-01 HOLDER (BU-5)
521 4-998-716-01 SCREW, BU FITTING
522 4-989-493-01 SLIDER (37)
523 4-989-494-01 SCREW (SLIDER), STEP
524 4-989-819-21 SPRING, TENSION
525 4-989-491-01 COVER, LENS
M201 A-4660-977-A MOTOR ASSY (TABLE)
501 4-987-976-01 SCREW, STEP
502 4-944-490-01 BELT (TIMING)
503 A-4660-978-A GEAR (PULLEY) ASSY
504 4-978-421-01 GEAR (MID)
505 4-978-425-01 ROLLER (CAM)
506 4-978-420-01 CAM (HOLDER)
507 1-452-925-21 MAGNET ASSY
508 4-978-417-01 TABLE, DISC
509 4-993-142-03 PULLEY (L), PRESS
510 X-4947-960-1 ROLLER ASSY
* 511 4-978-583-01 BRACKET (BU)
512 4-978-418-01 CHASSIS
* 513 4-980-385-01 HOLDER (SW)
507
509
#3
#3
#3
not
supplied
not
supplied
#3
#3
#3
M201
502
513
514
516
515
517
511
518
518
519
519
520
521
510
511
505
501
501
506
508
502
504
501
503
510
510
512
525
524
523
522
