60
HCD-XG60/XG500
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
451 X-4952-881-1 CHASSIS ASSY, MAIN
452 3-041-946-01 BELT (CAPSTAN B)
453 4-227-239-01 BELT (CAPSTAN C)
454 X-3378-247-1 FLYWHEEL (A-FWD) ASSY
455 X-3378-249-1 FLYWHEEL (B-FWD) ASSY
456 X-3378-250-1 FLYWHEEL (B-REV) ASSY
457 X-3378-248-1 FLYWHEEL (A-REV) ASSY
458 3-041-947-01 BELT (FR)
459 3-703-454-21 SCREW (1.7X6), TAPPING
460 3-016-566-01 SLIDER, REVERSE
461 A-2007-852-A LEAF SW BOARD, COMPLETE
462 4-228-450-01 SPRING (REVERSE SLIDER), TORSION
463 3-019-208-01 WASHER, STOPPER
464 A-2004-795-A CHASSIS (A) ASSY, SUB
465 1-454-887-21 SOLENOID, PLUNGER
466 A-2004-796-A CHASSIS (B) ASSY, SUB
467 3-040-580-11 PULLEY (TENSION)
468 3-017-407-01 WASHER (FR LEVER), STOPPER
469 3-359-464-41 WASHER (CAPSTAN)
470 3-359-464-11 WASHER (CAPSTAN)
M1 X-3378-246-1 MOTOR ASSY (CAPSTAN) (TAPE)

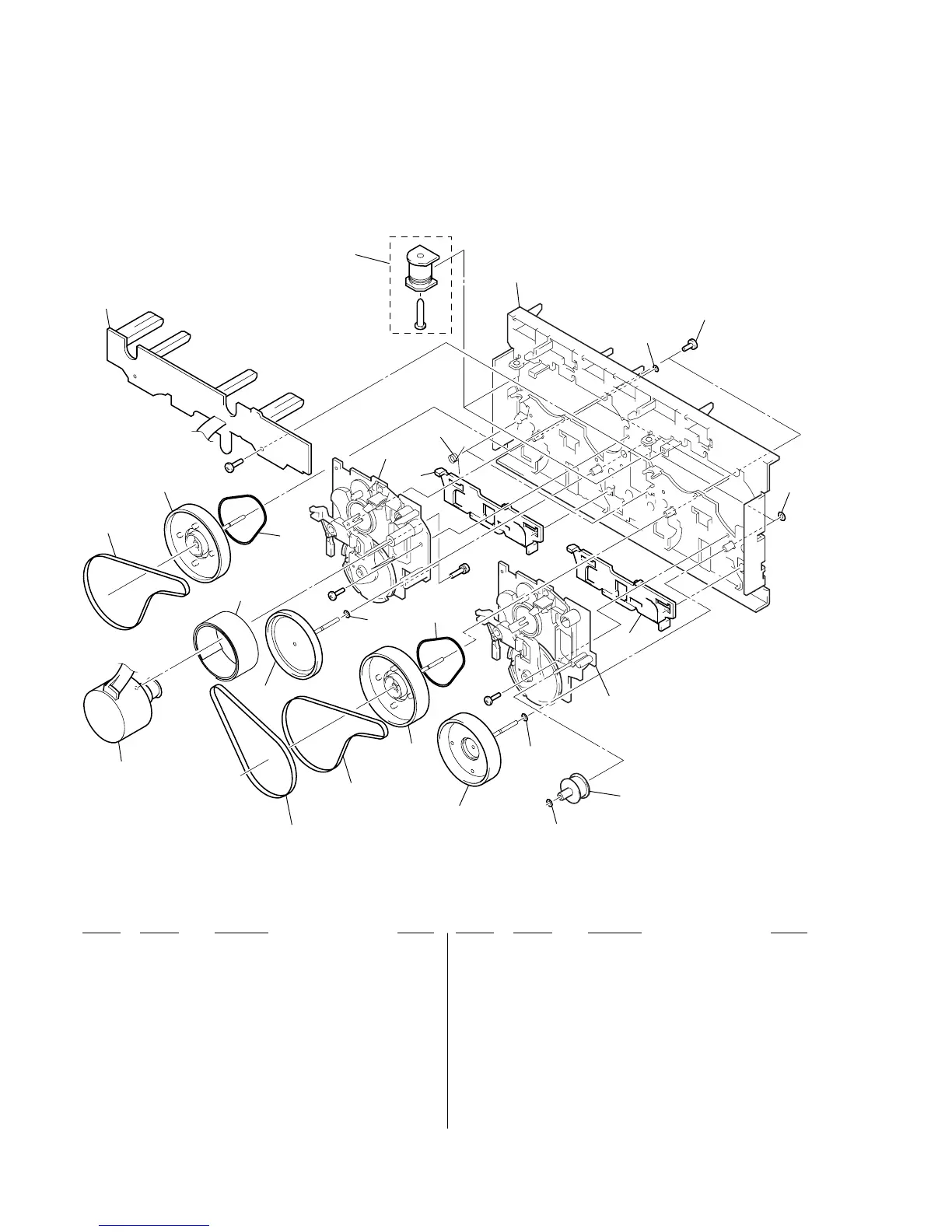

8-6. TAPE MECHANISM DECK SECTION-2
(TCM-230PWR42)
451
465
466
452
453
452
454
455
457
464
467
468
470
470
456
458
458
460
460
461
462
M1
#11
#12
#13
#12
#12
463
459
469
