Sony HCD-XG500 - Bookshelf System - Panel FL Board Schematic

HCD-XG60/XG500
4141

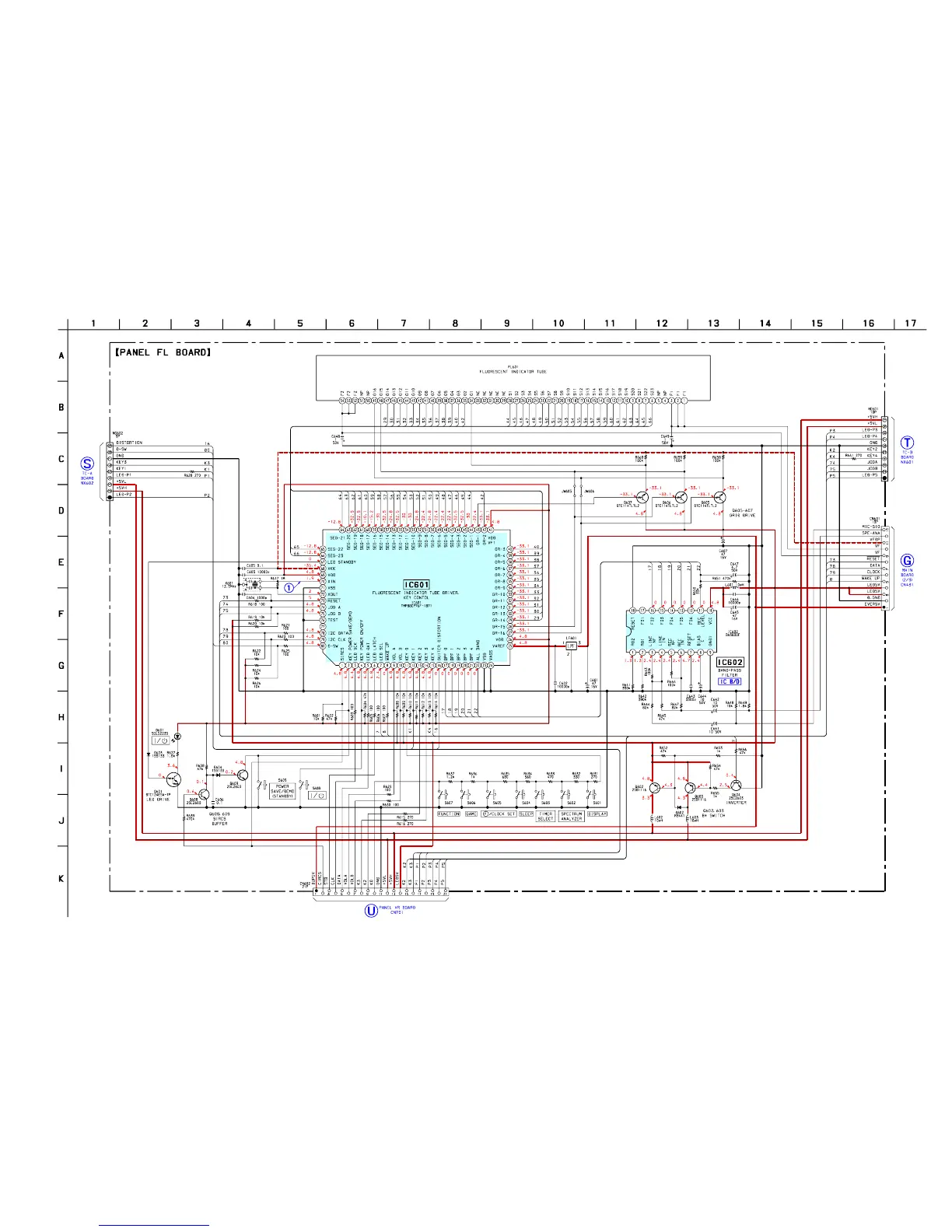

7-23. SCHEMATIC DIAGRAM – PANEL FL Board – • See page 35 for Waveform. • See page 47 for IC Block Diagram.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER (FM/AM)
(Page 45)
(Page 45)
(Page 32)
(Page 43)
