Sony HCD-XG500 - Bookshelf System - 8 Exploded Views; Case, Back Panel Section

55
HCD-XG60/XG500

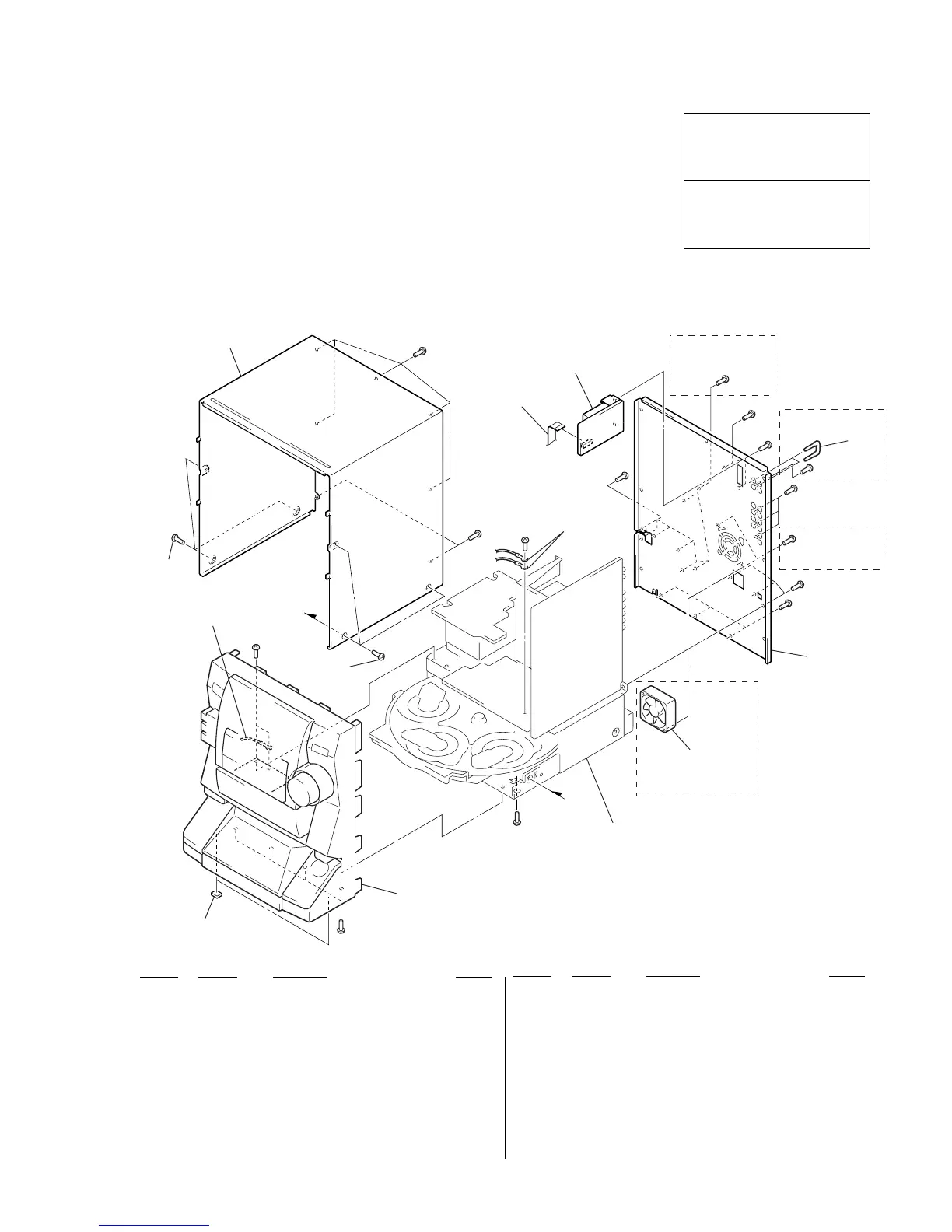

8-1. CASE, BACK PANEL SECTION
SECTION 8
EXPLODED VIEWS
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list and accessories and
packing materials are given in the last of the
electrical parts list.
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑↑
Parts Color Cabinet's Color
• Abbreviation
AR : Argentina model
CND : Canadian model
E2 : 120 V AC area in E model
EA : Saudi Arabia model
MX : Mexican model
SP : Singapore model
3
4
6
7
5
2
2
1
#1
#3
#3
not supplied
#3
#3
EXCEPT AEP, UK
XG60: MX/XG500
EXCEPT AEP, UK
#3
#3
#3
#3
#3
#3
#2
#3
#3
#3
Front panel section
Chassis section
M901
EXCEPT AEP, UK
not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
1 4-948-236-21 CUSHION (107)
2 3-363-099-01 SCREW (CASE 3 TP2)
* 3 4-214-777-12 CASE
4 1-769-977-11 WIRE (FLAT TYPE) (13 CORE)
(EXCEPT AEP, UK)
4 1-773-009-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK)
5 1-693-481-11 TUNER PACK (FM/AM TUNER UNIT) (US)
5 1-693-484-11 TUNER PACK (FM/AM TUNER UNIT) (E2)
5 1-693-486-11 TUNER PACK (FM/AM TUNER UNIT) (CND)
5 1-693-488-11 TUNER PACK (FM/AM TUNER UNIT) (EA, SP,
MX, AR)
5 1-693-490-11 TUNER PACK (FM/AM TUNER UNIT) (AEP, UK)
6 1-535-706-21 PLUG, JUMPER (XG60: MX/XG500)
7 4-232-087-01 PANEL, BACK (US)
7 4-232-087-11 PANEL, BACK (AEP, UK)
7 4-232-087-21 PANEL, BACK (E2, AR)
7 4-232-087-31 PANEL, BACK (SP)
7 4-232-087-41 PANEL, BACK (MX)
7 4-232-087-51 PANEL, BACK (EA)
7 4-232-087-61 PANEL, BACK (CND)
M901 1-763-072-11 FAN, D. C. (EXCEPT AEP, UK)
Les composants identifiés par une
marque 0 sont critiquens pour la
sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
