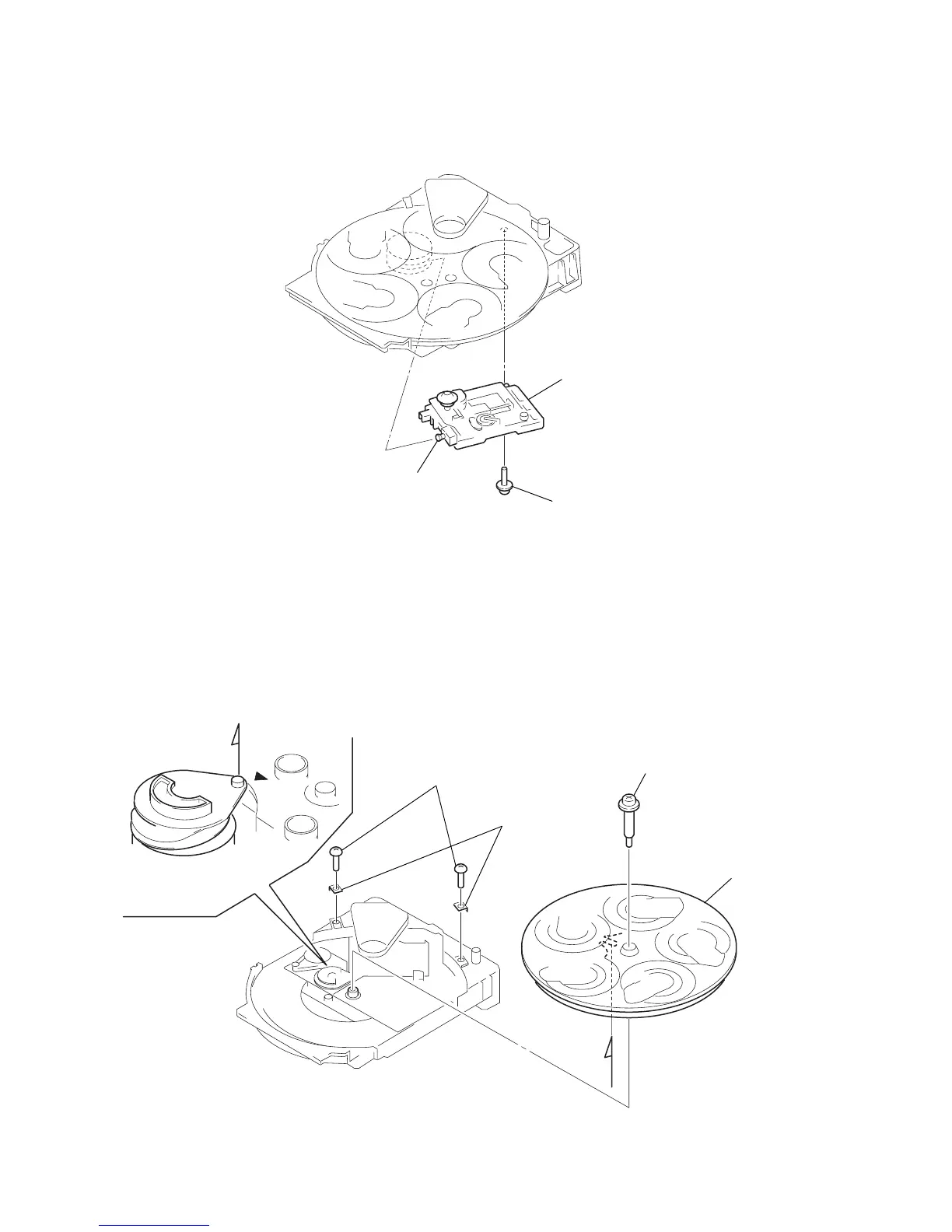

3-8. BASE UNIT (BU-5BD32L)
3 base unit
(BU-5BD32L)
1 BU fitting scre
w
2 boss
3-9. DISC TABLE
Note: When the disc table is installed, adjust the positions of roller cam
and mark B as shown in the figure, then set to the groove of disc
table.
1 two screws
(BVTP3 × 8)
A
2 two brackets (BU)
3 step screw
4 disc tabl
e
A
