HCD-XG60/XG500

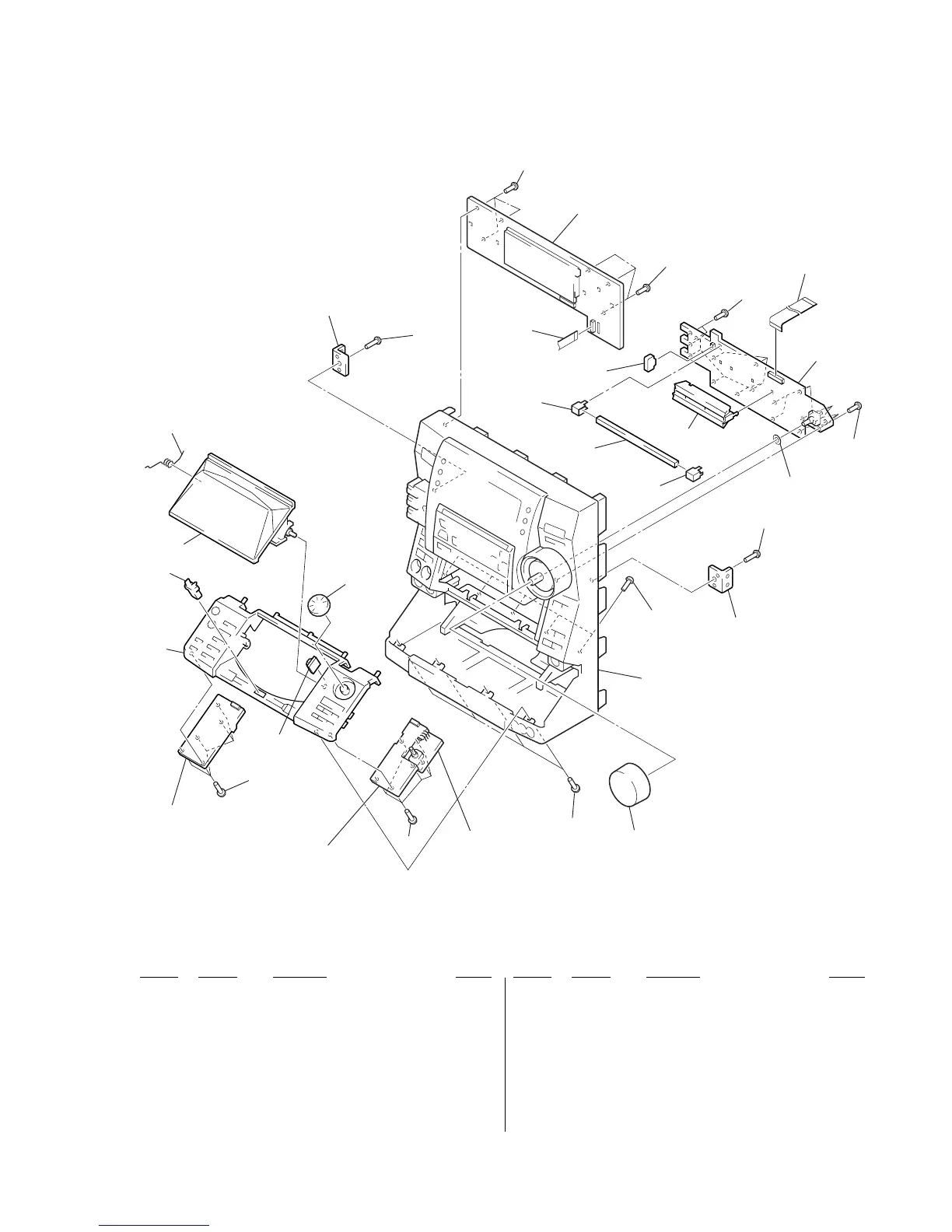

8-3. FRONT PANEL SECTION-2
not supplied
(CD-L board)
not supplied
(CD-R (1) board)
not supplied
(CD-R (2) board)
not supplied
not
supplied
not supplie
d
(PANEL VR
board)
supplied with S736
not supplied
not supplied
not supplied
(ILLUMINATION board)
101
101
115
102
103
104
106
107
105
114
113
101
110
115
111
101
109
115
101
101
101
112
108
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 4-951-620-01 SCREW (2.6X8), +BVTP
102 4-224-104-11 DAMPER
103 X-4953-374-1 PANEL (CD) ASSY, SUB
104 4-040-472-01 LATCH, D. C.
105 4-232-068-01 KNOB (CD)
106 X-4953-377-1 LID (CD) ASSY
107 4-232-086-01 SPRING (CD)
108 A-4475-540-A PANEL FL BOARD, COMPLETE
109 1-751-688-11 WIRE (FLAT TYPE) (13 CORE)
110 4-232-072-01 INDICATOR (ILLUMI)
111 4-232-078-01 HOLDER (LED)
112 1-773-150-11 WIRE (FLAT TYPE) (21 CORE)
113 X-4953-363-1 PANEL ASSY, FRONT (US, CND)
113 X-4953-364-1 PANEL ASSY, FRONT (AEP, UK)
113 X-4953-365-1 PANEL ASSY, FRONT (XG60)
114 4-232-066-01 KNOB (VOL)
115 4-951-620-11 SCREW (2.6X10), +BVTP
