HCD-XG60/XG500
2626

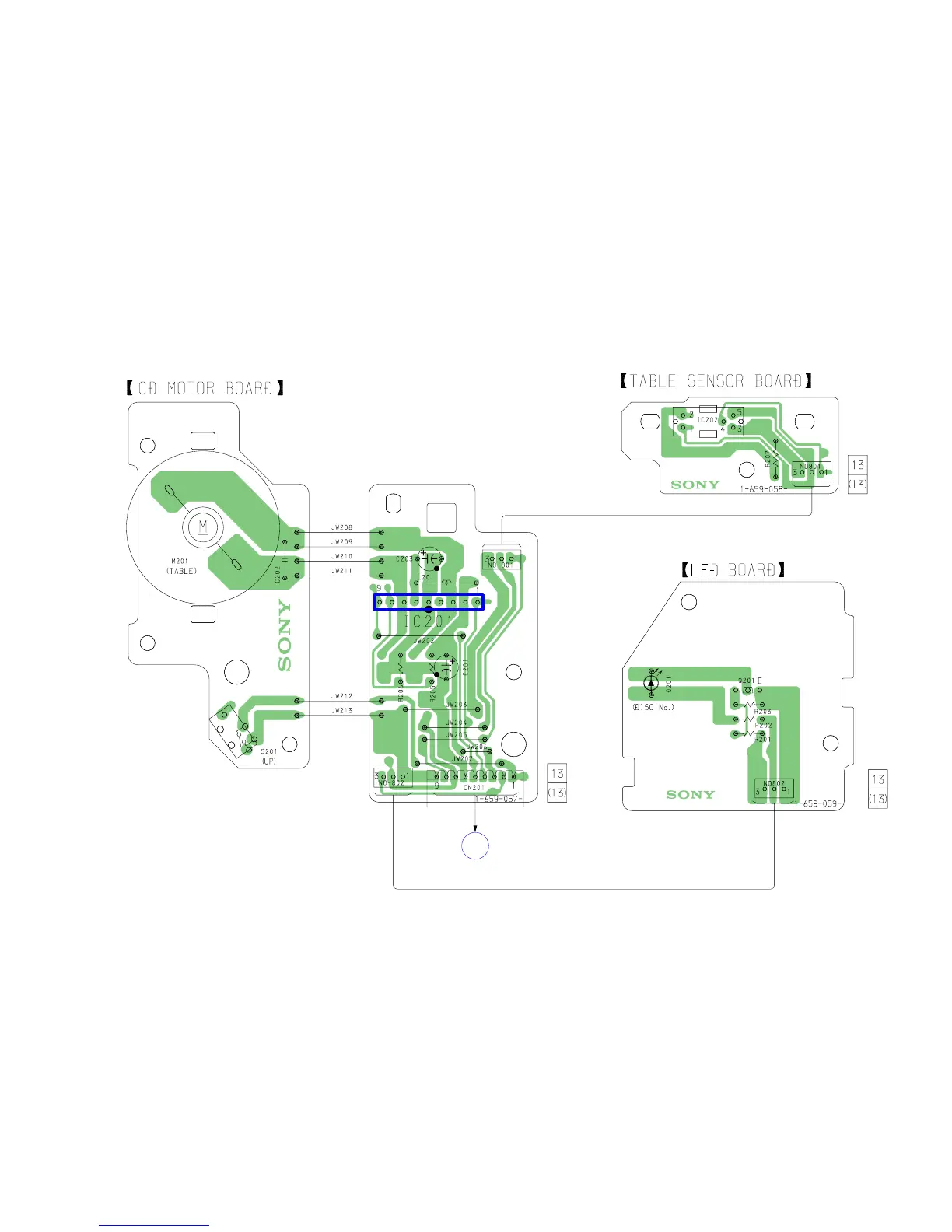

7-8. PRINTED WIRING BOARDS – CD MOTOR Section –• See page 23 for Circuit Boards Location.
B
MAIN BOARD
CN412
(Page 34)
