HCD-XG60/XG500
3131

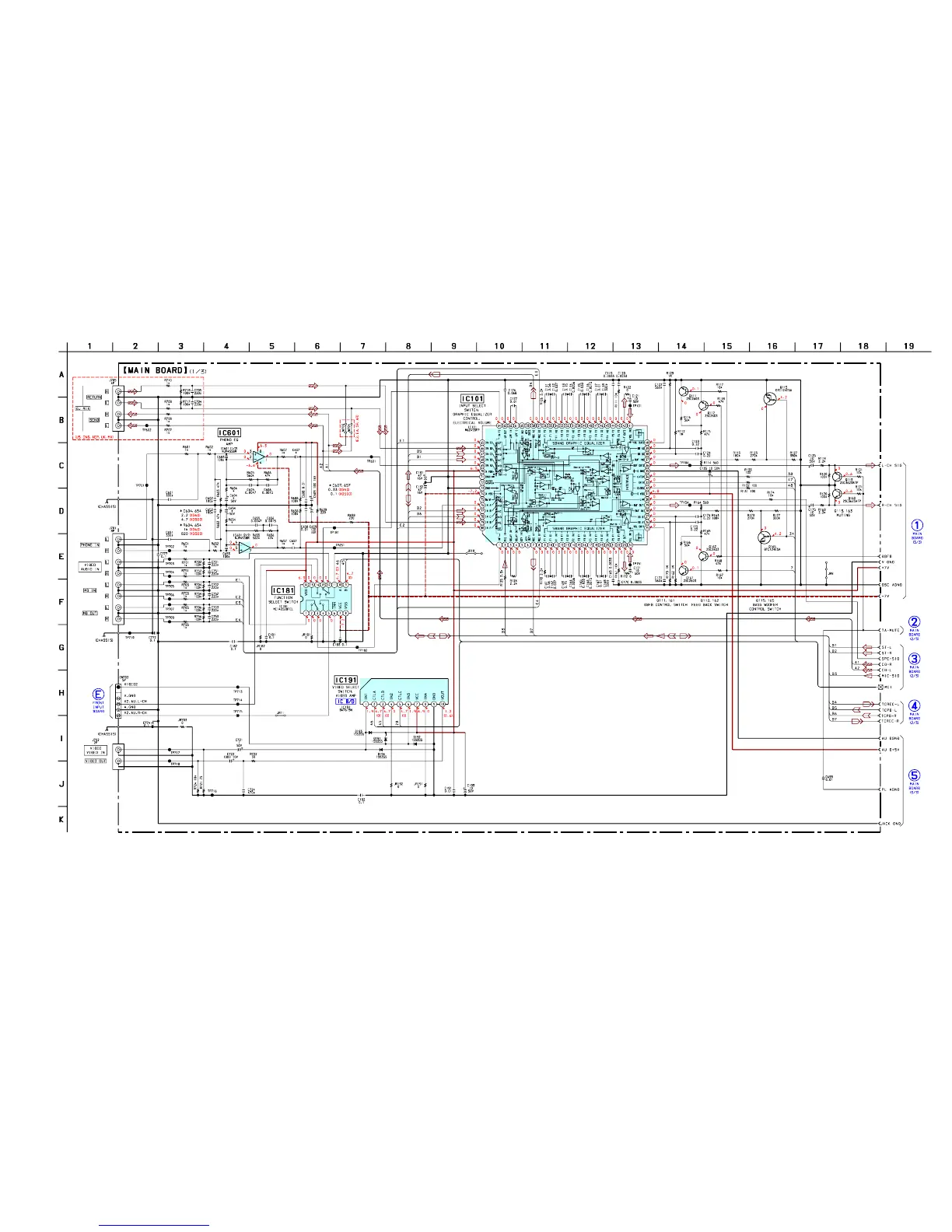

7-14. SCHEMATIC DIAGRAM – MAIN Board (1/3) – • See page 47 for IC Block Diagram.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark : TUNER (FM/AM)
( ) : VIDEO
(Page 39)
(Page 33)
(Page 32)
(Page 32)
(Page 32)
(Page 33)
