56
HCD-XG60/XG500

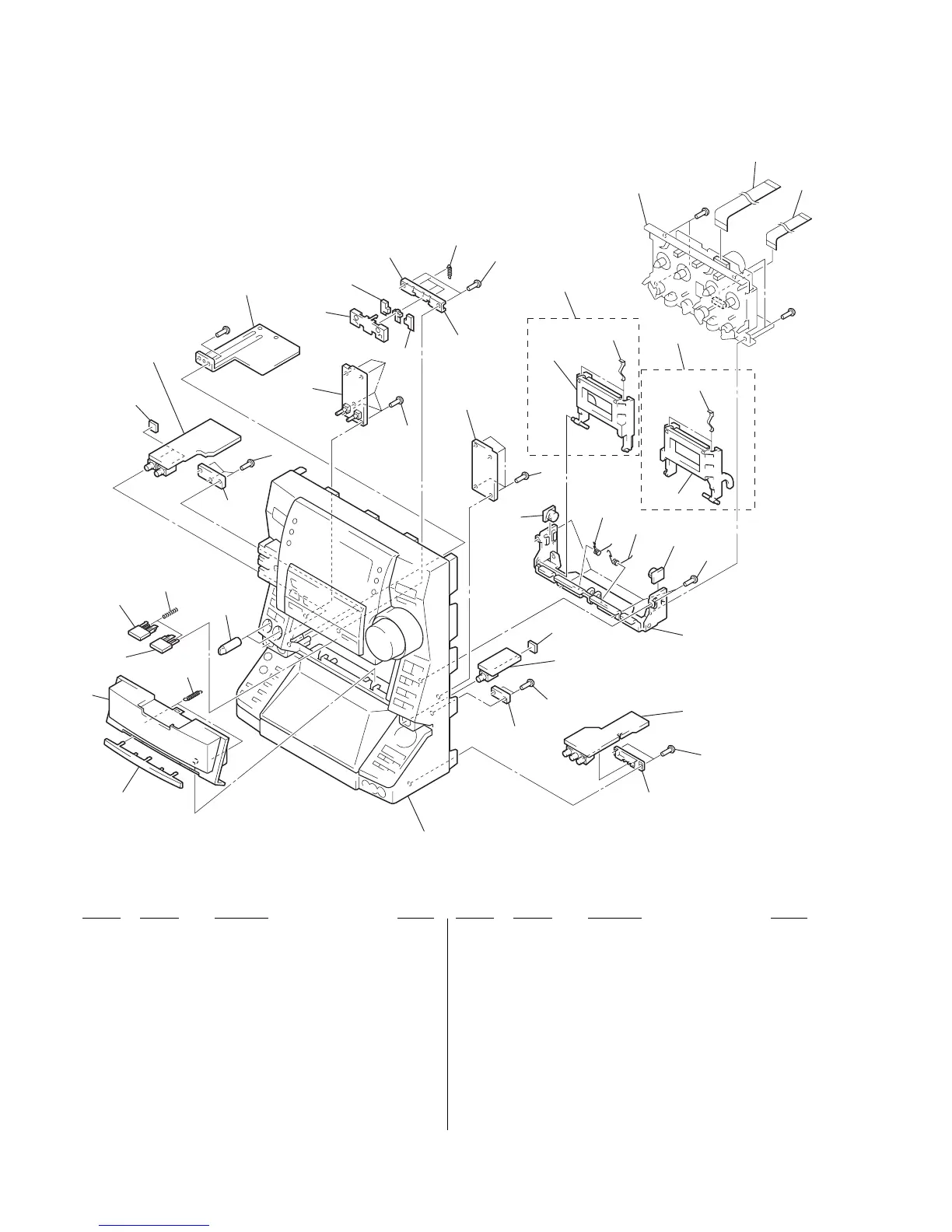

8-2. FRONT PANEL SECTION-1
51
52
53
56
57
58
59
55
54
not
supplied
not
supplied
not supplied
(MIC board)
not supplied
(TC-A board)
not supplied
(TC-B board)
not supplied
#3
#3
TCM-230PWR42
not supplied
#3
60
61
63
58
64
72
73
66
65
58
58
62
65
68
70
69
67
71
69
58
58
58
not supplied
not
supplied
not supplied
Front panel section-2
not supplied
(HEAD PHONE board)
not supplied
(FRONT INPUT board)
not supplied
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
51 4-232-080-01 COVER (TC)
52 X-4953-376-1 LID (TC) ASSY
53 4-232-085-01 SPRING (TC-LID)
54 4-232-070-01 KNOB (TC-B)
55 4-232-069-01 KNOB (TC-A)
56 4-226-537-01 SPRING (TC EJECT), COIL
57 4-232-067-01 KNOB (MIC)
58 4-951-620-01 SCREW (2.6X8), +BVTP
59 4-226-883-01 COVER (EJECT)
60 4-226-880-01 LEVER (EJECT-A)
61 4-226-882-01 LEVER (EJECT-C)
62 4-226-881-01 LEVER (EJECT-B)
63 4-226-889-01 SPRING (LEVER)
64 X-4952-464-1 HOLDER (DECK-A) ASSY
65 4-959-229-11 DETENT, CASSETTE
66 4-225-509-01 HOLDER (DECK-A)
67 X-4952-465-1 HOLDER (DECK-B) ASSY
68 4-225-510-01 HOLDER (DECK-B)
69 4-224-104-11 DAMPER
70 4-235-715-01 SPRING (TC-A)
71 4-235-716-01 SPRING (TC-B)
72 1-773-056-11 WIRE (FLAT TYPE) (17 CORE)
73 1-773-032-11 WIRE (FLAT TYPE) (15 CORE)
