HCD-XG60/XG500
3535
There are a few cases that the part isn't mounted in model
is printed on diagrams.
• Semiconductor
Location
Ref. No. Location
D191 C-8
D192 C-8
D193 B-8
D194 C-8
D501 J-8
D534 H-8
D801 J-8
D802 I-9
D803 I-9
D804 J-9
D805 I-9
D806 I-8
D807 J-10
D808 J-7
D911 F-11
D912 G-11
D913 G-11
D931 H-11
D951 C-12
IC101 E-5
IC181 C-7
IC191 C-8
IC301 H-4
IC501 H-7
IC601 C-3
IC781 B-13
IC801 J-9
IC901 D-12
IC911 F-11
IC931 H-12
IC932 H-12
IC933 I-12
IC951 C-12
Q111 E-7
Q112 E-7
Q113 E-7
Q115 E-6
Q161 E-6
Q162 F-6
Q163 F-6
Q165 F-5
Q331 J-4
Q332 J-4
Q333 J-4
Q334 J-4
Q335 J-5
Q336 J-4
Q339 J-5
Q801 I-8
Q802 J-10
Q803 J-10
Q804 I-10
Q901 D-13
Q902 C-13
Q903 C-12
Q904 C-12
Q905 C-13
Q906 C-13
Q911 G-11
Q912 F-11
Q913 G-11
Q914 G-11
Q931 H-11
Q932 H-11
Q961 B-12
Q962 B-12

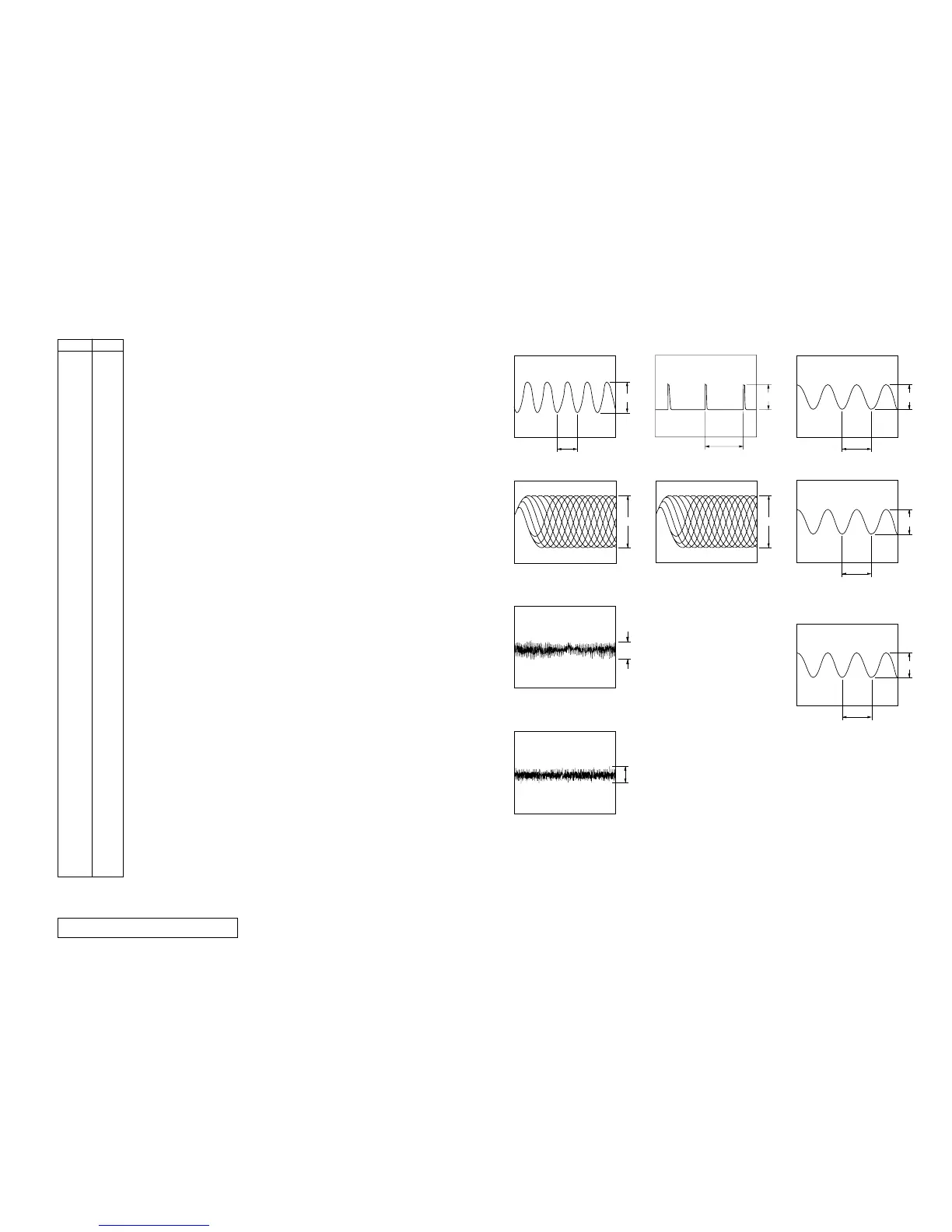

• Waveforms
– BD Board –
1 IC101 yj (XTAO)
5 IC101 wh (MDP) (CD Play Mode)
2 IC101 ta (RFAC) (CD Play Mode)
3 IC101 ra (TE) (CD Play Mode)
4 IC101 el (FE) (CD Play Mode)
6 IC103 qh (RFO) (CD Play Mode) 2 IC501 qg (X-IN)
– MAIN Board –
1 IC501 0 (XC-IN)
3.1 Vp-p
59 ns
1.2 Vp-p
0.2 Vp-p
0.5 Vp-p
2.5 Vp-p
7.8 µs
1.3 Vp-p
1.8 Vp-p
30.5 µs
1.8 Vp-p
62.5 ns
– PANEL FL Board –
1 IC601 u; (XIN)
3.7 Vp-p
80 ns
