Sony HT-CT500 - Page 31

31
GB
Getting Started
Connecting a component to the VIDEO 2 IN jacks

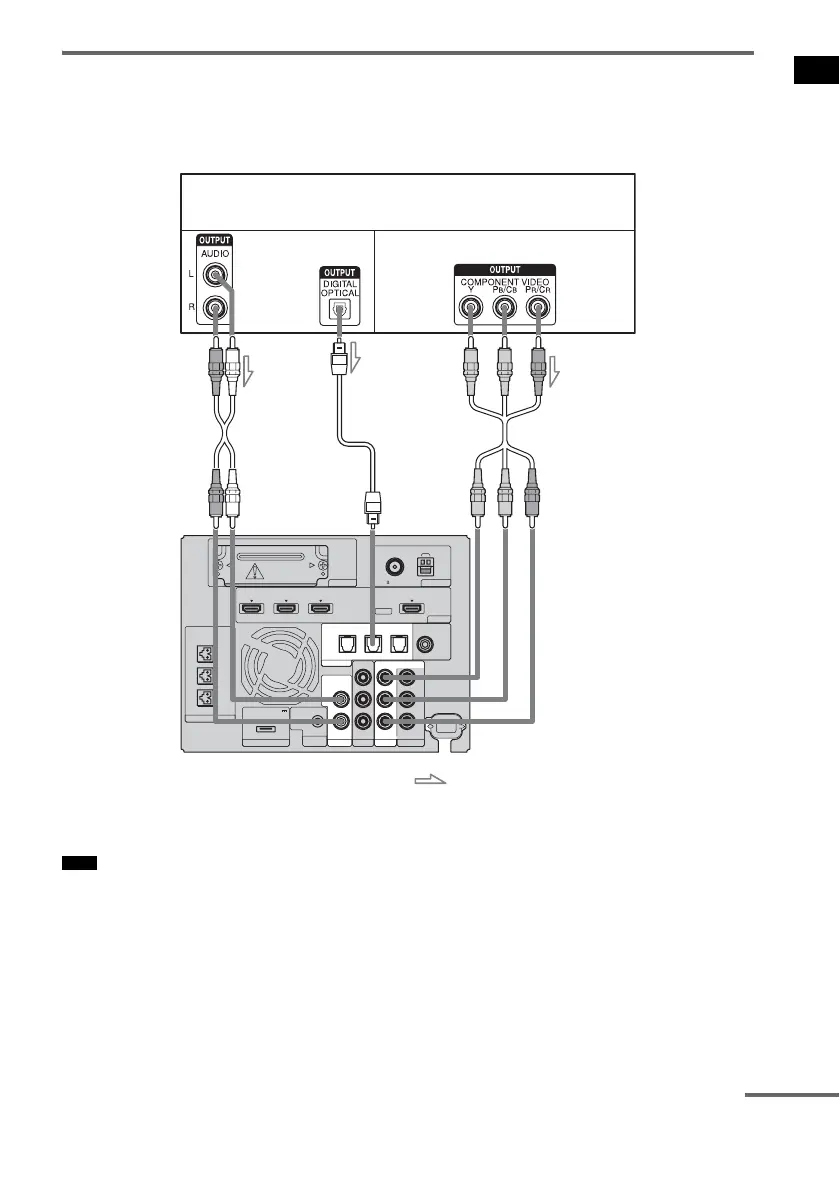

The following illustration shows how to connect a component to the VIDEO 2 IN jacks.
You can reassign the analog audio input using the TV ASSIGNABLE AUDIO IN jacks if they are not
used to connect to a TV. For details, see “Reassigning the audio input” (page 81).
• The DIGITAL OPTICAL IN jacks have priority over the TV ASSIGNABLE AUDIO IN jacks when you connect
a component to the system using both jacks.
Note
EZW-T100 ANTENNA
HDMI
SPEAKER
TV OUTSAT/CATV INDVD IN
CENTER
ONLY FOR SS-CT500
ASSIGNABLE
AUDI O IN
L
R
AUDI O IN
VIDEO IN COMPONENT VIDEO IN
R
L
R
L
BD IN
AM
FM
75 COAXIAL
DMPORT TV
REMOTE
CTRL
VIDEO 1
DC 5V
0.7A MAX
ONLY FOR
SS-CT500
VIDEO 2
OPTICAL
TV IN
COAXIAL
VIDEO 2 IN VIDEO 3 IN VIDEO 3 IN
DIGITAL
Y
VIDEO 3
PB/
C
B
PR/
C
R
DVD player (recorder), “PlayStation 2,”
satellite/cable television tuner, etc.
A
A Audio cord (not supplied)
B Digital optical cord (not supplied)
C Component video cable (not supplied)
Video signal
: Signal flow
B
Audio signal
Rear of the
subwoofer
or
C
continued
