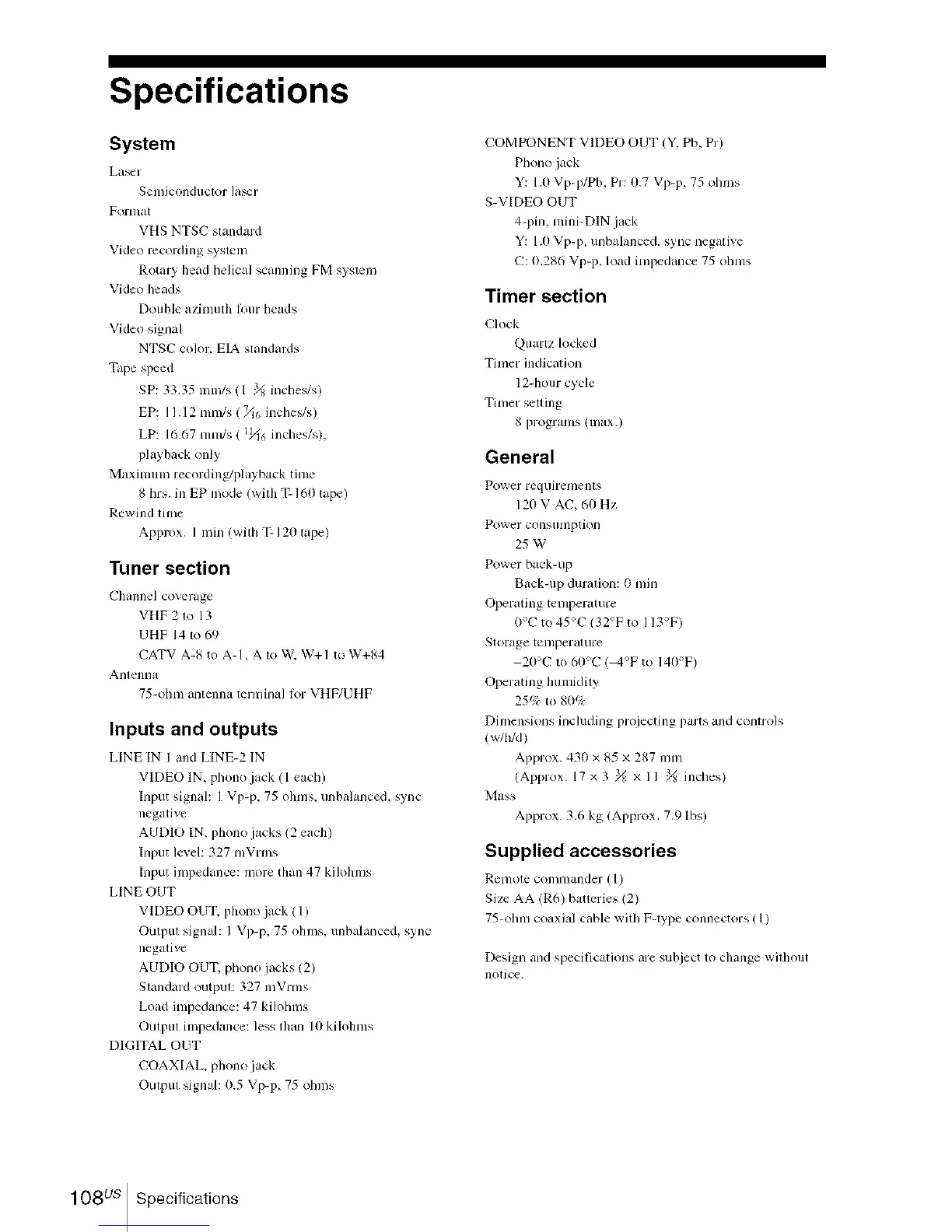

Specifications
System
Lair
Sell/Jcondt]ctor ]a_r
Fornla[
VHS NTSC skmdm'd
Video lvcording system
Rotary head helical scanning FM system
Video beads
Double azimmh Ibm"beads
Video signal
NTSC color, EIA standards
Tape speed
SP: 33.35 nml/s (1 _ inches/s)
EP: I1.12 mm/s ( _6 inches/s)
LP: 16.67 mm/s ( 11_6inclles/s),
playback only
Maxinmnl recording/playback time
8 hrs. in EP nlode (with T-160 tape)
Rewind time
Approx. I rain (with T- 12{Itape)
Tuner section
Channel coxerage
VHF 2 to 13
UHF 141o 69
CATV A-g to A-I_ A to W, W+I to W+84
anlenn_l
75-ohm antenna terminal l_r VHF/UHF
Inputs and outputs
LINE IN 1 and LINE-2 IN
VIDEO IN, phono jack (1 each)
Input signal: I VI> p, 75 ohms, unbalanced, sync
negative
AUDIO IN, phono jacks (2 each)
Input level: 327 mVrms
Input iml3edance: more titan 47 kilolnns
LINE OUT
VIDEO OUT, phono jack (1)
Output signal: I Vp-p, 75 ohms, unbalanced, sync
negative
AUDIO OUT, phono jacks (2)
Standard output: 327 nlVrnls
Load impedance: 47 kilohms
Oulpul impedance: less llmn 10 kilobms
DIGITAL OUT
COAXIAL, phono jack
Outpul signal: 0.5 Vp-I?, 75 olmls
COMPONENT VIDEO OUT (Y, Pb, Pr)
Phono jack
Y: 1.0 Vp-I?/Pb. Pr: 0.7 VI>I3, 75 olnns
S-VIDEO OUT
4-pin. nfini-DlN .jack
Y: 1.0 Vp-p, unbalanced, sync negative
C: 0.286 Vp-p, load impedance 75 olnns
Timer section
Clock
Quartz locked
Timer indicalion
12-hour cycle
Tinier selling
8 programs (max.)
General
Power requhenlents
120V AC. 60Hz
Power consunlplion
25 W
Power back-up
Back-up duration: 0 rain
Operating tcnlperature
0°C to 45°C 132°F to I13°F)
Storage tcnlperamre
20°C to 60°C ( 4°F to 140°F)
Opert_ting Immidity
25% to 80%
Dimensions including projecting parts and conlrols
(w/hid)
Approx. 43(1 x 85 x 287 mm
(Approx. 17 x 3 _ x 11 _ inches)
M_Jss
Approx. 3.6 kg (Approx. 7.9 lbs)
Supplied accessories
Remole conlmander (1)
Size AA (R6) batteries (2)
75-ohm coaxial cable wilh F-lype connectors ( 1)
Design and specifications are subject to change without
notice.
