Sony SLV-D271P - Index to parts and controls; Front panel

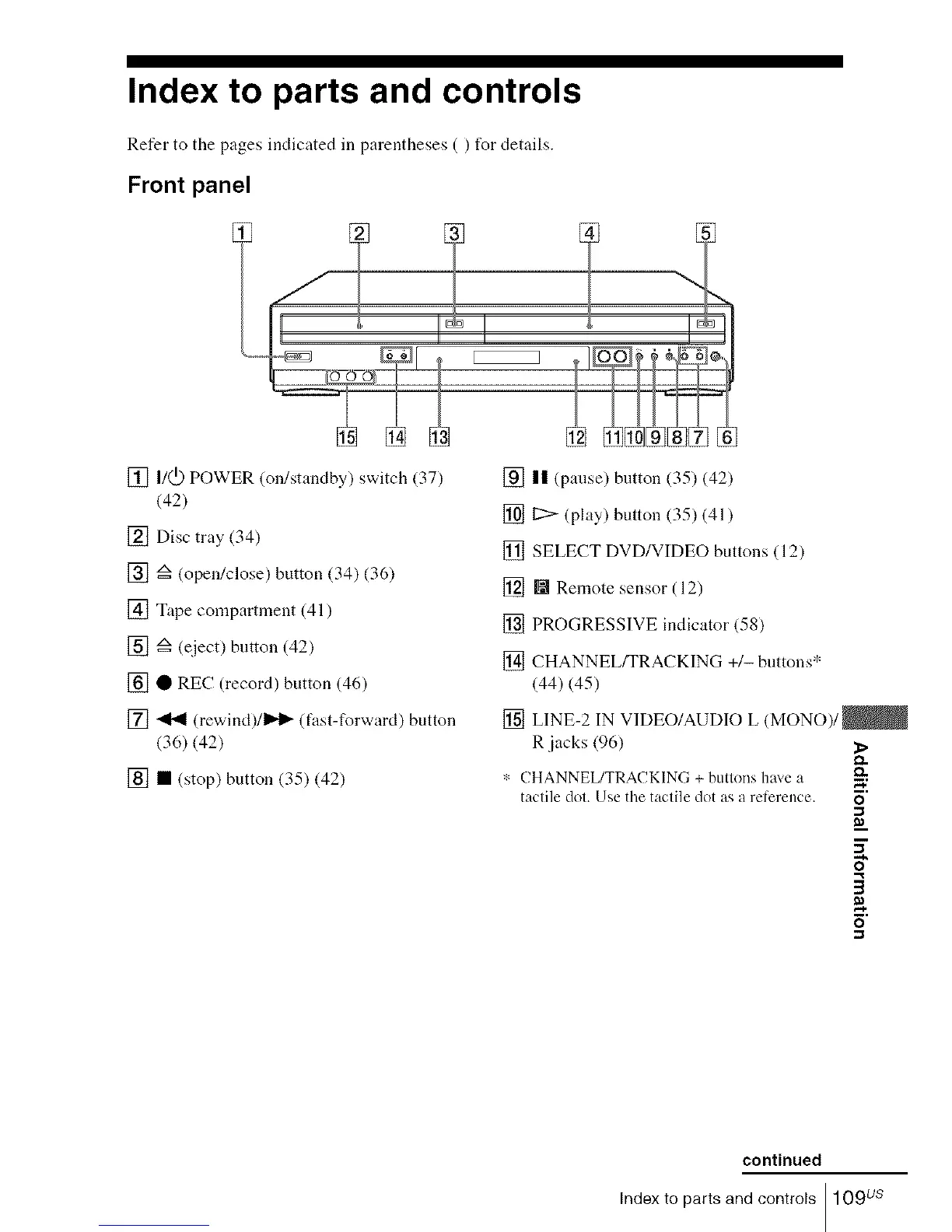

Index to parts and controls
Refer to the pages indicated in parentheses ( ) for details.
Front panel
[] I/Q) POWER (on/standby) switch (37)
(42)
[] Disc tray (34)
[] =z_(open/close) button (34) (36)
[] Tape compartment (41)
[] =z_(eject) button (42)
[] • REC (record) button (46)
[] _ (rewind)/llH_ (fast-forward) button
(3(,) (42)
[] • (stop) button (35) (42)
[] II (pause) button (35) (42)
[] [2> (play) button (35) (41)
[] SELECT DVD/VIDEO buttons (12)
[] IN Remote sensor (12)
[] PROGRESSIVE indicator (58)
[] CHANNEL/TRACKING +/- buttons*
(44) (45)
[] LINE-2 IN VIDEO/AUDIO L (MONO)/_
R jacks (9(,) _,
* CHANNEL/TRACKING + buttons have a
taclile dol. Use tile taclile dot as a reference. _"
-,,I
8"
continued
Index to parts and controls 109 us
