Advanced Hookups

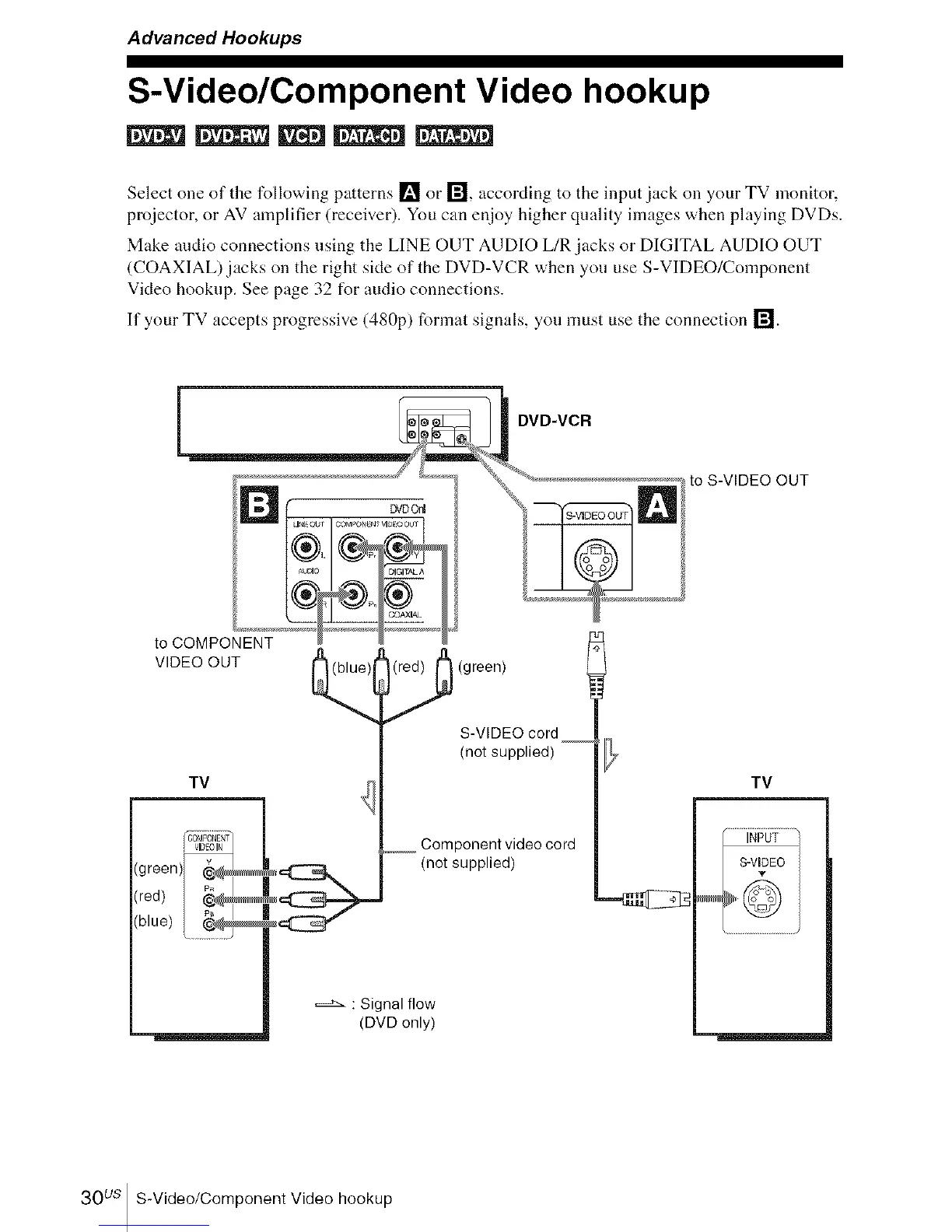

S-Video/Component Video hookup
Select one of the following patterns [] or I'ffl, according to the input jack on your TV monitor,
projector, or AV amplifier (receiver). You can enjoy higher quality images when playing DVDs.
Make audio connections using the LINE OUT AUDIO L/R jacks or DIGITAL AUDIO OUT
(COAXIAL) jacks on the right side of the DVD-VCR when you use S-VIDEO/Component
Video hookup. See page 32 for audio connections.
If your TV accepts progressive (480p) format signals, you must use the connection ri'l.
toooMPo ......
VIDEO OUT _ _ (green)
TV
S-VIDEO cord __
(not supplied)
_o__ Component video cord
(not supplied)
: Signal flow
(DVD only)
TV
30 us S-Video/Component Video hookup
