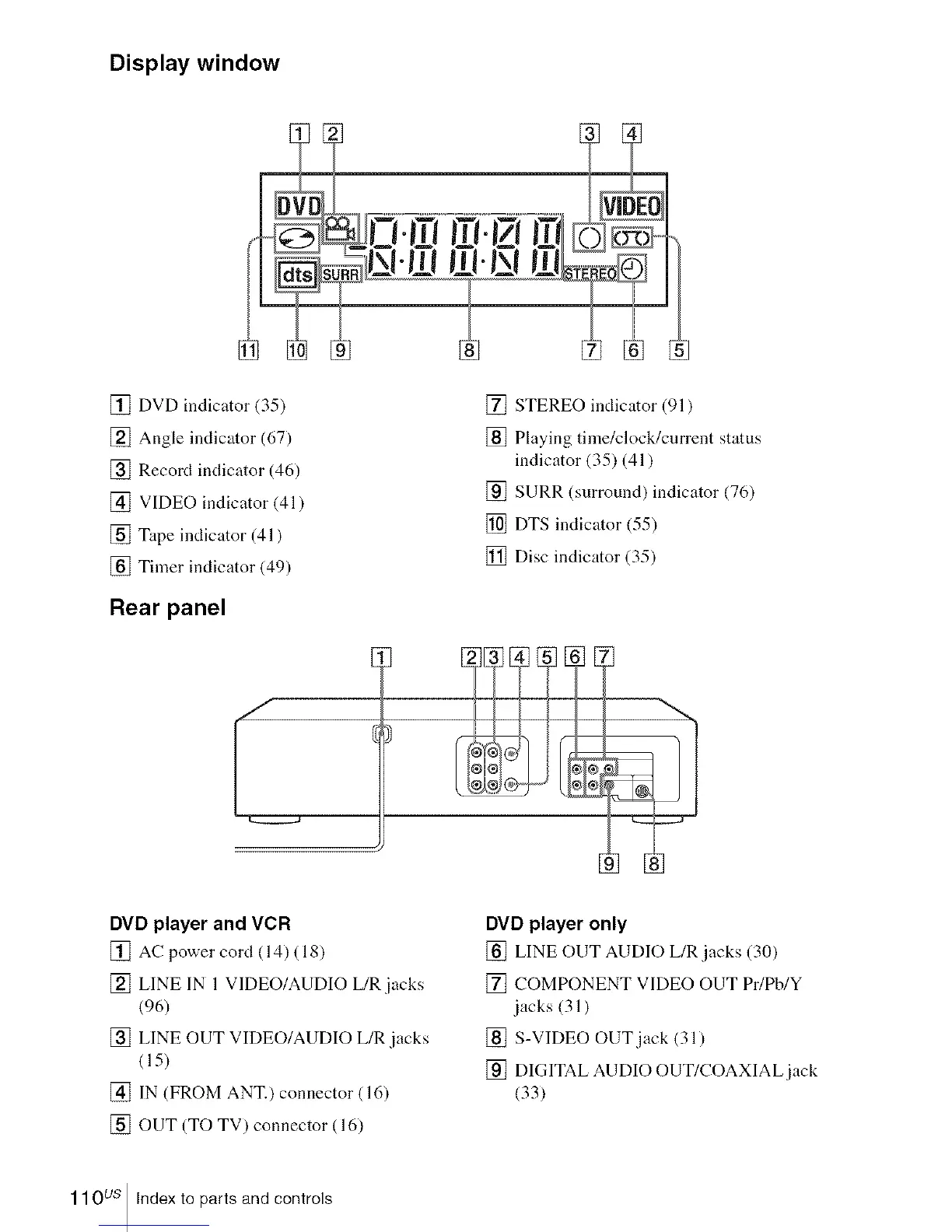

Display window
[] DVD indicator (35)
[] Angle indicator (67)
[] Record indicator (46)
[] VIDEO indicator (41)
[] Tape indicator (41)
[] Timer indicator (49)
Rear panel
E]
[] STEREO indicator (91)
[] Playing time/clock/current status
indicator (35) (41)
[] SURR (surround) indicator (76)
[] DTS indicator (55)
[] Disc indicator (35)
DVD player and VCR
[] AC power cord (14) (18)
[] LINE IN l VIDEO/AUDIO L/R jacks
(96)
[] LINE OUT VIDEO/AUDIO L/R jacks
(15)
[] IN (FROM ANT.) connector (16)
[] OUT (TO TV) connector (16)
DVD player only
[] LINE OUT AUDIO L/R jacks (30)
[] COMPONENT VIDEO OUT Pr/Pb/Y
jacks (31 )
[] S-VIDEO OUT jack (31)
[] DIGITAL AUDIO OUT/COAXIAL jack
(33)
110us Index to parts and controls
