70 Installation and set-up manual 208668
6. The exhibition stand CRANEX Novus e

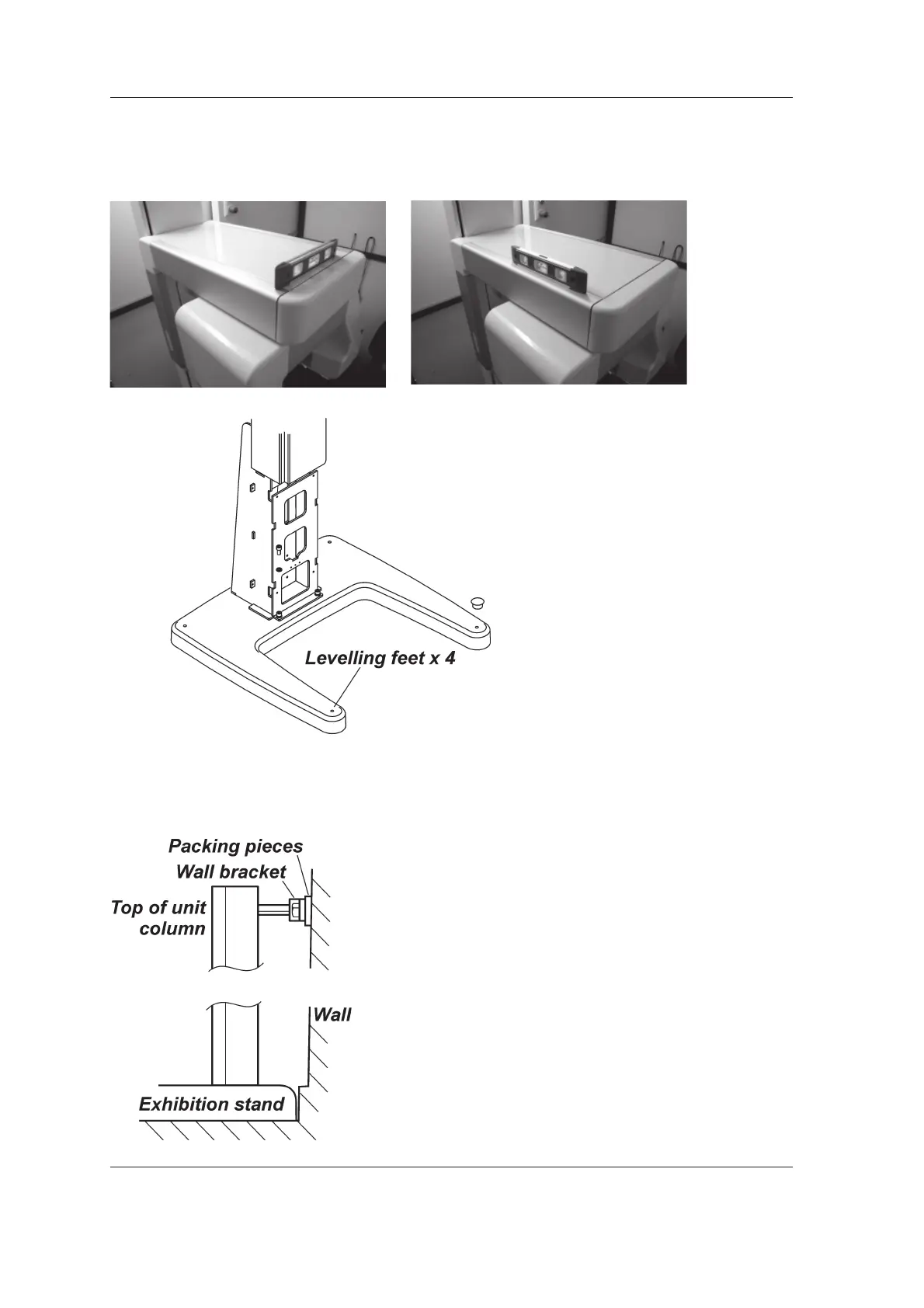

11. Remove all the packaging material from
the C-arm and then place a spirit level fi rst
widthwise and then lengthwise on the upper
shelf to check that the unit is level.
If the unit is not level, level it by turning the
levelling feet in the base of the exhibition
stand.
Insert cover plugs after the unit has been
levelled.
12. OPTIONAL STEP
If the unit has to be fi xed to the wall follow the
instructions in section 3.2 Attaching the unit
to the wall, step 2 onwards.
IMPORTANT NOTE:
If you fi nd that you cannot position the base of
the unit near enough to the wall and there is
a gap between the wall bar and the wall use
packing pieces to fi ll the gap and position the
unit correctly.
