3 Getting Started
Item Description
i
Face1 Control Unit or optional Face 1 Battery Compartment
j
Eyepiece

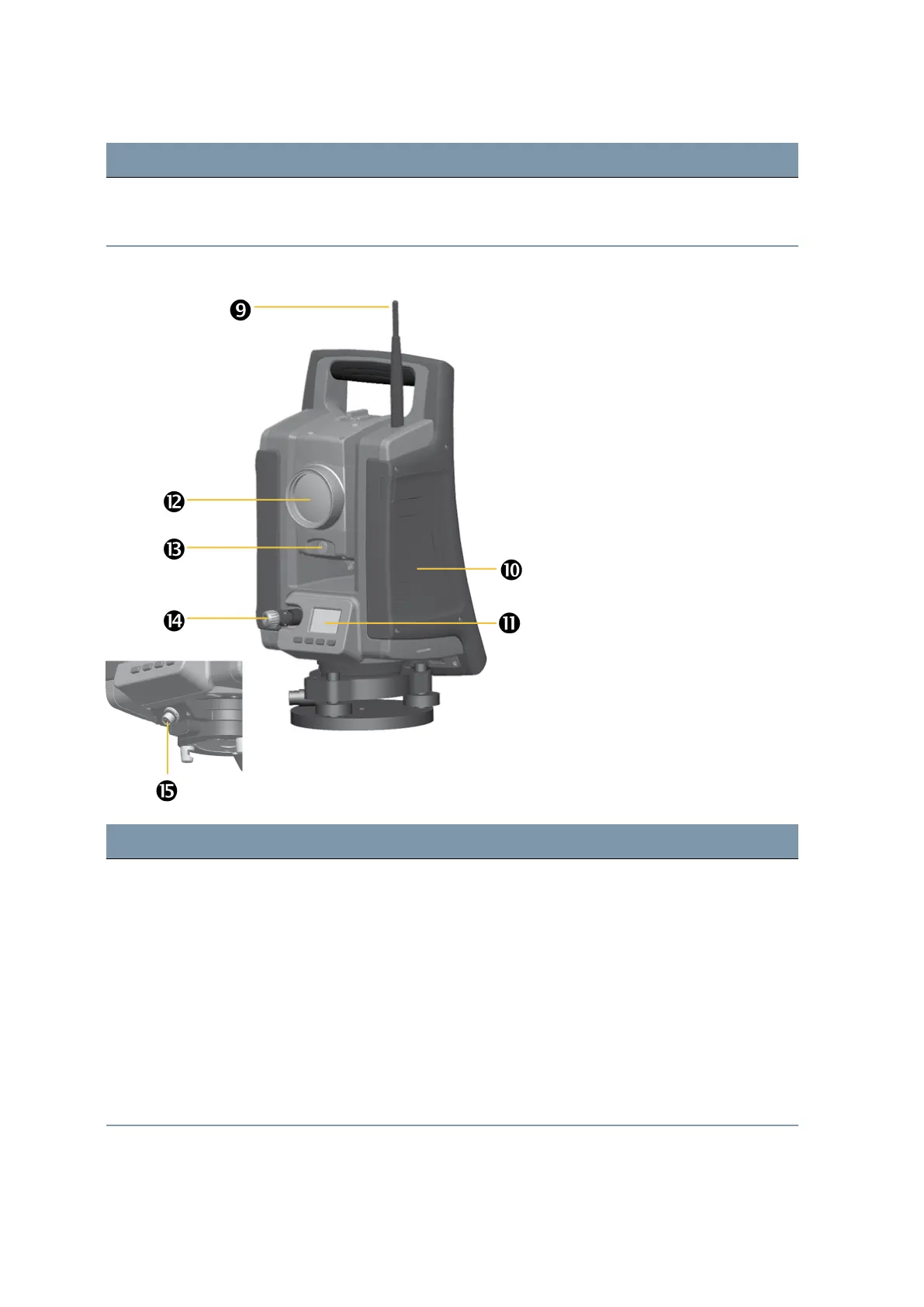

The following is the Front view of the FOCUS 35 Total Station.
Item Description
k
Radio antenna
Radio antenna is not required in the LockNGo model.
l
Compartment for instrument battery
m
Face2 Control Unit
n
Optical plummet
o
Optics for tracklight
p
Coaxial optics for angle and distance measurements, tracker and laser pointer
q
Connector for both communication (COM) and power (12 V)
FOCUS 35 Total Station User Guide | 28
