Chapter 9: Ethernet Cards
LAN Series Modules
108 SmartBits System Reference
LAN-3710A Module

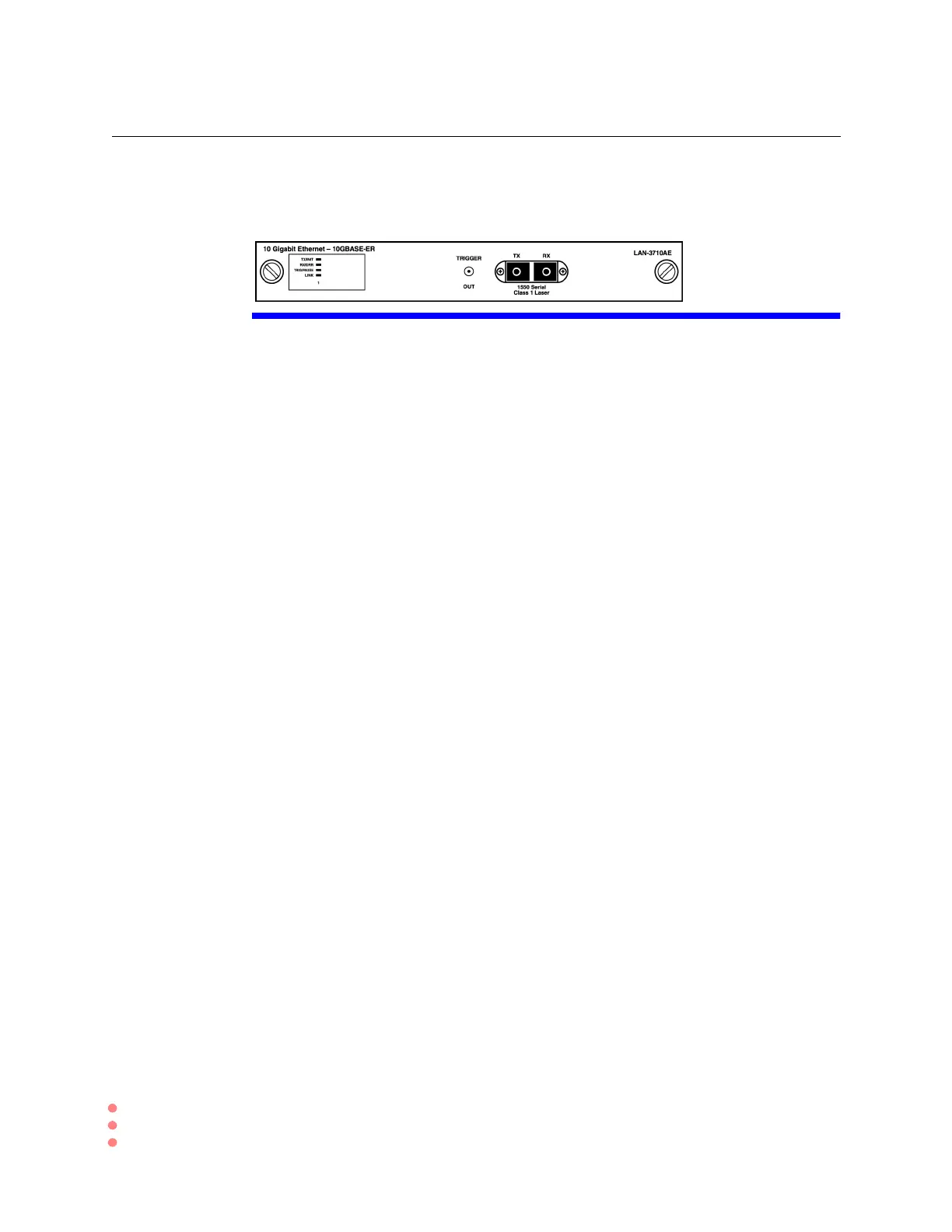

• LAN-3710A 10 Gbps module
Card Type: Ethernet 10 Gbps module.
Where Used: SMB-600 and SMB-6000B.
GBIC accessories (order 2 of each for GBIC):
– ACC-6002A MM – Gigabit Interface Converter (GBIC) Multi-mode.
– ACC-6003A SM – Gigabit Interface Converter (GBIC) Single-mode.
Applications
Supported:
SmartWindow, SmartLib, AST II, and ScriptCenter.
Devices Tested: 10 Gigabit networking devices such as switches and routers.
Primary
Applications:
• Evaluate key performance parameters of 10 Gigabit Ethernet routers and switches
under typical or extreme traffic load conditions.
• Qualify 10 Gigabit Ethernet routers during development, quality assurance, and final
regression testing.
• Perform comparative analysis of 10 Gigabit Ethernet routers.
• Analyze performance under many traffic conditions, both legal and illegal, with easy-
to-customize traffic generation parameters.
• Re-qualify 10 Gigabit Ethernet routers after firmware upgrades.
Features: • Wire-rate traffic analysis and capture with IP checksum error detection.
• Generates/accepts 802.1p, 802.1q, and 802.3ac VLAN tagged frames.
• Provides performance measurement and ineroperability testing for Layer 2 and Layer
3 devices.
• Network-wide Network Layer QoS analysis using IP Precedence bit.
• Generates and responds to 802.3x flow control commands.
• Data Integrity Check detects bit errors in Layer 3 forwarding devices.
• 4 Mbps capture buffer enables the logging and exporting of filtered events to protocol
analysis equipment.
• IP index increments with each frame transmitted.
