Chapter 11: ATM Cards
ATM SmartCards
148 SmartBits System Reference

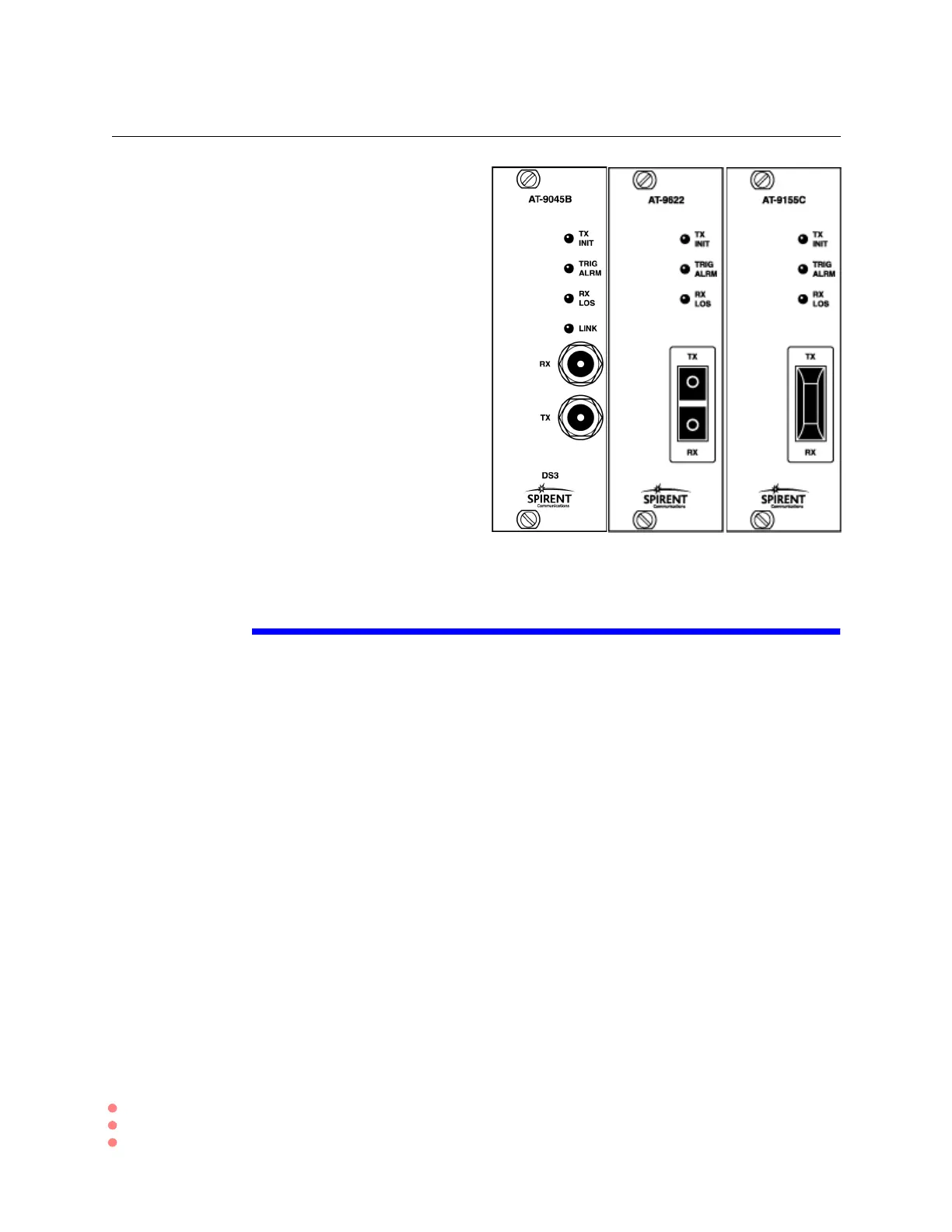

ATM SmartCards
• AT-9015 DS1(1.544 Mbps)
(RJ-45)
• AT-9020E1(2.048Mbps)
(RJ-45)
• AT-9025 (25 Mbps) (RJ-45)
• AT-9034B E3 (34 Mbps)
(BNC)
• AT-9045B DS3 (45 Mbps)
(BNC)
• AT-9155C ATM Multi Mode
Fiber OC-3c/STM-1 (155
Mbps), 1300 nm
• AT-9155Cs ATM Single
Mode Fiber OC-3c/STM-1
(155 Mbps), 1300 nm
• AT-9622 ATM Multi Mode Fiber OC-12c/STM-4 (622 Mbps), 1300 nm
• AT-9622s ATM Single Mode Fiber OC-12c/STM-4 (622 Mbps), 1300 nm
Where Used: SMB-200 and SMB-2000; each card occupies two slots in a chassis.
Devices Tested: ATM-to-LAN internetworking devices, very high performance ATM backbones, xDSL
devices, and LAN-to-ATM edge devices.
Test Objective: To generate and monitor Ethernet LAN-toATM, ATM-to-Ethernet LAN, and ATM-to-
ATM internetworking devices, and very high performance ATM backbones. Frame-level
testing at full-duplex, full-wire rate on edge devices and switches, switch testing at full-
cell rate, and high-rate signaling testing for edge devices. Measures peak call rate and
setup latencies for SVCs.
Applications
Supported:
• SmartWindow, SmartLib, SmartApplications, and SmartSignaling. (SmartxDSL
applications are available only on the AT-9025 25 Mbps Card.)
Features: • Supports frames up to 2,048 PVCs and SVCs (AT-9045B).
• Supports PPP testing with up to 2,048 PPP sessions (AT-9045B).
• Supports LANE testing with up to 8 LECs.
• Supports up to 800 calls per second per port in SmartSignaling (AT-9045B).
• Supports up to 8,388,606 simultaneous virtual circuit connections per port utilizing a
40-port ATM test suite.
