Token Ring Cable and Connector
238 SmartBits System Reference
Token Ring Cable and Connector
The cable specified below uses 4 pair category 5 unshielded twisted pair (UTP) cables
with a patch length of one meter used between the RJ-45 connectors.

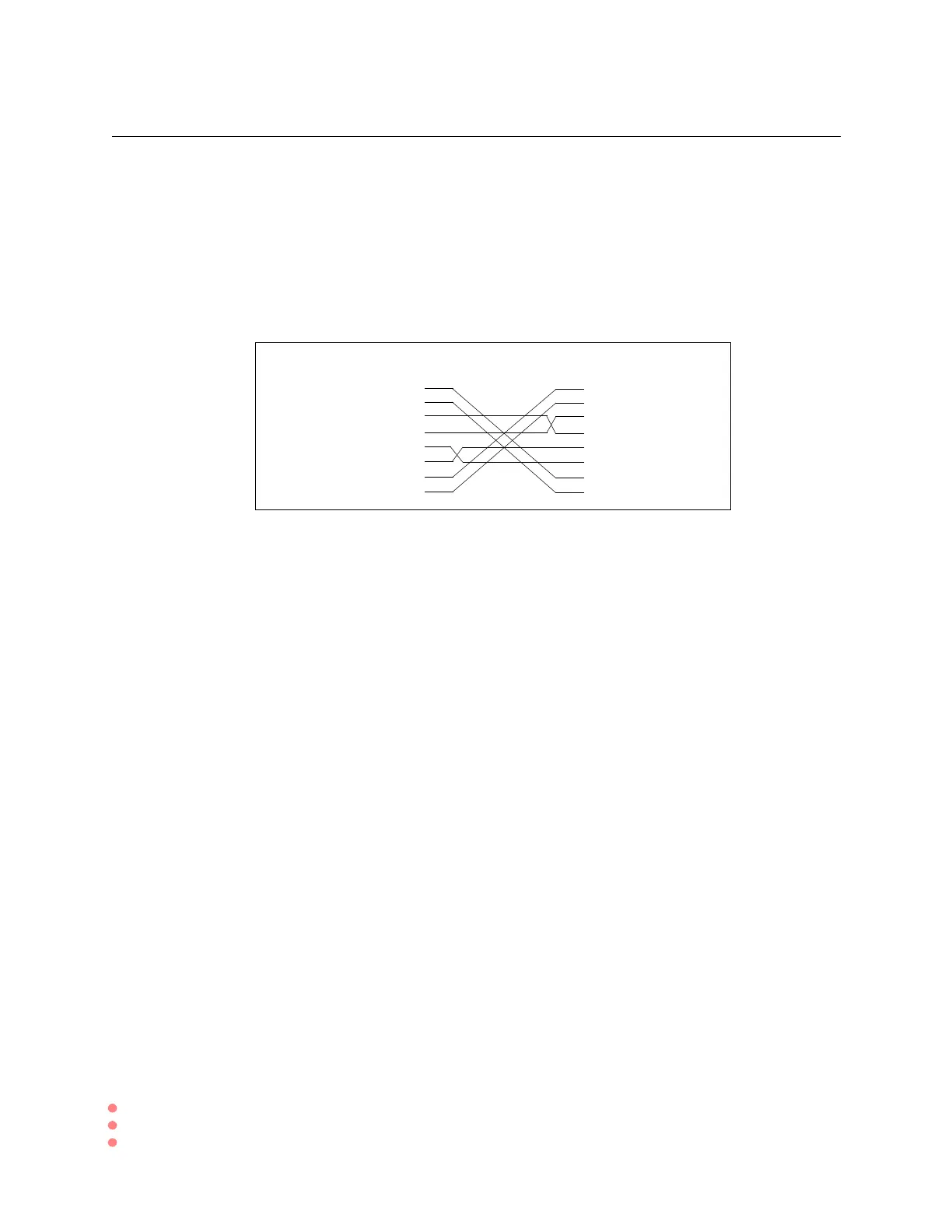

Crossover Token Ring Cable
TokenRingCrossoverCable
_____________________________________________________________
TR-8405 Connector
Connector type: RJ-45 female
Pin Signal
1 No Connection
2 No Connection
3Transmit+
4 Receive +
5 Receive -
6Transmit-
7 No Connection
8 No Connection
Pin Color
1
2
3
4
5
6
7
8
BLUE
BLUE-WHITE
ORANGE
GREEN
GREEN-WHITE
ORANGE-WHITE
BROWN
BROWN-WHITE
Pin
1
2
3
4
5
6
7
8
Color
BLUE
BROWN-WHITE
GREEN
ORANGE
ORANGE-WHITE
GREEN-WHITE
BLUE
BLUE-WHITE
