Chapter 9: Ethernet Cards
ML Series SmartCards
110 SmartBits System Reference
ML Series SmartCards

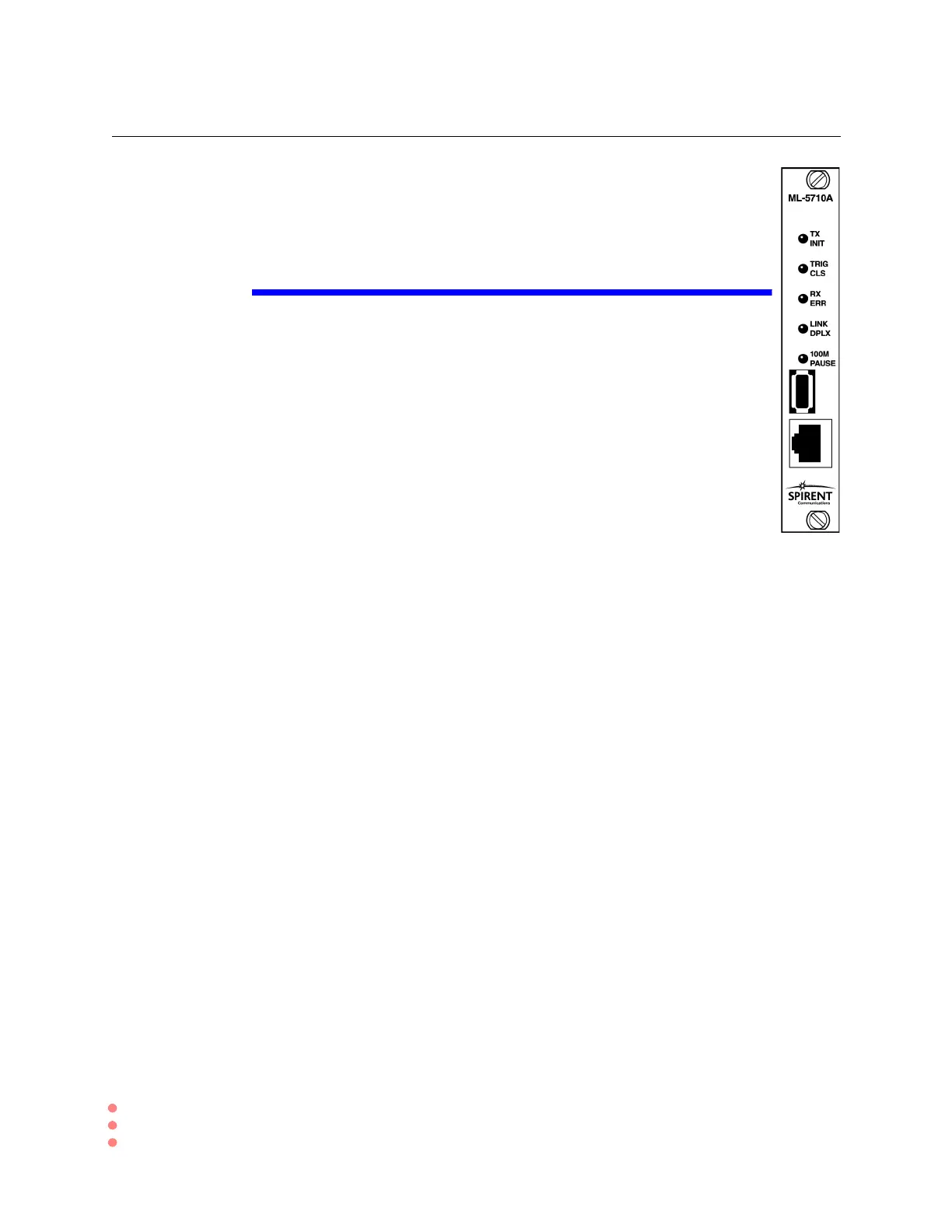

ML-5710A SmartCard
• ML-5710A SmartMetrics 10 Mbps Ethernet
Card Type: SmartMetrics 10 Mbps Ethernet SmartCard; configurable in two modes (10
Mbps Ethernet and USB)
Where Used: SMB-200 and SMB-2000: one port per card; each card occupies one slot in a
chassis.
Applications
Supported:
SmartWindow, SmartLib.
Devices Tested: Ideal for broadband access devices such as cable modem devices.
Test Objective: Implements sophisticated flow-based stream-based traffic generation, while
performing SmartMetrics analysis on receive traffic in real-time and at wire
rate. End-to-end performance analysis of cable modem devices and systems.
Features: • Each port can be configured with up to 1,000 streams or VTE’s (virtual transmit
engine). Each stream generates a customizable stream of Layer 3 data.
• SmartMetrics Testing
• Flow Control (Ethernet only)
• Transmit Error Insertion
• VLAN Tagging
• Background Packet Data Fill Pattern
• Variable Field Data
• Packet Length
• Captured Packets
Additional
Features:
Additional features can be found in the following tables:
• Table 9-1, “Ethernet Cards Used in Applications,” on page 82.
• Table 9-2, “Min/Max Frame Lengths in Bytes for Ethernet Cards,” on page 84.
• Table 9-4, “10/100 Mbps Ethernet Cards – Feature Set for SmartMetrics Cards,” on
page 87.
