Appendix E: SMB-600/6000B Cables and Connectors
SmartBits-to-GPS Receiver Interface
SmartBits System Reference 229
SmartBits-to-GPS Receiver Interface
The serial (AUX) port on the rear panel of the SmartBits chassis connects to the GPS
Receiver’s I/O RS-232C serial interface port via the following modem cable supplied in
the GPS kit.

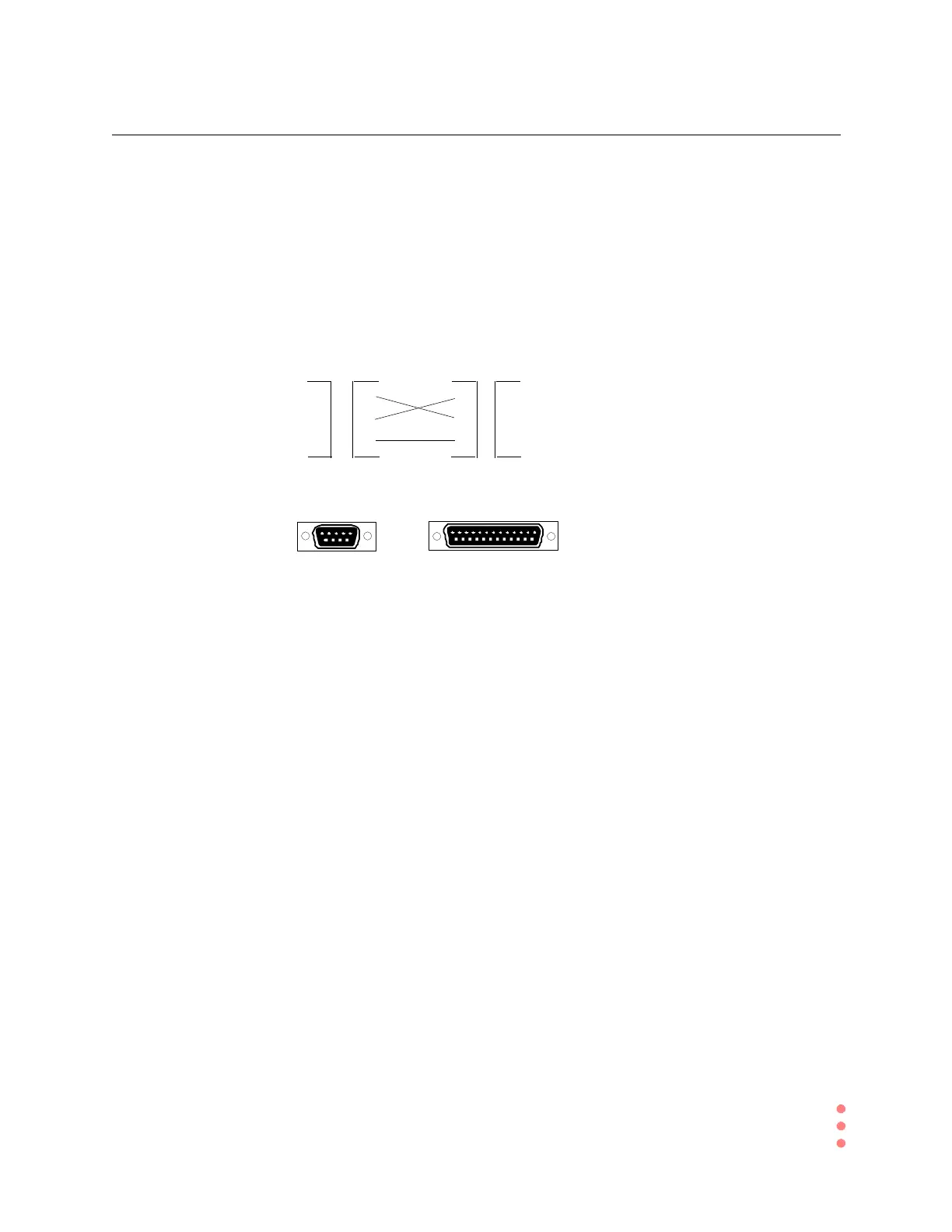

SmartBits P/N 240-0006-001(CC-906) Cable
SmartBits
RS-232
(9-pin)
GPS Receiver
RS-232
(25-pin)
TXD
RXD
GND
TXD
RXD
GND
2
3
5
2
3
7
DB-9
Male/Female
(DCE)
DB-25
Male/Female
(DTE)
