Appendix F: SMB-200/2000 Cables and Connectors
ATM Cables and Connectors
242 SmartBits System Reference
AT-9020 Cable
E1 Crossover Cable (RJ-45 at each end)
_____________________________________________________________
AT-9025 Connector
Connector type: RJ-48F female
Pin Signal
1Transmit+
2Transmit-
3 Not connected
4 Not connected
5 Not connected
6 Not connected
7 Receive +
8 Receive -
_____________________________________________________________
AT-9025 Cable

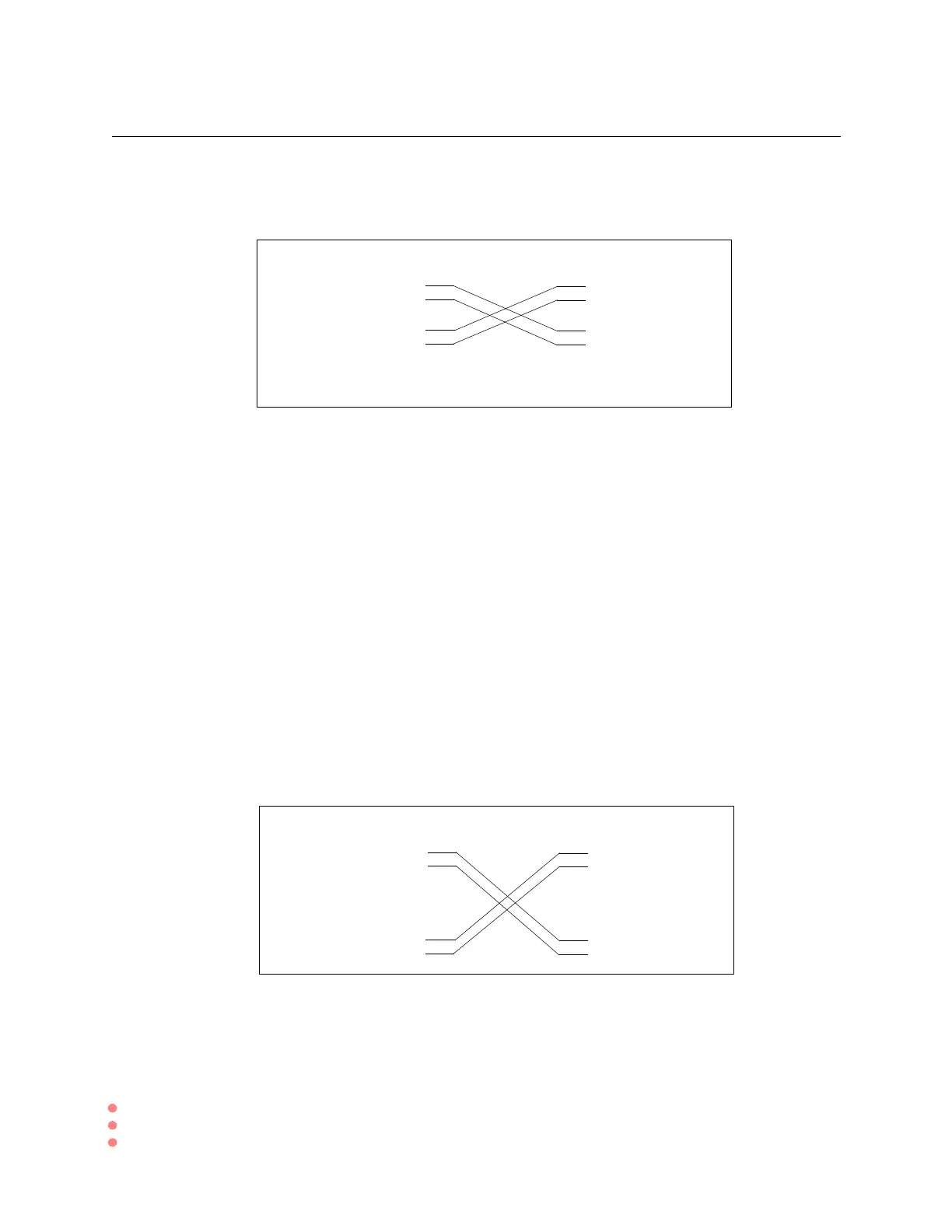

Crossover Cable (RJ-45 at each end)
_____________________________________________________________
Pin Color
1
2
3
4
5
6
7
8
BLUE
BLUE-WHITE
ORANGE
GREEN
GREEN-WHITE
ORANGE-WHITE
BROWN
BROWN-WHITE
Pin
1
2
3
4
5
6
7
8
Color
BLUE
BLUE-WHITE
Not connected
GREEN
GREEN-WHITE
Not connected
Not connected
Not connected
Pin Color
1
2
3
4
5
6
7
8
BLUE
BLUE-WHITE
ORANGE
GREEN
GREEN-WHITE
ORANGE-WHITE
BROWN
BROWN-WHITE
Pin
1
2
3
4
5
6
7
8
Color
BLUE
BLUE-WHITE
Not connected
Not connected
Not connected
Not connected
BROWN
BROWN-WHITE
