Shock pulse monitoring should be started on a small
scale. The best place to start is a ”quiet corner”
where monitoring personnel can train under good
working conditions, without causing an interruption
or being disturbed by others.
Select a few machines and go through all the opera-
tions listed in figure 5. Points 5 and 6 on that list refer,
of course, to manual recording. With CONDMASTER,
you have to learn the functions and possibilities of the
program. Keep working with these machines until you
are satisfied with your measuring routines and can
time the various operations, like adapter installation,
taking readings, recording, etc.
Levels of Skill
Shock pulse monitoring requires two levels of skill:
1 data collection
2 machine condition evaluation.
The term ”data collection” is here used in the sense
of obtaining readings from the measuring points. Data
collection requires moderate skill: familiarity with the
instrument functions described in part 2 of this manual,
with the follow-up form described in this part, and
some hands-on training with the shock pulse and vi-
bration transducers. Experience shows that about nine
tenths of the monitoring work is simple data collec-
tion.
Condition evaluation, necessary on new measuring
points and in case of significant changes in the read-
ings, requires additional skills. While the "data collec-
tor" presents instrument readings, the "machine in-
spector" should be able to provide the maintenance
crew with a detailed description of the nature and
location of the trouble spot.
Finding trouble spots is detective work, where the
shock pulse meter is strictly a tool, used with common
sense and backed up by the operator's experience
with the type of equipment that is being monitored.
An important aspect of monitoring work is to con-
vince others that the readings are both useful and
reliable. Measuring personnel with skills at the "ma-
chine inspector" level will find it easier to be believed.

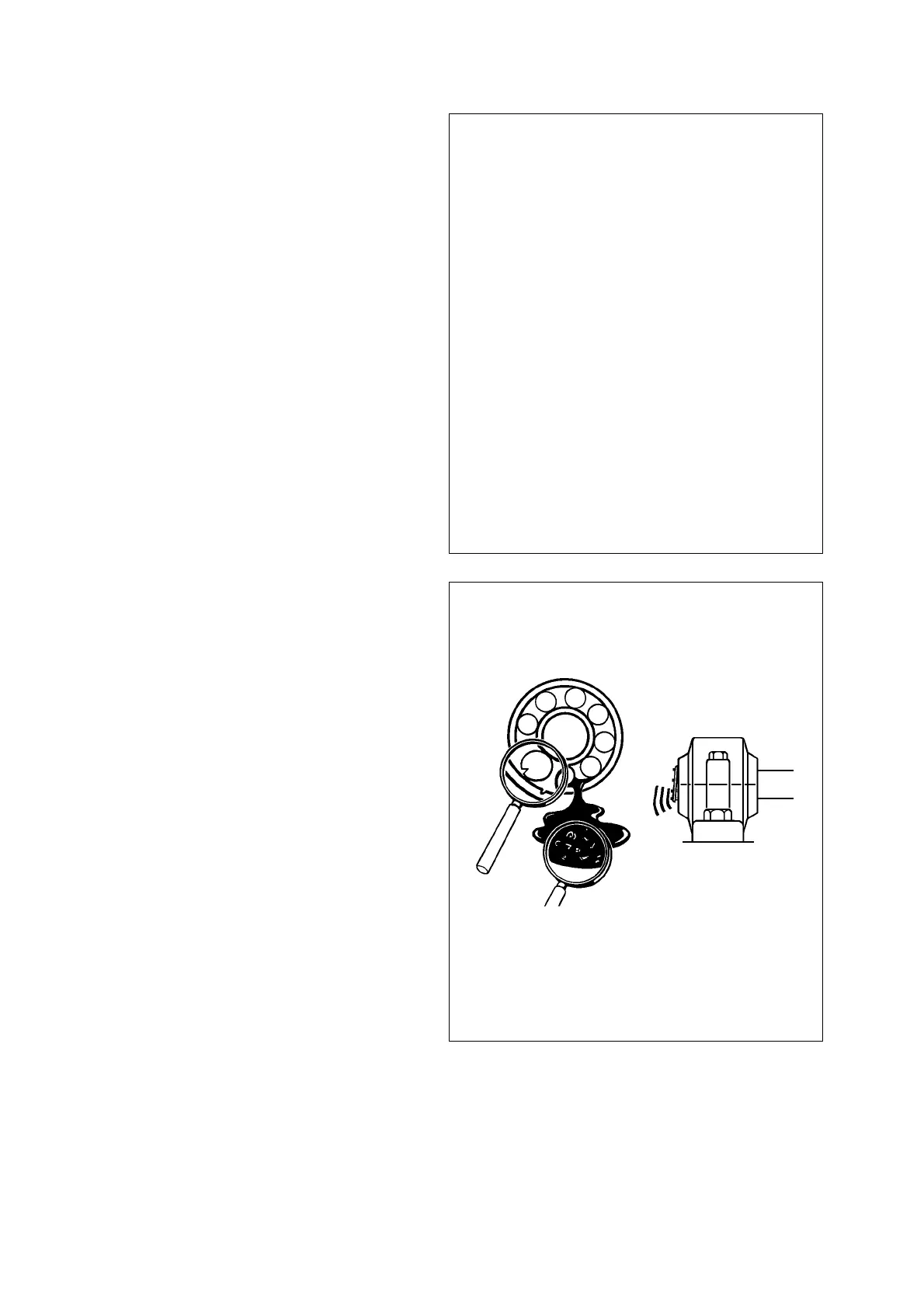

Fig. 5
Fig. 6
What causes the
high reading?
The maintenance
crew needs a
correct answer !!
Train All Operations:
1 Selection of measuring points
2 Obtaining basic bearing data
3 Normalized and unnormalized
readings with all transducer types
4 Installation of adapters
5 Preparation of follow-up forms
6 Recording of readings
7 Recognition of typical patterns
(earphone mode)
8 Probing for interference
9 Lubrication test
