VENTILATION, HEATING, AIR CONDITIONING AND AIR PURIFICATION SYSTEM
9-7
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16

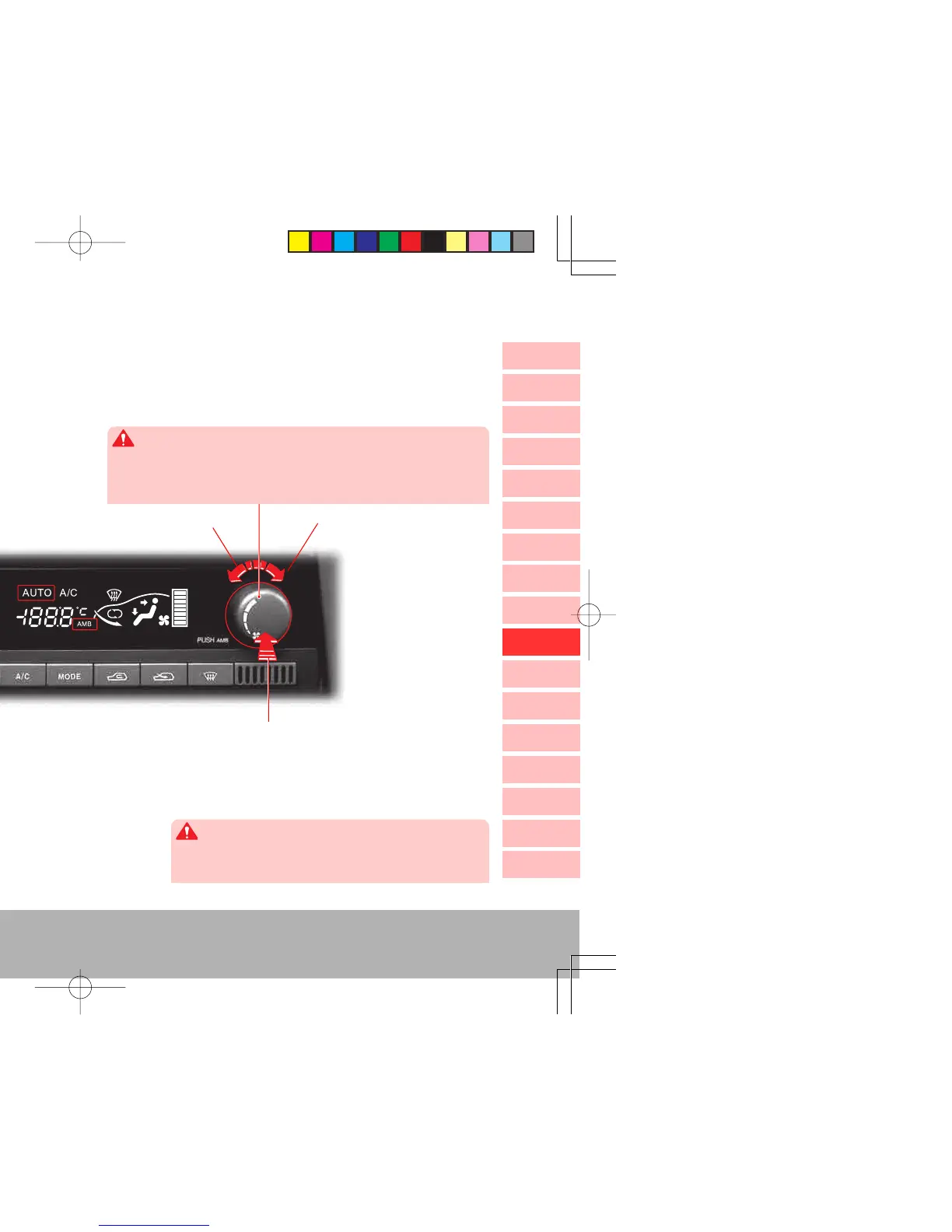

Low fan speed High fan speed
Fan Speed Control Switch
To control the fan speed, turn this switch. When turning
this switch in the Auto mode, the “AUTO” indicator goes
out and the system is changed to the manual mode.
Cool
Hot
Temperature Control Switch
To adjust the temperature, turn the
switch as required.
Auto Button
When you press the Auto button, the
“AUTO” indicator is displayed on the VFD
and the temperature of the passenger
compartment is automatically maintained
according to the set temperature. When
you press the Auto button during manual
operation mode, the system is changed
to the auto operation mode.
OFF Switch
To stop the air conditioner /
heater operation, press this
switch.
Ambient Temperature Display Button
When you press this button, the “AMB” indicator
appears and the ambient temperature is dis-
played on the VFD for about 5 seconds.
If the air conditioner switch is turned off, the air conditioner does
not work even when the fan switch is operated. However, the
air flows due to fan operation.
CAUTION
The actual ambient temperature may not be displayed
correctly due to engine heat or ground heat.
CAUTION
