AUTOMATIC HEATER / AIR CONDITIONER*
If the Auto button is pressed, the temperature of the passenger compartment is automatically maintained according to the set
temperature. By operating the relevant switch of the automatic air conditioner, you may also manually control the air condi-
tioner operation, air flow direction, fan speed and air source. To turn off the air conditioner and heater, press the “OFF” button.
The desired room temperate can be set up by turning the temperature control switch.
Manual Operation Mode
When you use the fan speed control switch, air conditioner
switch, recirculation switch or mode switch during the auto
operation mode, the “AUTO” indicator on the VFD goes out
and the air conditioner system can be controlled manually.
Auto Operation Mode
When you press the Auto button, the “AUTO” indicator is displayed
on the VFD and the temperature of the passenger compartment is
automatically maintained according to the set temperature.
When you press the Auto button during the manual operation
mode, the system is changed to the Auto operation mode.

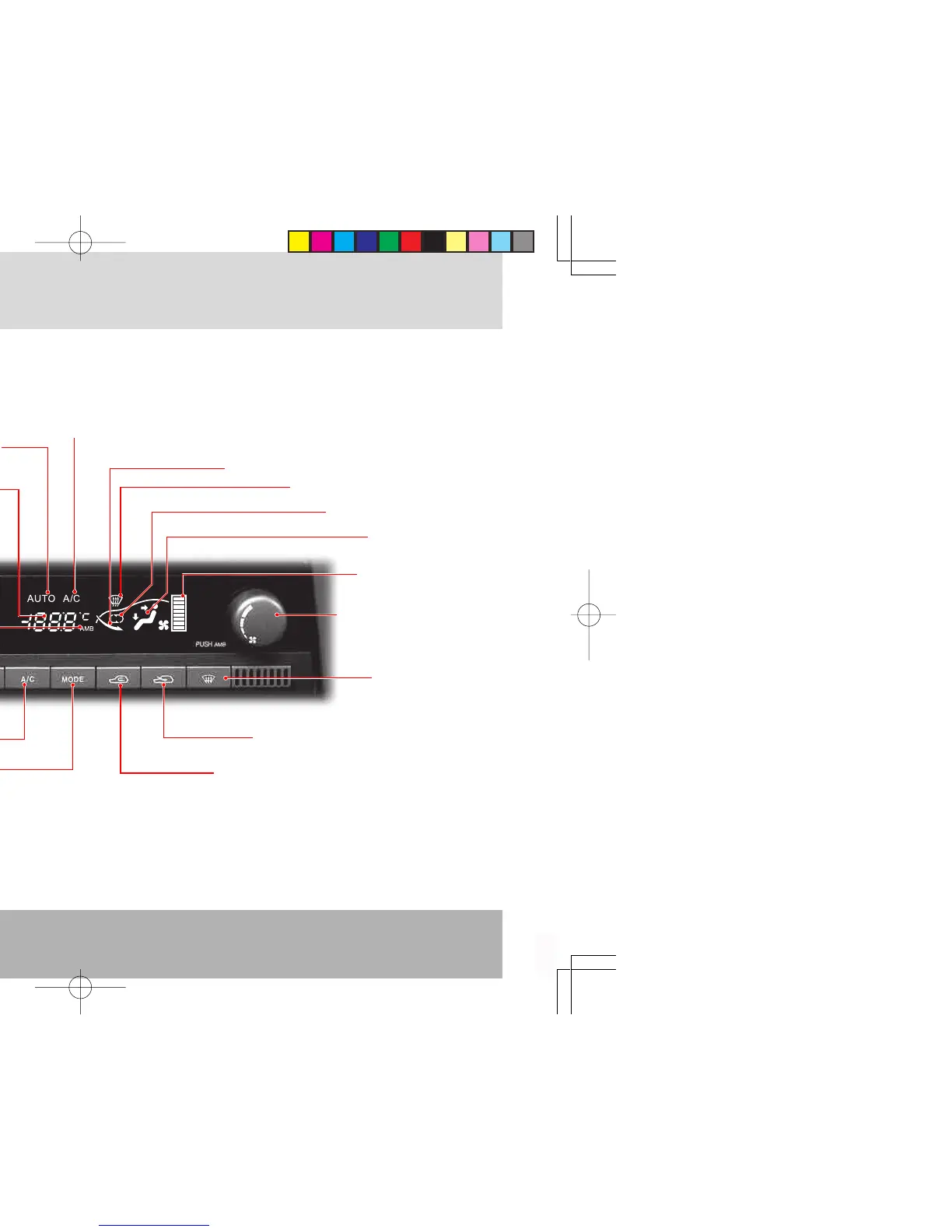

Auto button and
temperature
control switch
Temperature display
(ambient temperature, set temperature)
OFF switch
Defroster switch
Recirculation Switch
Mode switch
Air conditioner switch
Ambient temperature
display
Fan speed indicator
Air flow indicator
Auto mode indicator
Fresh air intake mode indicator
Recirculation indicator
Defroster indicator
Air Intake Switch
Interior temperature
and humidity sensor
Fan speed control
switch and ambient
temperature display but-
ton
A/C ON indicator
