9 - A Carrier-current System for domestIc Remote Control
The next four cycles represent the House Code and the last five cycles represent either the
Number Code (1 thru 16) or a Function Code (On, Off, etc.). This complete block, (Start Code,
House Code, Key Code) should always be transmitted in groups of 2 with 3 power line cycles
between each group of 2 codes. Bright and dim commands are exceptions to this rule and
should be transmitted continuously (at least twice) with no gaps between codes. See figure
below.
09-xcode
Example: the next figure shows the transmission of Key 2 to House Code A:
09-xex
Start
code
House
code
Key
code
2 cycles 4 cycles 5 cycles
A complete transmission code is composed of 2
identical blocks with no gap between them
Start
code
House
code
Key
code

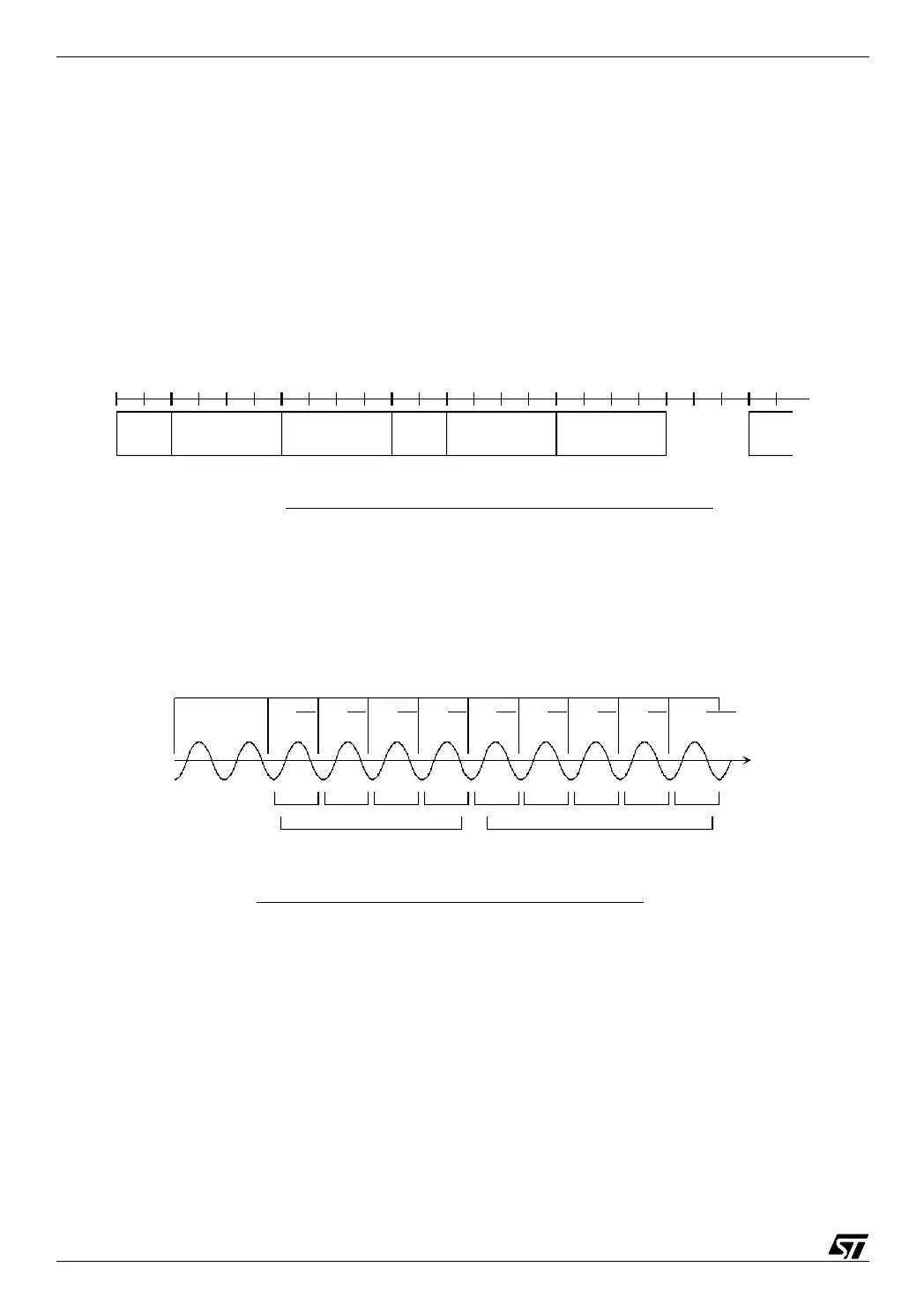

X-10 Technology : code transmission principle
minimum:
3 cycles
Start
code
X-10 Technology :Transmission example
Start code H1H1 H2H2 H4H4 H8H8 D1D1 D2D2 D4D4 D8D8 D16D16
1110011010011010100101
011011100
House code 'A' Key number '2'
