5.9.3 Firmware OVP

Firmware OVP is the slowest overvoltage protection. Therefore, it is recommended to set its threshold as the

lowest among the available over-voltage protections. It monitors the rectifier voltage and can be configured to

disable the device’s output and/or force the receiver to send an EPT packet when triggered. The threshold can be

adjusted from 0 to 16 V.

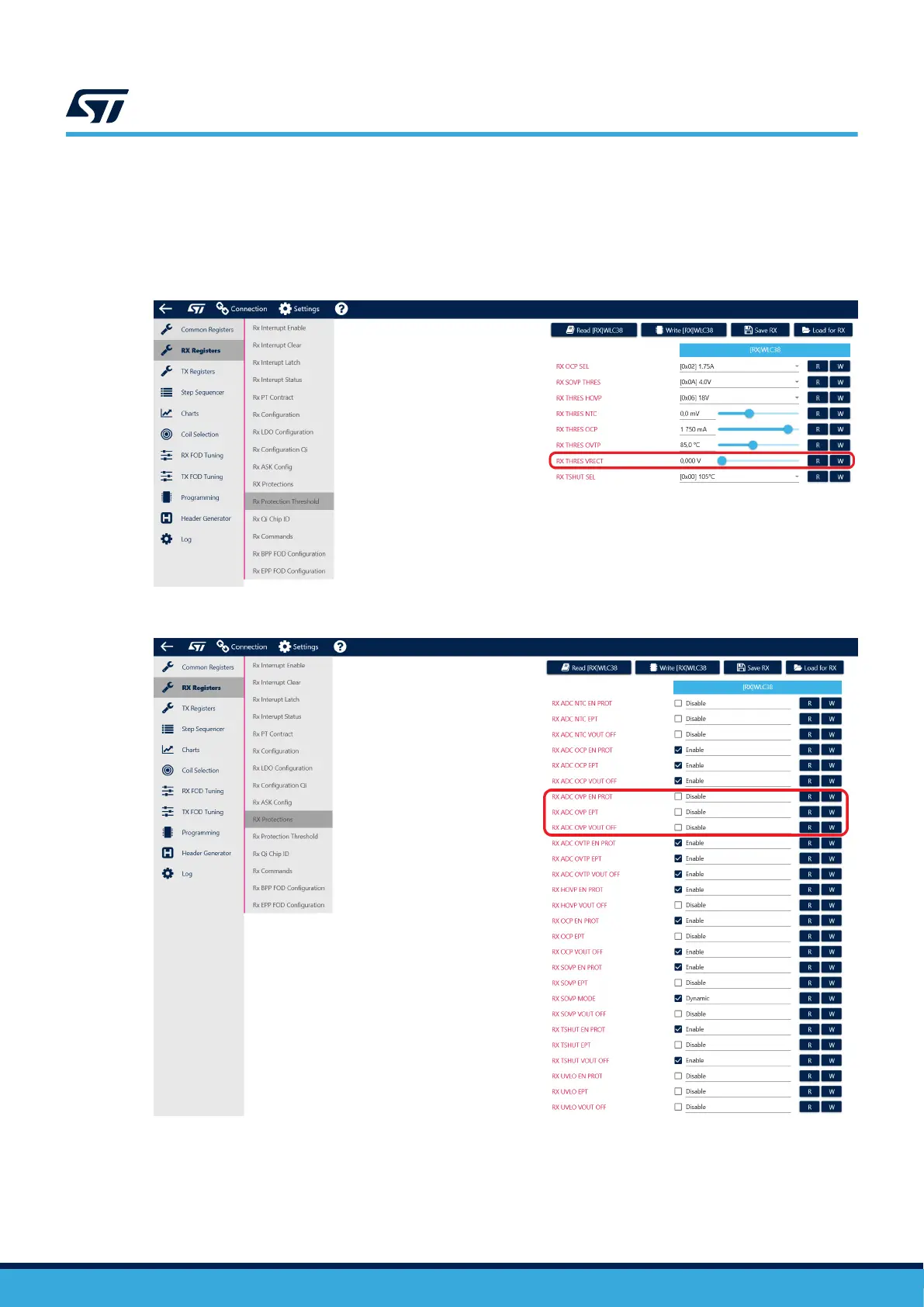

Figure 22. Firmware Rx protection threshold setting

Figure 23. Firmware Rx protection settings

5.9.4 Overcurrent protections (OCP)

The STWLC38 IC is equipped with 2 separate overcurrent protections – one operated by hardware and one

managed by the firmware.

UM3154

Protections overview

UM3154 - Rev 2

page 21/81
