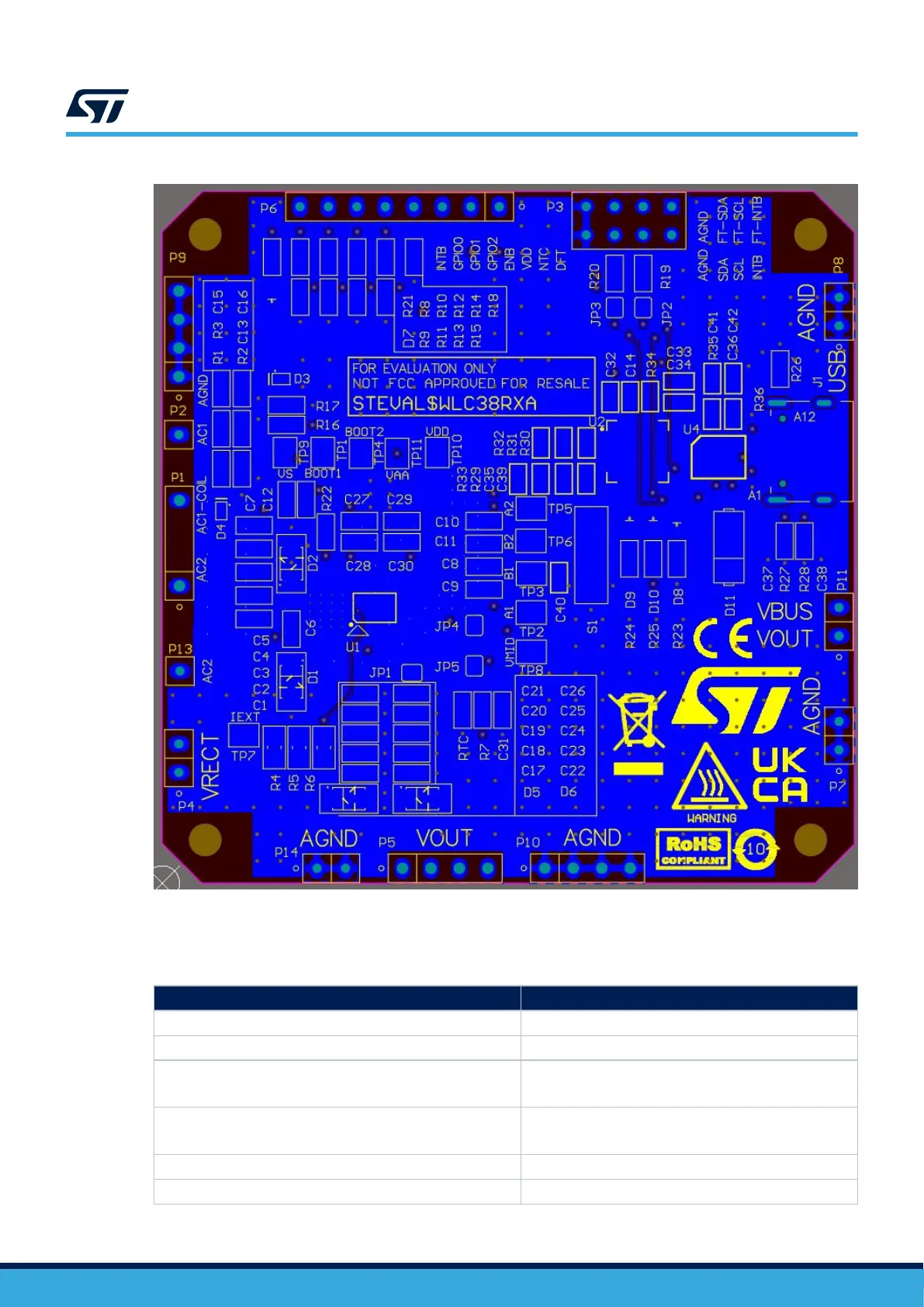

Figure 55. STEVAL-WLC38RX PCB layout bottom layer

8.3 STWLC38 default configuration

Table 9. STWLC38 default configuration

Parameter

Value

Output voltage (BPP mode, 5 W) 5 V

Output voltage (EPP mode, 15 W) 9 V

Rectifier mode

half-sync up to 160 mA

full-sync above 160 mA

Communication capacitors

COMA and COMB enabled up to 200 mA Iout

COMB enabled above 200 mA Iout

Input voltage loop (IVL) 4 V

Hardware over-current protection (HW OCP) 1.75 A

UM3154

STWLC38 default configuration

UM3154 - Rev 2

page 48/81
