ST STEVAL-WLC38RX - Schematic Diagrams; Figure 48. STEVAL-WLC38 RX Circuit Schematic

To Next Page

To Previous Page

6 Schematic diagrams

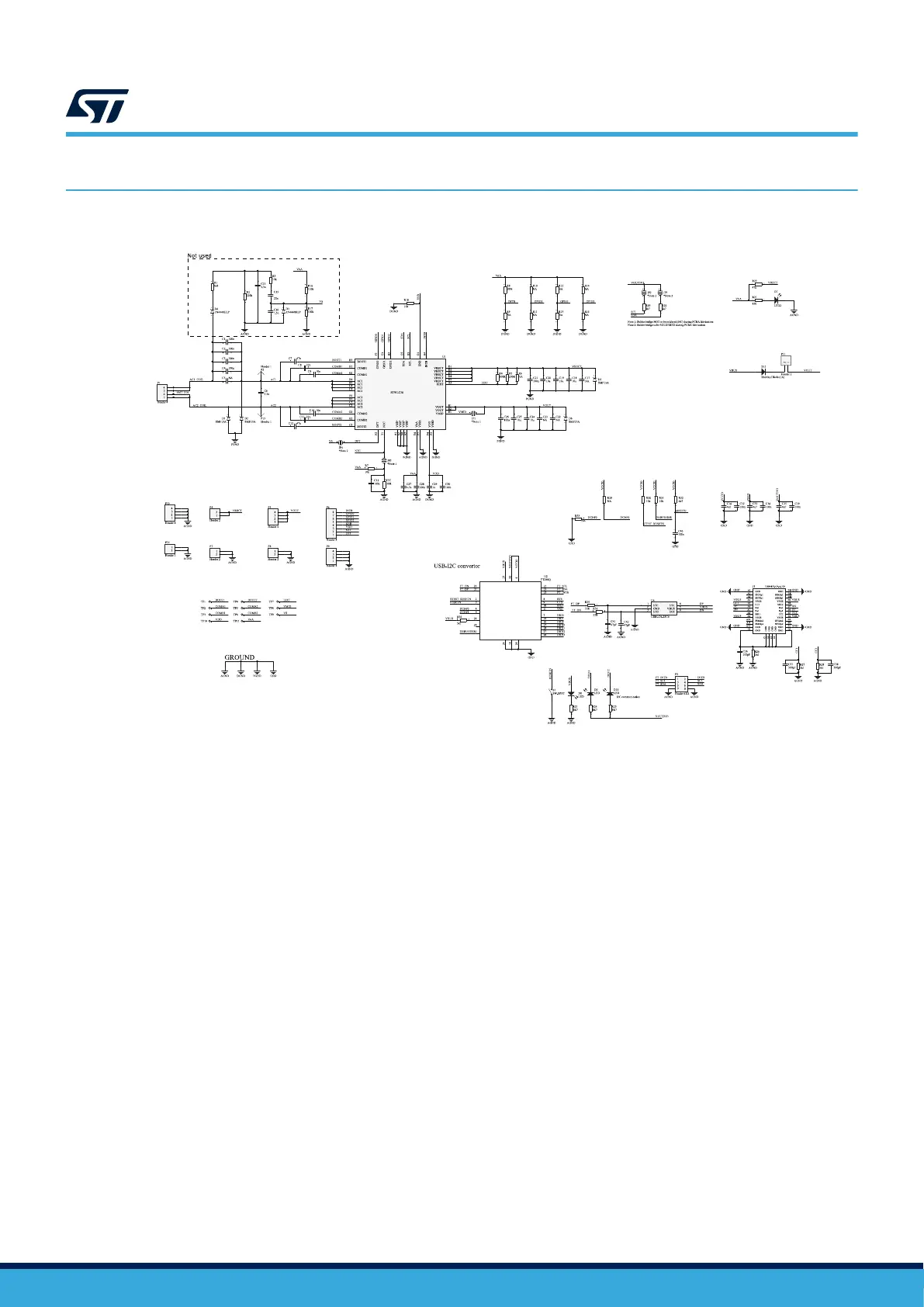

Figure 48. STEVAL-WLC38RX circuit schematic

UM3154

Schematic diagrams

UM3154 - Rev 2

page 40/81
