The hardware OCP causes the set action as send EPT or disable Vout. This protection is triggered by HW. The

threshold can be set to either 1.25, 1.5, 1.75 or 1.93 A.

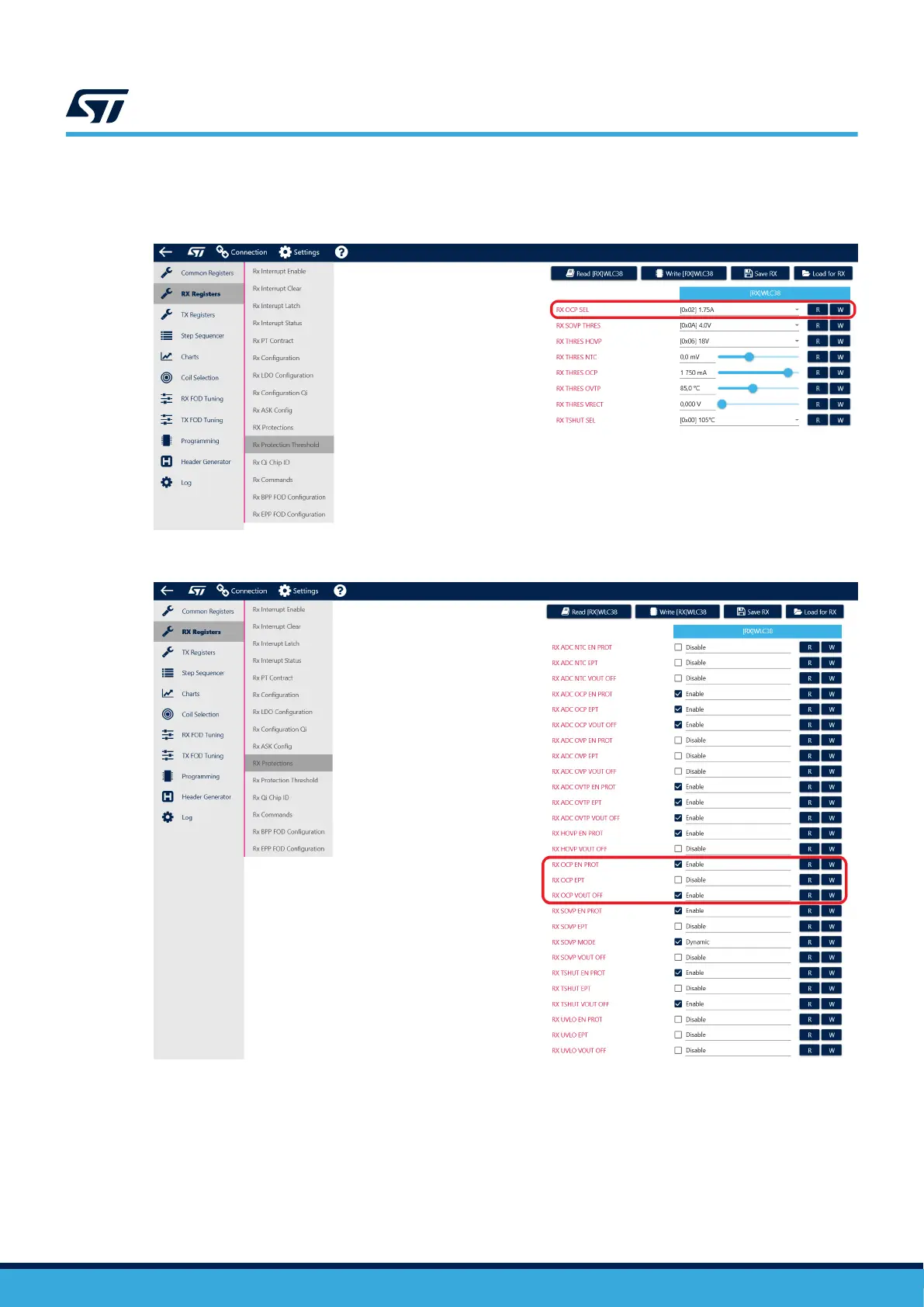

Figure 24. Over current protection threshold setting

Figure 25. Hardware overcurrent Rx protection selection

The firmware OCP threshold can be adjusted from 0 to 1.75 A. It can also be configured to disable the device’s

output and/or force the receiver to send an EPT packet when triggered.
