ST STEVAL-WLC38RX - Table 11. Maximum Power for Z-Axis Gaps; Figure 58. Efficiency Curves for Various Misalignments in the Z-Axis

81 pages

Save Page as PDF

To Next Page

To Previous Page

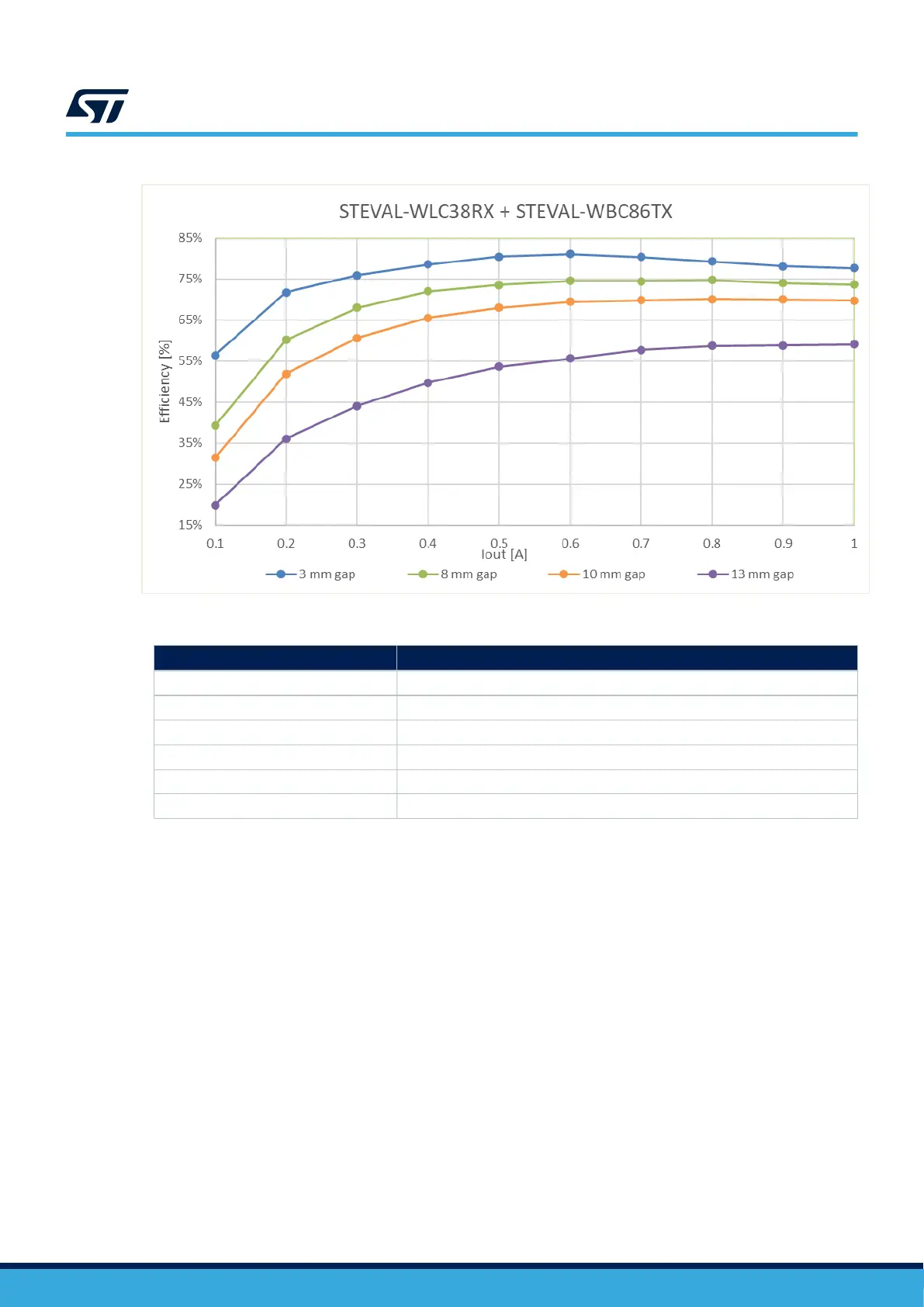

Figure 58. Efficiency curves for various misalignments in the Z-axis

Table 11. maximum power for Z-axis gaps

Z gap [mm]

Maximum power(1) [W]

4 5.002

6 5.000

8 5.001

11 5.000

13 5.000

16 3.093

(1) The maximum power is also limited by the transmitter, as STEVAL-WBC86TX is only BPP compatible

ARC mode also improves performance at higher Z-axis distances. The following waveform shows how STWLC38

is able to establish communication even at a high Z-distance (16 mm), and after reaching the default 6 V VRECT

threshold, switches to a different operating mode where output can be enabled.

UM3154

Typical performance characteristics

UM3154 - Rev 2

page 52/81
